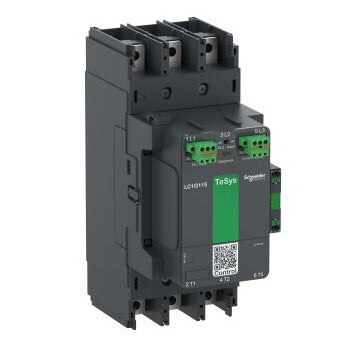

Schneider Electric LC1G185EHEA Contactor High Power TeSys Giga Advanced Version AC-3 440V 185A 48-130VAC/DC Coil

Product Description

The Schneider Electric LC1G185EHEA is a high power contactor designed for AC-3 applications up to one hundred eighty-five amperes and one hundred ten kilowatts at four hundred forty volts. This contactor features a wide band low consumption electronic coil operating at forty-eight to one hundred thirty volts AC or DC. The contactor includes embedded reliability with one normally open and one normally closed auxiliary contact block. It supports demanding applications with operating rates of up to six hundred cycles per hour.

• High reliability with five million mechanical durability cycles.
• Local and remote contact wear diagnosis included.
• Compact dimensions for space savings in panels.

Product Highlights

This contactor is engineered for maximum performance and is suitable for both local and remote monitoring, ensuring operational integrity through built-in indicators for health and alarms.

Product Information

Standard Information

• Brand: Schneider Electric
• Catalog Number: LC1G185EHEA

Technical Specifications

• Coil Voltage: Forty-eight to one hundred thirty V AC/DC
• Connection: Bolted power circuit connections with accessible spring terminals
• Contact Configuration: Three normally open contacts
• Mounting: Plate mountable
• Special Features: Built-in bidirectional peak limiting
• Country of Origin: United States
• RoHS Compliance: Yes
• Certification: CE, CB, CCC, cULus, EAC, Marine
