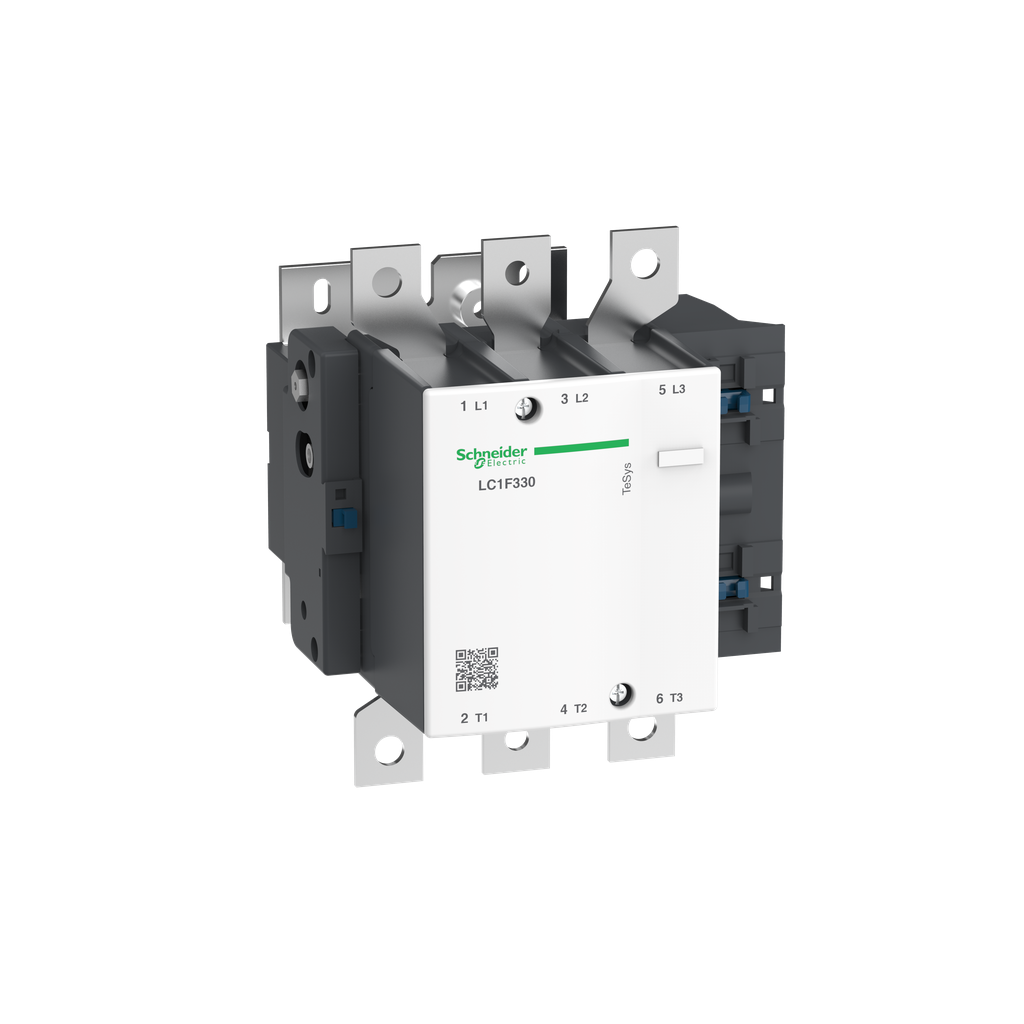

Schneider Electric LC1F330 Square D LC1F330 600 VAC 330 Amp 3-Pole 1NO Panel Mount Full Voltage Non-Reversing IEC Contactor

Product Description

Schneider Electric LC1F330 is a TeSys F contactor designed for motor applications. This three-pole contactor supports up to three normally open contacts and handles 330 amps at 1000 volts in AC-3 applications. It is suitable for powering motors that reach up to 160 kilowatts at 400 volts. The contactor does not include a coil for flexibility in selection and installation, which can be ordered separately. It provides secure bolt terminals compatible with bars or cables with lugs, allowing for a reliable connection.

• High operating efficiency of up to 2400 cycles per hour.
• Designed for environments up to 55 degrees Celsius.
• Compatible with various add-on blocks and accessories.

Product Highlights

Multi-standard certified and compliant with Green Premium regulations. Ideal for use in diverse industrial settings.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Catalog Number: LC1F330

Technical Specifications

• Type: Contactor
• Operating Temperature: -5 to 55 degrees Celsius
• Voltage: 1000 Volt
• Weight: 20.94 lb
• Dimensions: 206 mm height, 213 mm width, 219 mm depth
