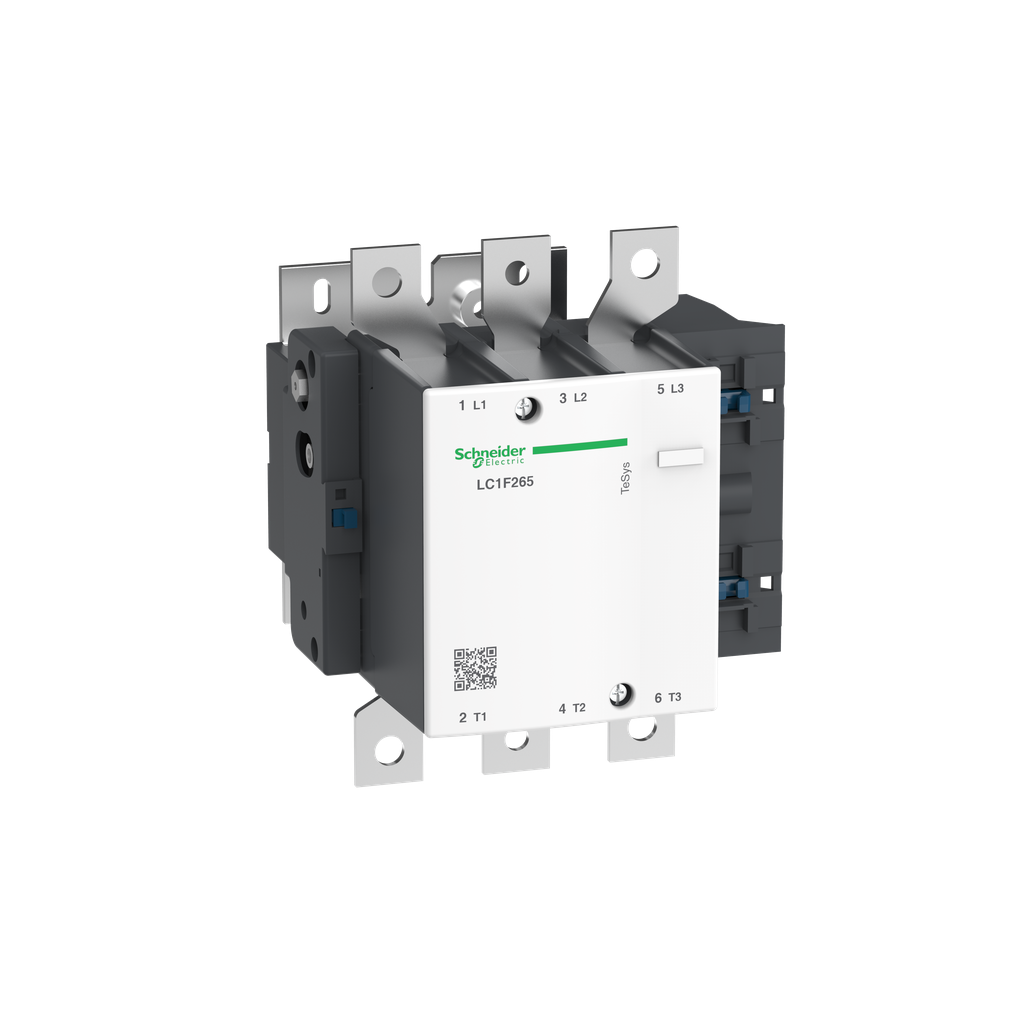

Schneider Electric LC1F265G7 Contactor 600 VAC 265 Amp 3-Pole 1NO

Product Description

The Schneider Electric LC1F265G7 is a TeSys F contactor designed for motor applications. It operates with three poles and is rated at 265 Amps for 1000 Volts in AC-3 configurations. The product supports motor usage up to 132 kW at 400 Volts. This contactor features a low sealed consumption coil operating at 120 or 127 Volts across a frequency range from 40 to 400 Hertz. It includes bolt terminals suitable for bars or cables with lugs, making installation straightforward. With a capability of handling operating rates of up to 2400 cycles per hour, it is suitable for environments that can reach temperatures of up to 55 degrees Celsius.

• Three poles (3NO), rated at 265 Amps for 1000 Volts AC-3.
• Low sealed consumption coil rated at 120/127 Volts and compatible with various frequencies.
• Certified for multiple standards including IEC, UL, CSA, CCC, EAC, and Marine.

Product Highlights

This contactor is ideal for inductive and resistive current applications as part of IEC contactor and starter systems.

Product Information

Standard Information

• Type: Non-reversing contactor
• Brand: Schneider Electric

Technical Specifications

• Range: TeSys
• Voltage: 1000 Volts
• Wattage: 37 Watts AC-1 - 21 Watts AC-3
• Coil Voltage: 120 Volts @ 40/400Hz AC
• Contact Rating: Up to 600VAC (UL), 265A inductive, 350A resistive
• Operating Cycles: 2400 cycles/hour at 131°F (55°C)
• Country of Origin: Czech Republic
• Operating Temperature: -5°C to 55°C
