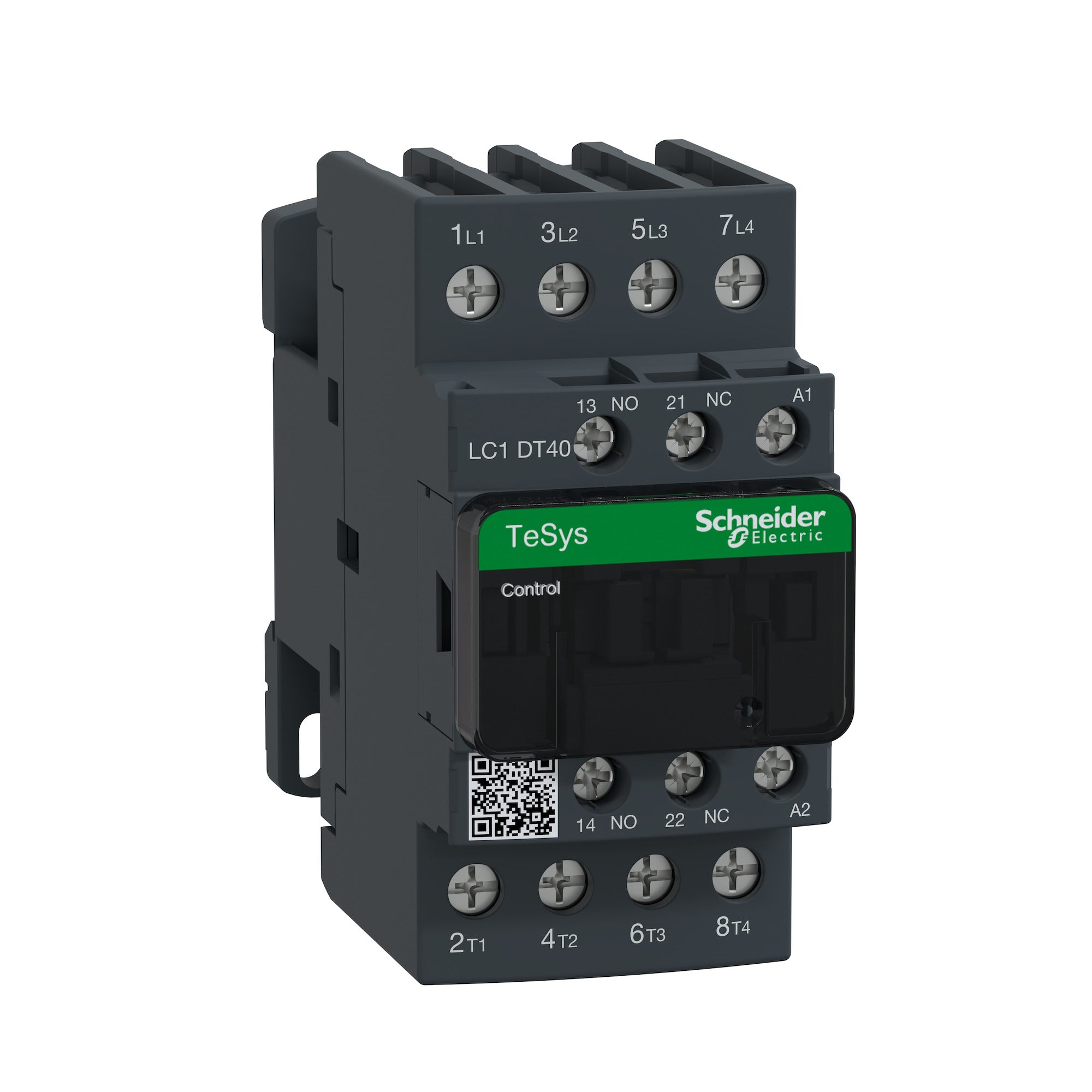

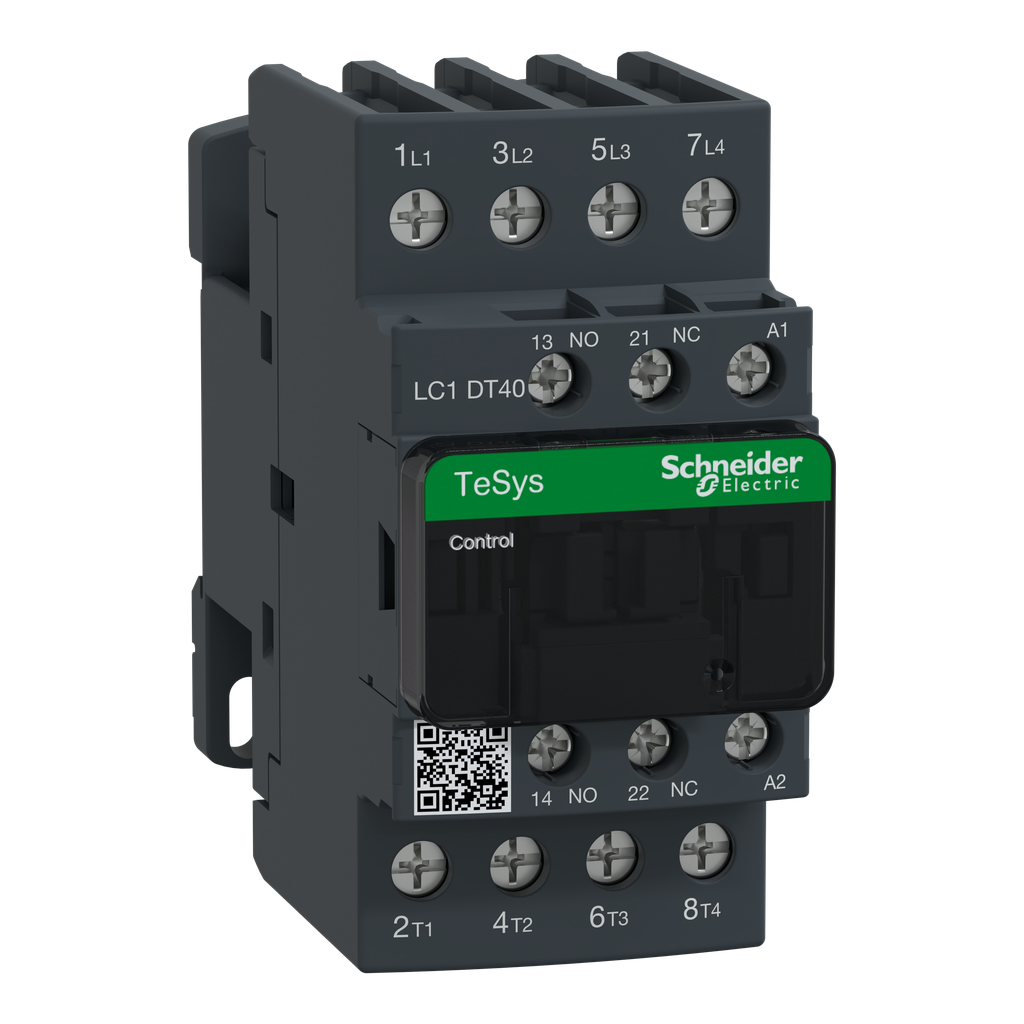

Schneider Electric LC1DT40G7 Square D 600 VAC 40 Amp 4-Pole 1NO 1NC Screw Terminal Full Voltage Non-Reversing IEC Contactor

Product Description

Schneider Electric LC1DT40G7 is a versatile contactor designed for control systems. This IEC contactor is suitable for motor starters across various applications. The contactor supports inductive motor loads up to one hundred fifty full-load amps, and resistive loads up to two hundred amps. The device offers four normally open power contacts, with a resistive load rating of forty amps. It features a coil voltage of one hundred twenty VAC and operates at fifty or sixty hertz.

• Four pole configuration with four normally open contacts
• Mountable on DIN rail or directly to a panel
• Includes one normally open and one normally closed auxiliary contact

Product Highlights

Designed for easy integration, the LC1DT40G7 meets various operational requirements. Its compact design and built-in features facilitate efficient performance in motor control applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: LC1DT40G7
• Voltage Rating: 600 VAC
• Current Rating: 40 Amps
• Width: 45 mm
• Height: 91 mm
• Depth: 99 mm
• Weight: 0.94 lbs
• Coil Voltage: 120 VAC 50/60 Hz
• Contact Configuration: 1 NO + 1 NC, 4 NO
• Country of Origin: Indonesia
