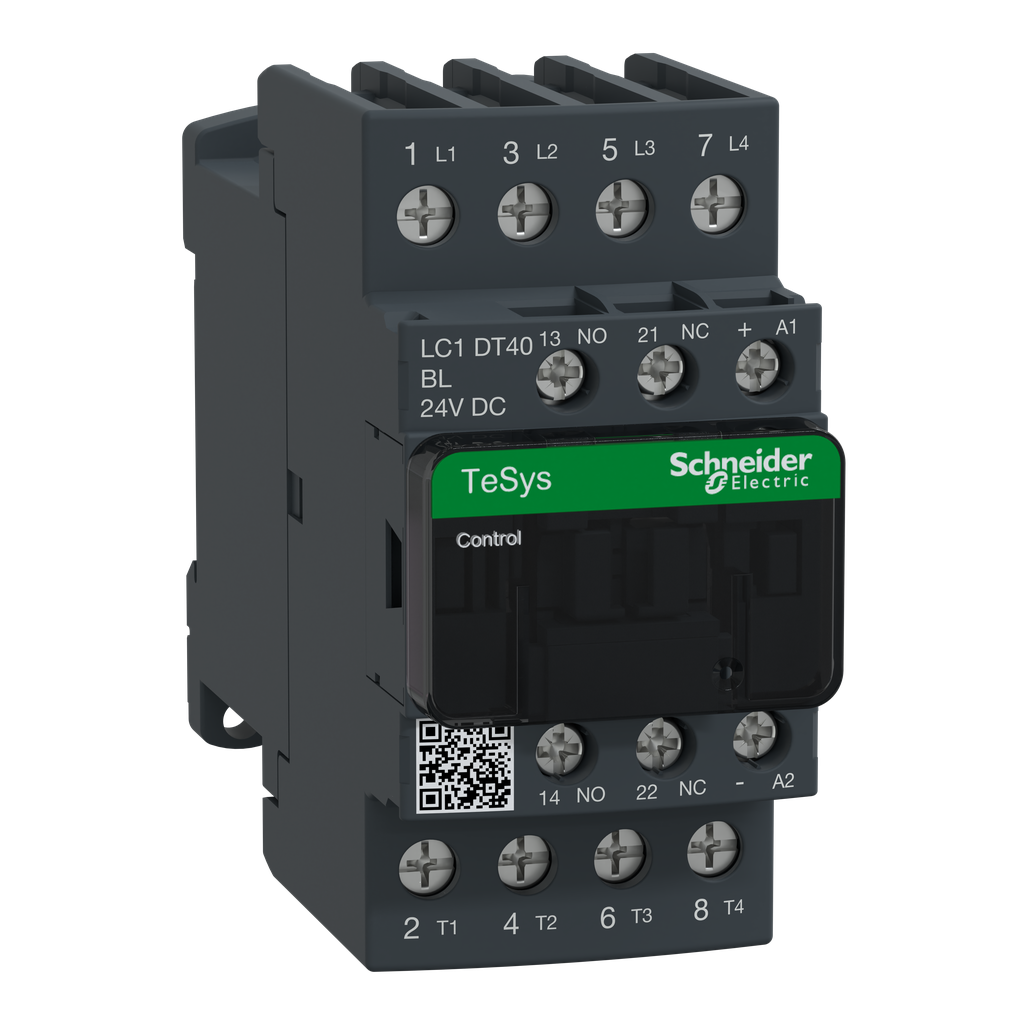

Schneider Electric LC1DT40BL IEC Contactor 40A Resistive 4 Pole

Product Description

Schneider Electric offers the LC1DT40BL IEC contactor designed for versatile integration into various control systems. This contactor is suitable for creating motor starters for diverse applications and is part of the TeSys D series. It can handle inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. The LC1DT40BL features a four-pole design with a four normally open power contacts configuration for reliable operation.

• Low consumption 24 VDC coil with transient suppressor module
• Built-in one normally open and one normally closed auxiliary contact
• Compatible with both DIN rail and direct panel mounting

Product Highlights

This contactor is compact, measuring three point five eight inches in height, one point seven seven inches in width, and four point two one inches in depth, with a weight of zero point ninety-four pounds. It is certified to meet UL, CSA, IEC, CCC, EAC, and Marine standards. Its compliance with RoHS/REACh norms makes it a Green Premium product.

Product Information

Standard Information

• Catalog Number: LC1DT40BL
• Brand: Schneider Electric

Technical Specifications

• Type: Contactor
• Voltage: 300 Volt
• Wattage: 3.2 Watt AC-1
• Coil Voltage: 24 V DC
• Weight: 0.94 lb
• Height: 3.58 inches
• Width: 1.77 inches
• Depth: 4.21 inches
• Contact Configuration: 1 NO + 1 NC; 4 NO
• Mounting: DIN rail or panel
• Application: Resistive load
• Warranty Length: 18 months
