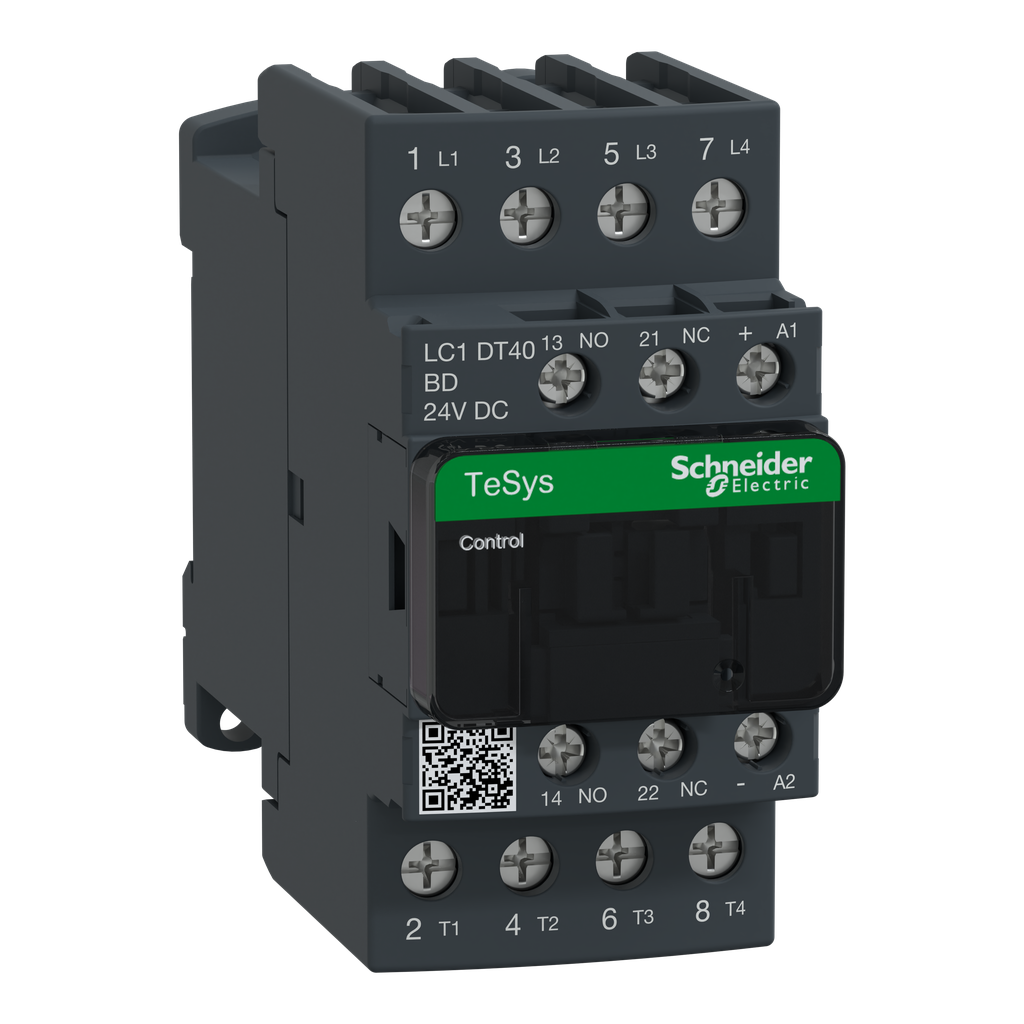

Schneider Electric LC1DT40BD Full Voltage Non-Reversing Contactor 40A 600 VAC 4-Pole

Product Description

Schneider Electric LC1DT40BD is a full voltage non-reversing IEC contactor rated for 40 amps at six hundred volts alternating current. This device has four normally open power contacts, making it suitable for various motor applications. Its compact design allows for mounting on a DIN rail or directly to a panel. It includes a twenty-four volt direct current coil and comes with a built-in transient suppressor module to protect against voltage spikes.

• Rated for inductive loads up to 150 full-load amps and resistive loads up to 200 amps
• Features one normally open and one normally closed auxiliary contact
• Complies with multiple international standards including UL, CSA, and IEC

Product Highlights

This contactor is designed for effective integration into control systems. The extensive accessory line available meets a wide range of application needs.

Product Information

Standard Information

• Catalog Number: LC1DT40BD
• Brand: Schneider Electric

Technical Specifications

• Height: 3.58 inches
• Width: 1.77 inches
• Depth: 4.21 inches
• Weight: 0.94 lbs
• Voltage: 300 volts
• Coil Voltage: 24 V DC
• Contact Configuration: 1 NO + 1 NC, 4 NO
• Operating Temperature: -40 to 70 degrees Celsius
• Country of Origin: United States
• Warranty: 18 months
