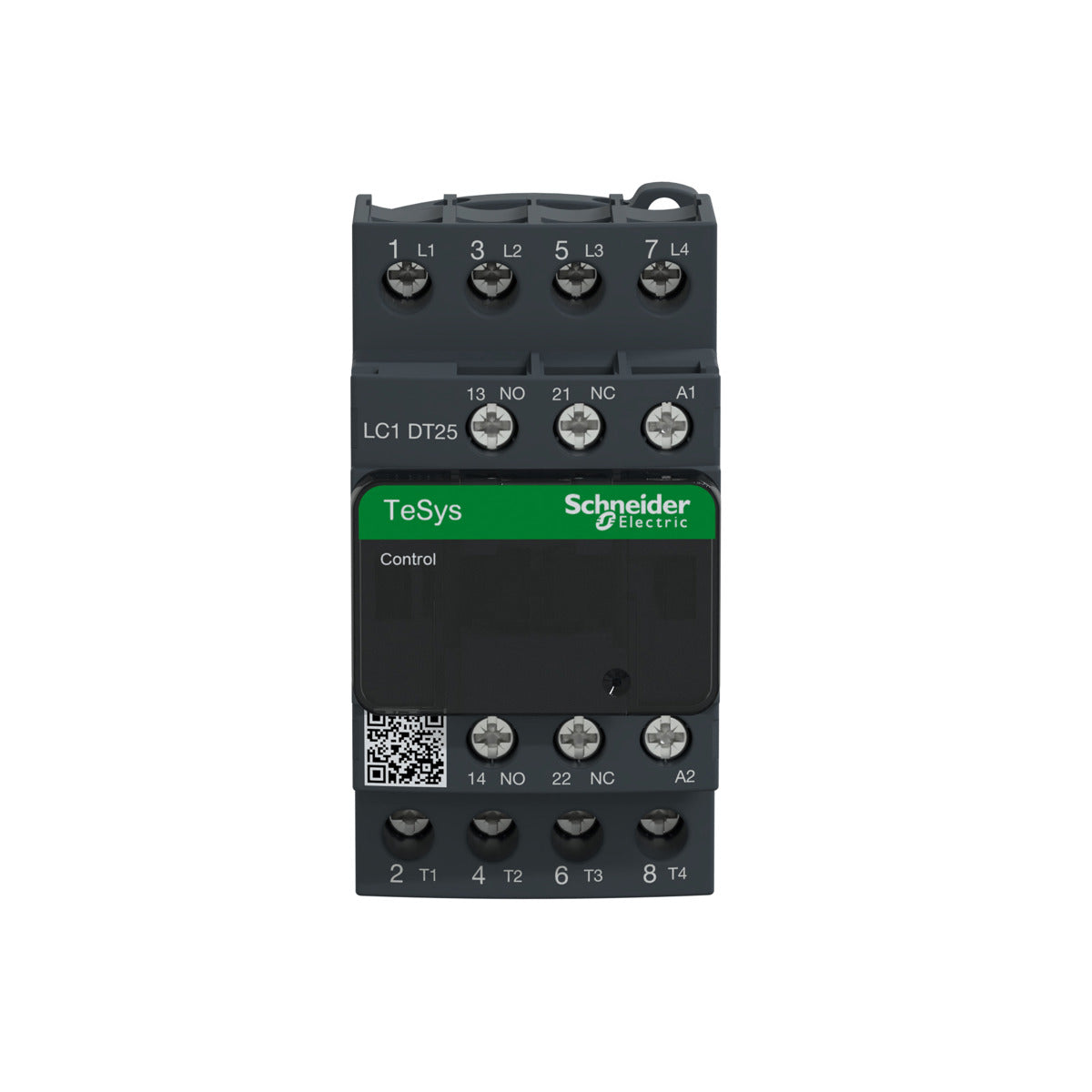

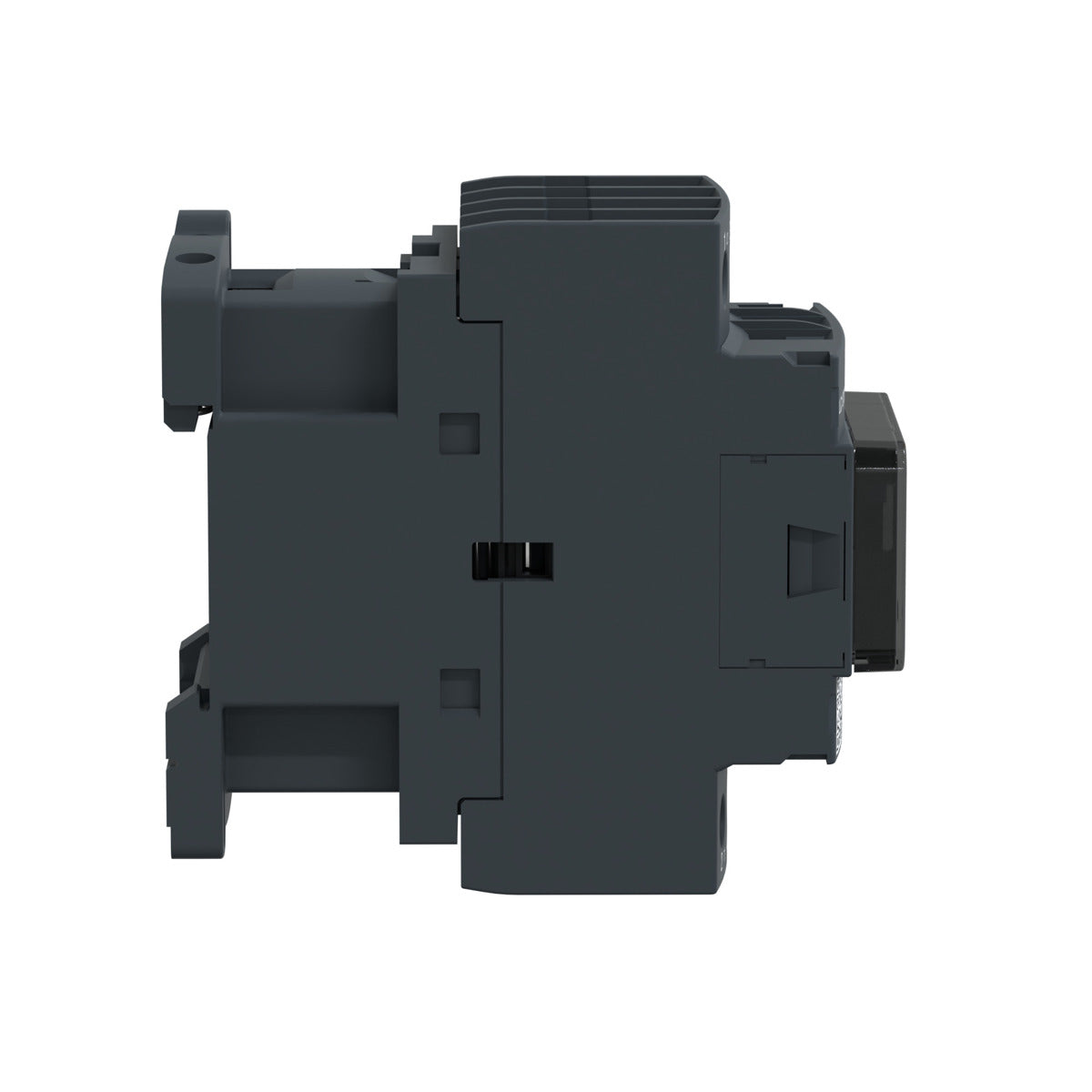

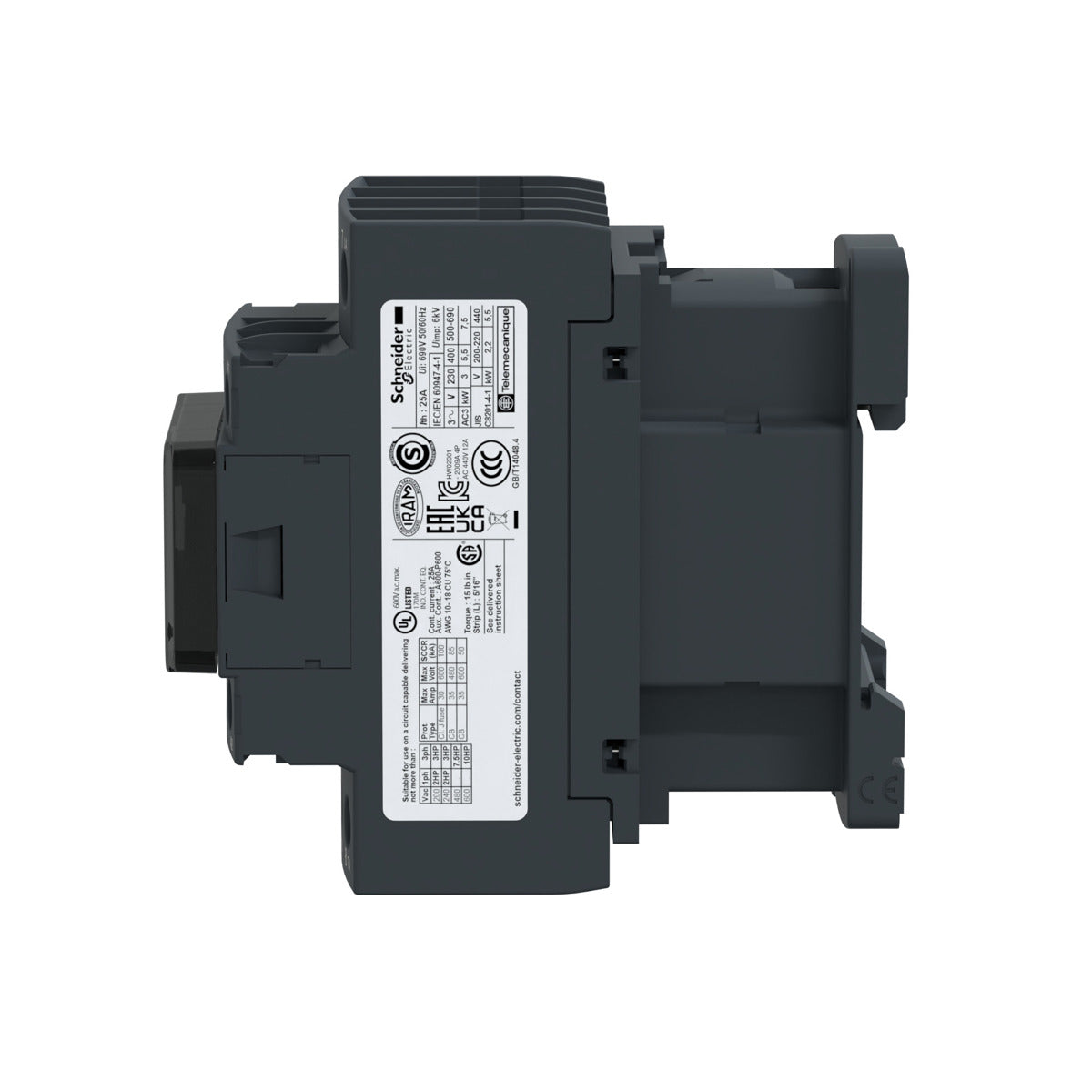

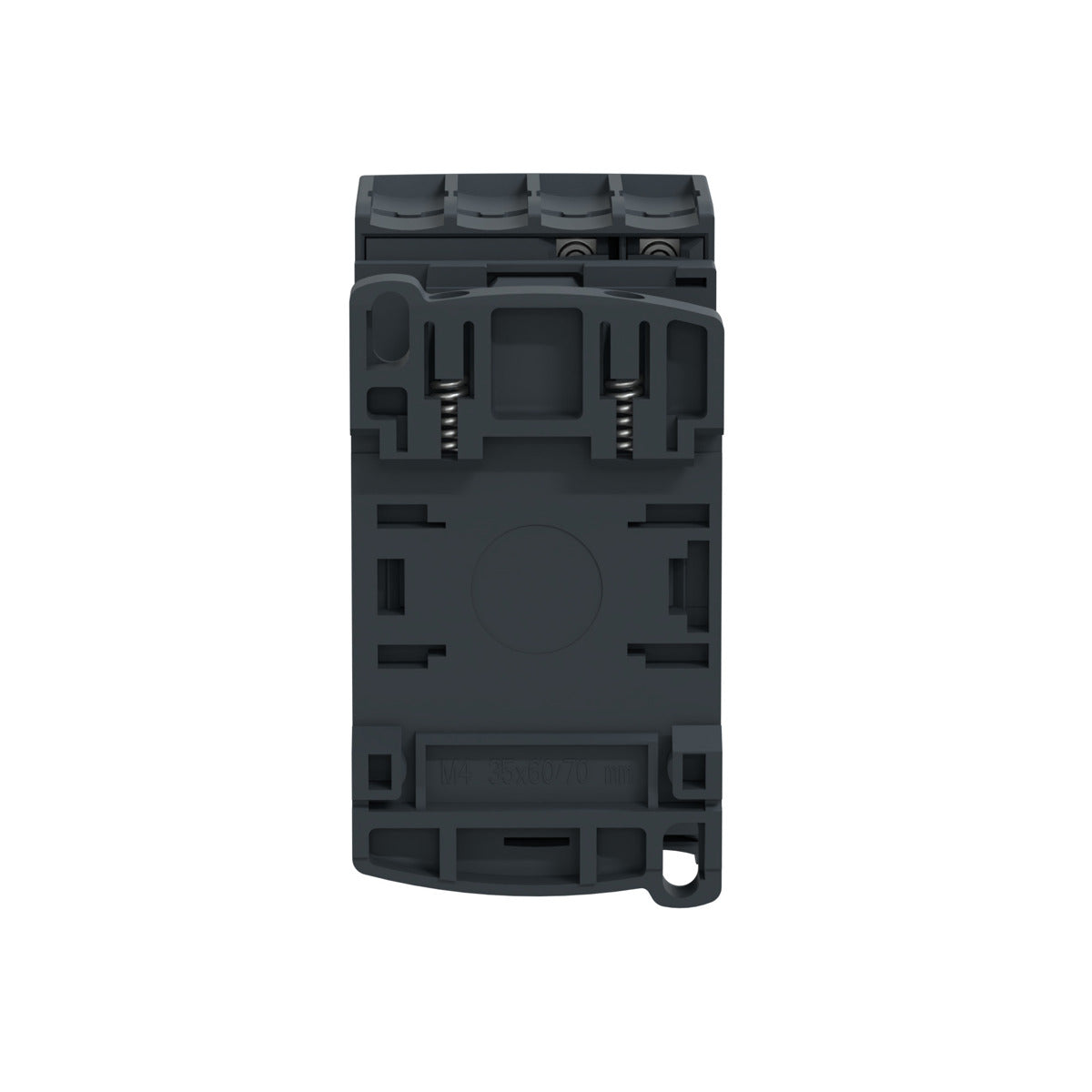

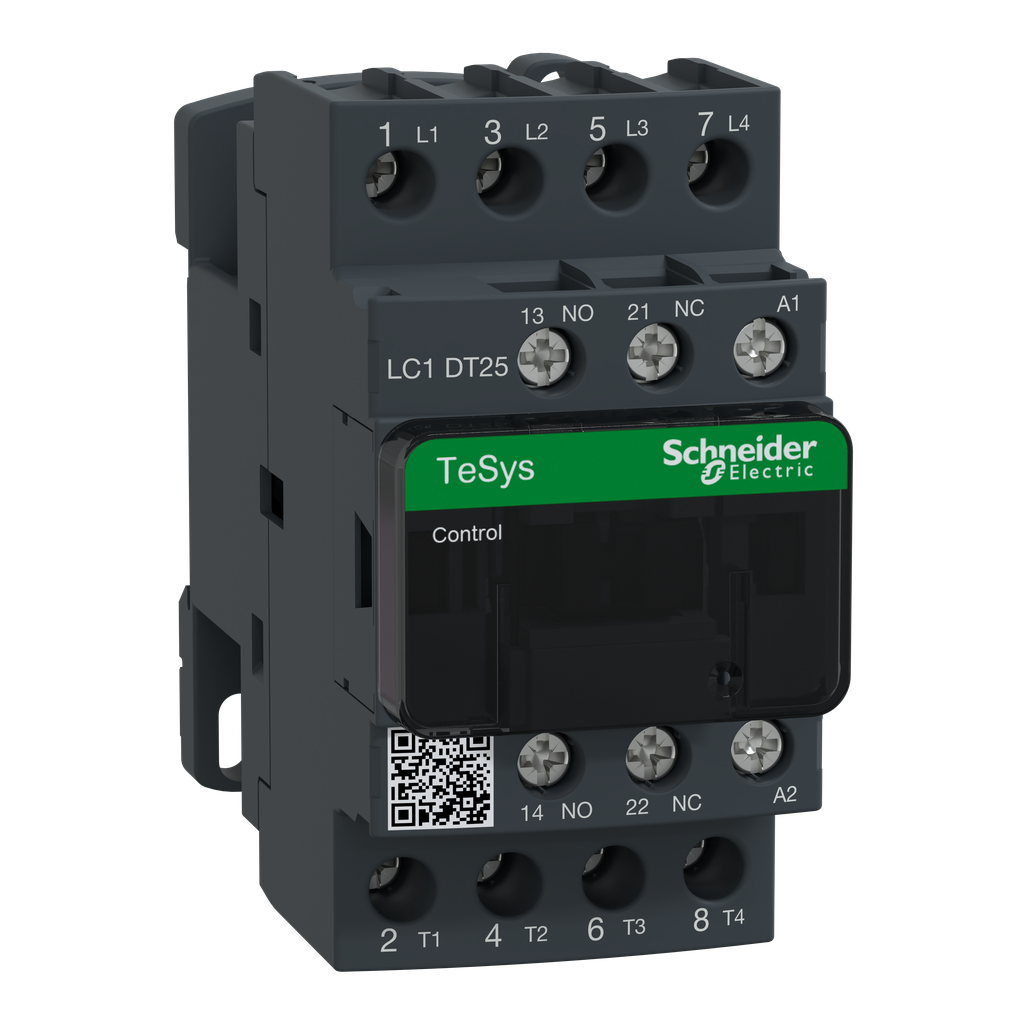

Schneider Electric LC1DT25U7 Square D 600 VAC 25 Amp 4-Pole 1NO 1NC Screw Terminal Full Voltage Non-Reversing IEC Contactor

SKU: LC1DT25U7
Availability: In Stock
truck-svgrepo-com

Ships via Freight in 3-5 Business Days

$214.01
$214.01
Manuals:
LTL Delivery

This product weighs 392 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

The Schneider Electric LC1DT25U7 is a 600 VAC, 25 amp, 4-pole contactor. It is designed for easy integration into control systems and is ideal for creating motor starters in various applications. This contactor can manage inductive motor loads up to one hundred fifty full-load amps and resistive loads up to two hundred amps.

  • Four normally open power contacts with a rated load of twenty-five amps.
  • Supplied with a 240 VAC, 50/60 Hz coil.
  • Compatible with DIN rail and panel mounting.

Product Highlights

This contactor features built-in auxiliary contacts, including one normally open and one normally closed. The contacts are designed for durability and reliability.

Product Information

Standard Information

  • Brand: Schneider Electric
  • MPN: LC1DT25U7

Technical Specifications

  • Catalog Number: LC1DT25U7
  • Size: 45 mm width, 85 mm height, 92 mm depth
  • Voltage: 240 V AC
  • Wattage: 1.56 Watts
  • Weight: 0.80 lbs (0.365 kg)
  • Operating Temperature: -40 to 70 degrees C
  • Contact Configuration: 1 NO + 1 NC, 4 NO
  • Certifications: UL, CSA, IEC, CCC, RoHS/REACh
