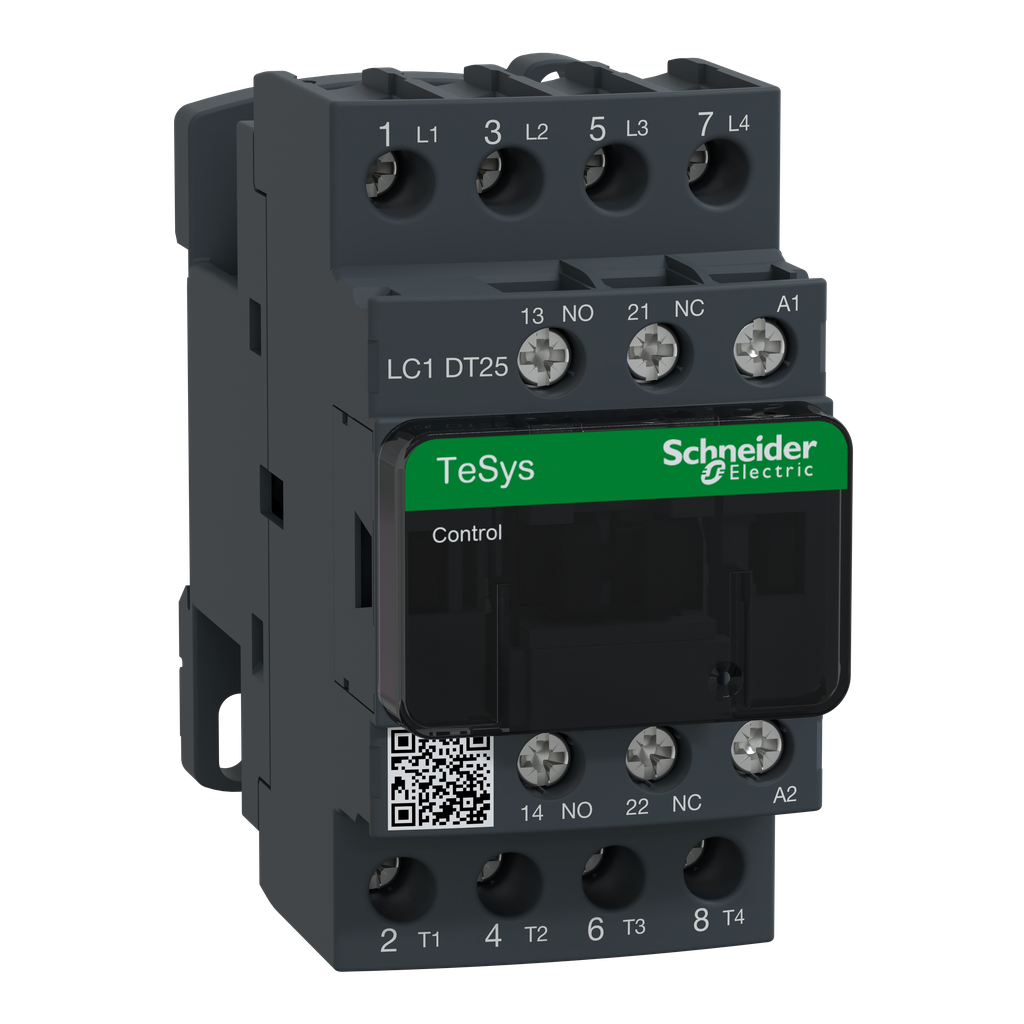

Schneider Electric LC1DT25F7 Square D 600 VAC 25 Amp 4-Pole 1NO 1NC Screw Terminal Full Voltage Non-Reversing IEC Contactor

Product Description

Schneider Electric LC1DT25F7 is a 4-pole IEC contactor rated for 600 VAC and 25 Amp. This device is essential for motor control in various applications. With the ability to create motor starters, it assists in managing both inductive and resistive loads. It can be mounted on a DIN rail or directly onto a panel, offering versatility in installation.

• Rated for 600 VAC, designed for industrial settings.
• Includes four normally open power contacts.
• Built-in one normally open and one normally closed auxiliary contact.

Product Highlights

The LC1DT25F7 contactor is suitable for a range of motor control applications, providing reliable operation and effective load management for industrial devices.

Product Information

Standard Information

• Catalog Number: LC1DT25F7
• Brand: Schneider Electric

Technical Specifications

• Voltage: 600 VAC
• Current Rating: 25 Amps
• Number of Poles: 4
• Coil Voltage: 110 VAC 50/60 Hz
• Dimensions: 3.35 inches (H) x 1.77 inches (W) x 3.62 inches (D)
• Weight: 0.80 lbs
• Mounting Type: DIN Rail or direct panel mount
• Certificates: UL, CSA, IEC, RoHS
