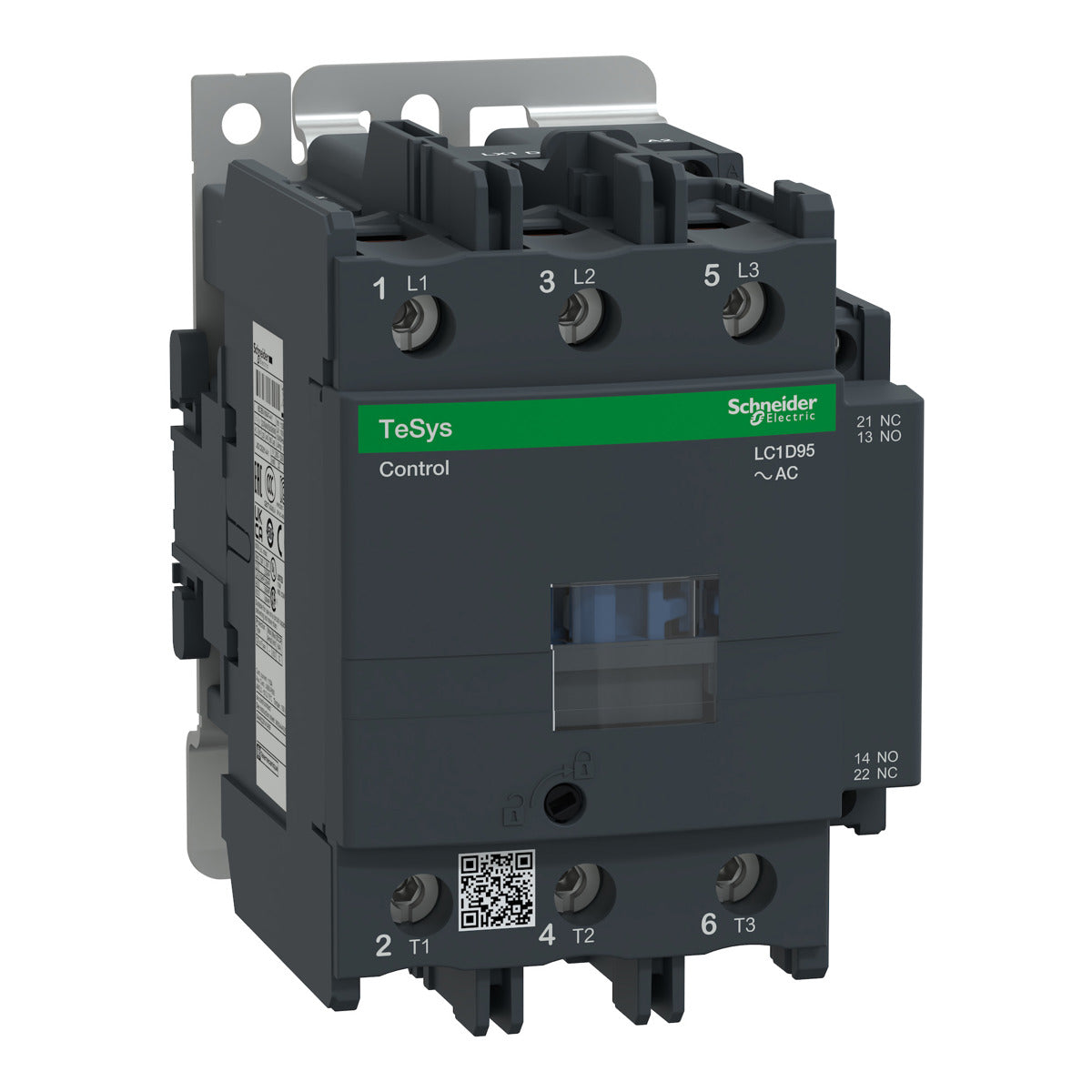

Schneider Electric LC1D95G7 IEC Contactor TeSys Deca Nonreversing 95A 60HP at 480VAC 3 Phase 3 Pole 3 NO 120VAC Coil

Product Description

The Schneider Electric LC1D95G7 is an IEC contactor designed for effective integration into control systems. It serves as a motor starter for various applications, managing inductive motor applications up to 150 full-load amps and resistive loads of 200 amps. This contactor is rated for 95A and can be mounted on DIN rail or directly to a panel.

• Rated for 60HP at 480VAC and 600VAC three phase.
• Includes a 120VAC 50/60Hz coil.
• Standard built-in contacts: one normally open and one normally closed.

Product Highlights

This contactor ensures reliable performance in motor control applications and comes with screw clamp terminals for easy wiring.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: LC1D95G7

Technical Specifications

• Catalog Number: LC1D95G7
• Application: Resistive load; motor control
• Coil Voltage: 120VAC 50/60Hz
• Contact Configuration: 1 NO + 1 NC; 3 NO
• Mounting: Rail Plate
• Operating Cycles: 25...400 Hz
• Country of Origin: Czech Republic
• Warranty Description: Contractual Warranty: 18 months
• Weight: 3.55 lbs
• Dimensions: 5 inches tall, 3.35 inches wide, 5.12 inches deep
