Schneider Electric LC1D80M7 Iec Contactor 80A 220V

Product Description

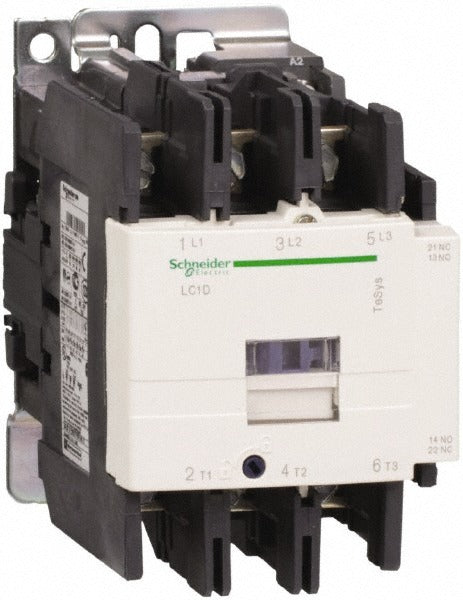

The SCHNEIDER ELECTRIC LC1D80M7 is a 3-pole, non-reversible IEC contactor rated at 80 amps at 440 Vac, designed for controlling motor loads and power circuits in industrial and commercial electrical systems. The coil operates at 220 Vac at 50/60 Hz, making it suitable for use on standard international and North American-compatible supply voltages. Auxiliary contact configuration includes one normally closed (NC) and one normally open (NO) contact. Licensed electricians and industrial maintenance technicians install this contactor in motor control centers, panel boards, and machine control enclosures. At 3.43 pounds and with a compact footprint, it fits standard DIN-rail and direct-mount applications.

The LC1D80M7 is used in 3-phase motor control applications across light industrial, commercial HVAC, pumping, and process equipment installations. Its non-reversible action makes it appropriate for single-direction motor loads such as compressors, fans, and pump motors. The 80-amp rating at 440 Vac supports medium-duty motor starters and combination starter assemblies. The included NC and NO auxiliary contacts allow integration with control circuits for status indication, interlocking, or pilot device feedback.

Key Features

• 80-amp rating at 440 Vac for medium-duty motor control applications
• 220 Vac coil voltage at 50/60 Hz for broad voltage compatibility
• 3-pole, non-reversible configuration for single-direction motor loads
• Auxiliary contacts: 1 NC and 1 NO included for control circuit integration
• Compliant with EN/IEC 60947-4-1, UL 508, CSA C22.2 No. 14, and RoHS
• Compact design at approximately 5.5 inches height, 5.4 inches width, and 3.7 inches depth

Compatibility

Designed as an OEM-style IEC contactor replacement for 3-pole, non-reversible motor starter assemblies requiring an 80-amp, 220 Vac coil device conforming to EN/IEC 60947-4-1 standards.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements and applicable local codes. De-energize and lock out the circuit before removing or installing the contactor. Verify coil voltage matches the control circuit supply before energizing. Do not exceed the rated amperage for the application, and confirm auxiliary contact wiring matches the control schematic before restoring power.
