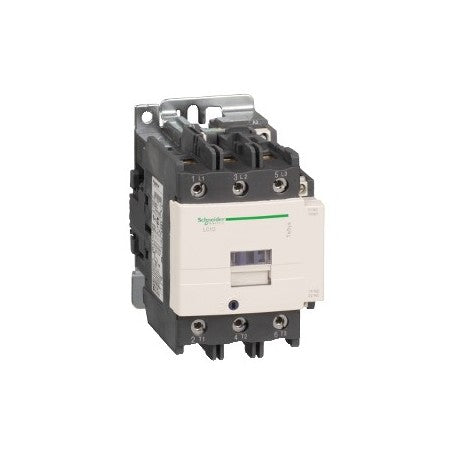

Schneider Electric LC1D80G7 Tesys D IEC Contactor 80 A 3 P 60 HP at 480 VAC

Product Description

The Schneider Electric LC1D80G7 is a TeSys D IEC contactor, rated for 80 A with three poles. It supports up to 60 horsepower at 480 VAC. This nonreversing contactor features a 120 VAC 50/60 Hz coil, making it suitable for motor control and resistive load applications. The product includes one normally open (NO) and one normally closed (NC) contact with the option to add auxiliary contacts for additional functionality.

• Offers multiple connection options including spring terminals and EverLink BTR screw connectors.
• Designed for compact mounting and compatibility with legacy TeSys D contactors.
• Suitable for inductive motor applications up to 150 full-load amps.

Product Highlights

This contactor is engineered for durability and flexibility, ensuring reliable performance in various applications.

Product Information

Standard Information

• Type: Contactor
• Utilisation Category: AC-3, AC-4, AC-1

Technical Specifications

• Rated Operational Voltage: Up to 600 V
• Rated Current: 80 A (AC-3)
• Rated Power: 60 HP at 460/480 VAC
• Coil Voltage: 120 VAC
• Pole Configuration: 3 P
• Height: 127 mm
• Width: 85 mm
• Depth: 130 mm
