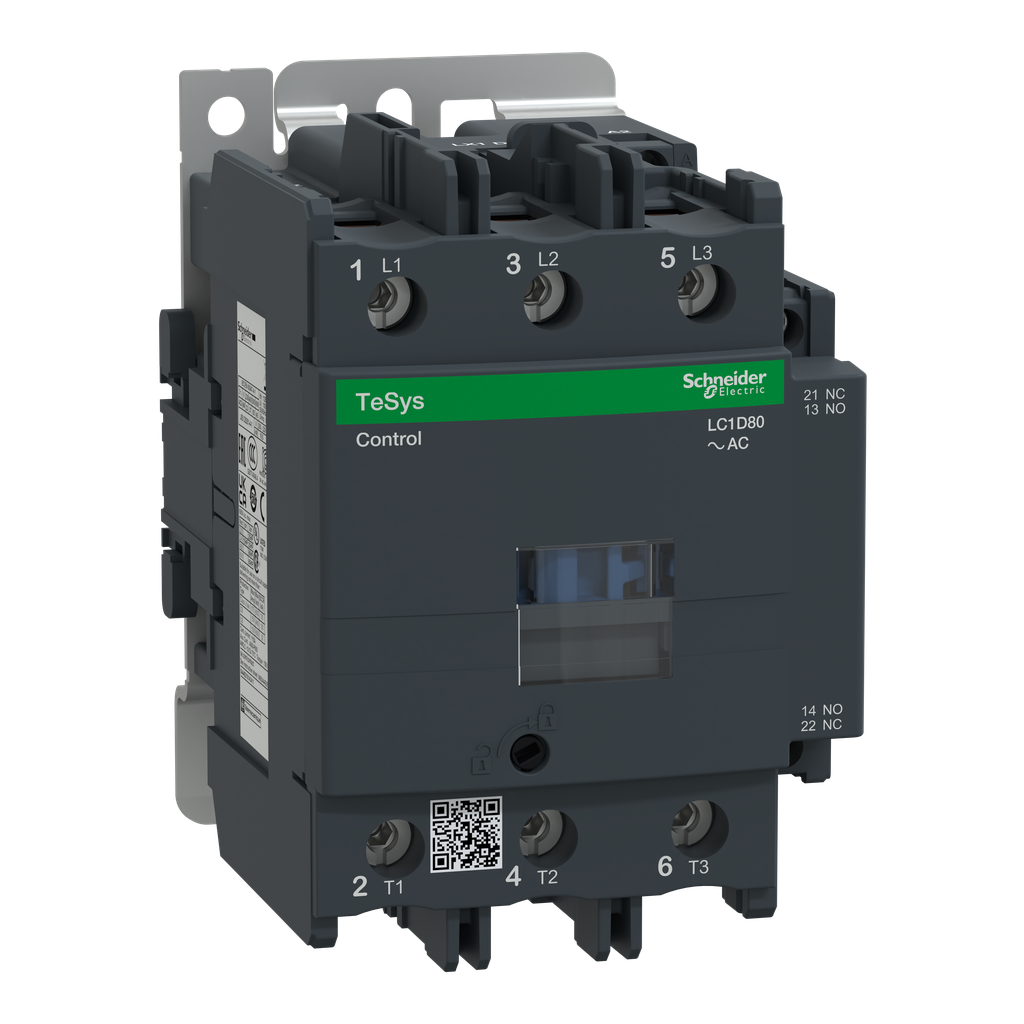

Schneider Electric LC1D80F7 Square D 600 VAC 80 Amp 3-Pole 1NO 1NC Screw Terminal Full Voltage Non-Reversing IEC Contactor

Product Description

Schneider Electric LC1D80F7 is a full voltage non-reversing IEC contactor designed for motor control applications. This model supports 600 VAC with a continuous current rating of eighty amps and is suitable for use in various industrial settings. The device features a coil voltage of 110 VAC at fifty or sixty hertz and incorporates both normally open and normally closed auxiliary contacts built-in as standard. The contactor can be installed on DIN rails or directly mounted on panels, making it versatile for different setups.

• Rated for up to 80A with 3 poles.
• Screw clamp terminals allow for secure connections.
• Compatible with inductive motor applications and resistive loads.

Product Highlights

This contactor includes extensive accessories and can achieve a short-circuit current rating up to 100 kA when used with the appropriate circuit breaker or fuse.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square D

Technical Specifications

• Catalog Number: LC1D80F7
• Voltage: 600 VAC
• Current Rating: 80 A
• Coil Voltage: 110 V AC 50/60 Hz
• Mounting Type: DIN rail or panel mount
• Height: five inches
• Width: three point three five inches
• Depth: five point one two inches
• Weight: three point five one lbs
• Contact Configuration: 1 NO + 1 NC
• Operating Temperature Range: -40 to 70 degrees C
