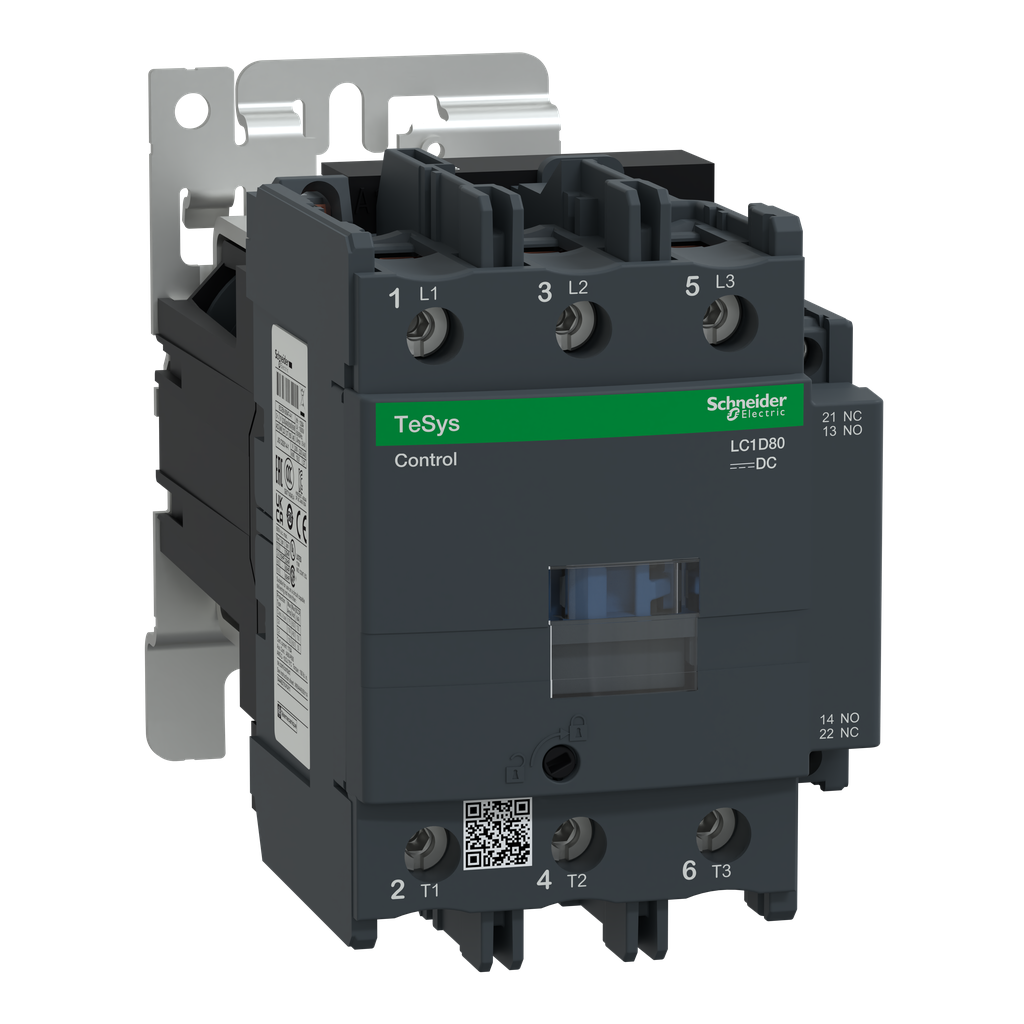

Schneider Electric LC1D80BD 600 VAC 80 Amp 3-Pole 1NO 1NC Screw Terminal Full Voltage Non-Reversing IEC Contactor

Product Description

The Schneider Electric LC1D80BD is a 600 VAC, 80 Amp, 3-pole IEC contactor designed for integration into control systems. It serves as an effective motor starter for a diverse range of applications. The contactor features ratings suitable for inductive motor applications up to one hundred fifty amps and resistive loads up to two hundred amps. This model supports various mounting options including DIN rail mounting or direct panel mounting.

• Rated for 25 HP at 200 to 208 VAC and 60 HP at 480 VAC three-phase.
• Includes one normally open and one normally closed auxiliary contact.
• Features a 24 VDC coil with a transient suppressor module.

Product Highlights

Designed for efficiency, this contactor simplifies motor control needs and meets international standards.

Product Information

Standard Information

• Catalog Number: LC1D80BD
• Brand: Schneider Electric

Technical Specifications

• Voltage Rating: 600 VAC
• Current Rating: 80 Amp
• Width: 3.35 inches
• Height: 5.00 inches
• Depth: 7.32 inches
• Weight: 5.71 lbs
• Coil Voltage: 24 VDC
• Operating Temperature: -40 to 70 degrees C
• Certification: UL, CSA, IEC, CCC, EAC
