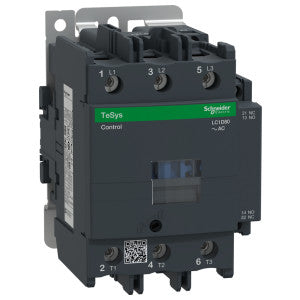

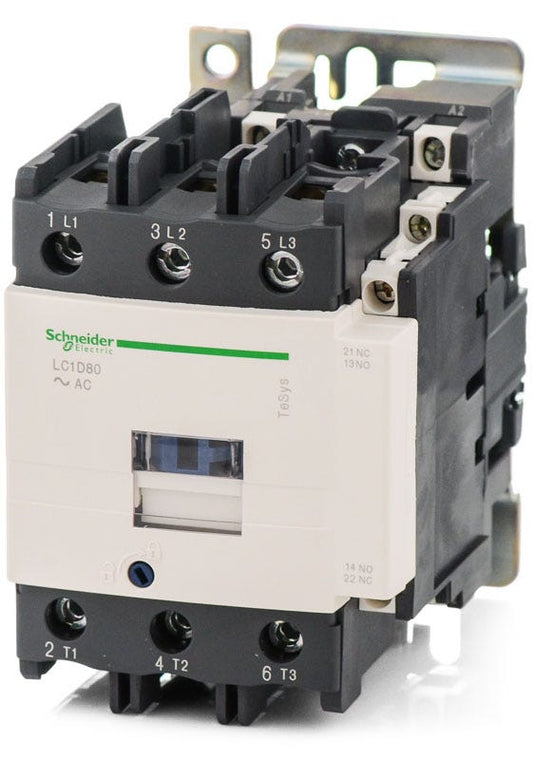

Schneider Electric LC1D80B7 3 Pole Contactor 30 HP

Product Description

The Schneider Electric LC1D80B7 is a three pole contactor that operates at 80 AMP AC-3 and can handle up to 30 HP at 230 volts and 60 HP at 460 volts. It features a 24 volt AC rated coil and comes with one normally open and one normally closed base mounted contact. The contactor also allows for the addition of optional LADN auxiliary contacts, supporting up to six total contacts.

• 80 AMP AC-3 rating for motor control
• Compatible with inductive motor applications
• Finger-safe terminals for increased safety

Product Highlights

This contactor is built for motor control and provides overload protection, making it suitable for a variety of electrical applications.

Product Information

Standard Information

• Series: TeSys D
• Standard Compliance: EN 60947-4-1, UL 60947-4-1

Technical Specifications

• 3-Phase HP Rating (Max.): 60 hp
• Contactor Type: IEC
• IP Rating: IP20
• Max. Inductive Amps (AC3): 80A
• Max. Resistive Amps (AC1): 125A
• Rated Voltage: 690V AC
• Single-Phase HP Rating (Max.): 15 hp
• Height: 127 mm
• Depth: 130 mm
• Width: 85 mm
• No. of Poles: 3
• Amperage: 80A
• Voltage: 24V
• Phase: 3
• Mounting Type: Din Rail
