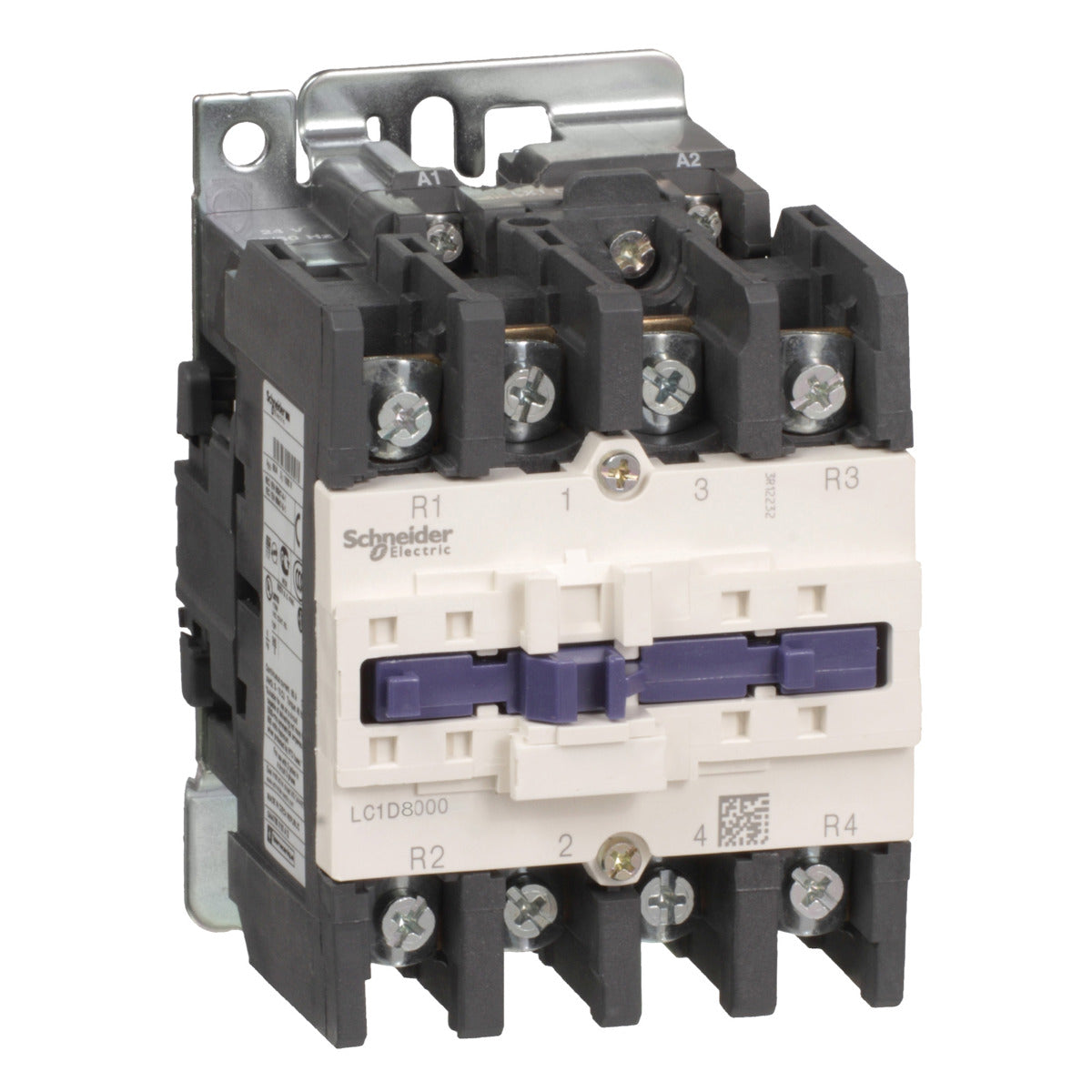

Schneider Electric LC1D80008F7 IEC Contactor, TeSys Deca, Nonreversing, 125A Resistive, 4 Pole, 2 NO and 2 NC, 110VAC 50/60Hz Coil

Product Description

Schneider Electric's LC1D80008F7 is an IEC contactor designed for integration into control systems. It is capable of creating motor starters for various applications. This model supports inductive motor applications up to one hundred fifty full-load amps and resistive loads up to two hundred amps. The contactor features four poles with two normally open and two normally closed contacts, and operates with a coil voltage of one hundred ten volts at fifty or sixty hertz.

• Features two normally open and two normally closed contacts
• Mountable on DIN rail or directly to a panel
• Meets UL, CSA, IEC, and RoHS standards

Product Highlights

This contactor is suitable for resistive loads and includes screw clamp terminals for reliable connections. An extensive range of accessories is available to tailor the contactor for different applications.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country of Origin: France

Technical Specifications

• Catalog Number: LC1D80008F7
• Voltage: 110 V AC 50/60 Hz
• Mounting: Rail Plate
• Contact Configuration: 2 NO + 2 NC
• Weight: 4.06 lbs
• Dimensions: 5.00 inches (H) x 3.78 inches (W) x 5.51 inches (D)
• Warranty: 18 months
• RoHS Compliant: Yes
