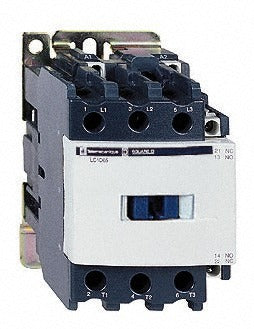

Schneider Electric LC1D65T6 Iec Contactor 3 Pole 480V

Product Description

The SCHNEIDER ELECTRIC LC1D65T6 is a 3-pole, non-reversible IEC contactor rated for 480 volts AC at 60 Hz. It is designed for motor control and load switching applications in industrial and commercial electrical systems. The contactor features an auxiliary contact configuration of one normally closed (NC) and one normally open (NO) contact, making it suitable for control circuit interlocking and status signaling. Licensed electricians and industrial maintenance technicians install this device in motor control centers, panel boards, and machine control enclosures where reliable switching of three-phase loads is required. It carries a broad set of certifications including UL Listed, CSA, and RoHS Compliant.

The LC1D65T6 is suited for use in three-phase motor control and power switching circuits in industrial facilities, commercial buildings, and process equipment installations. Its 480-volt coil voltage aligns with common North American control circuit standards, reducing the need for additional control transformers in many panel configurations. This contactor is appropriate for new installations and as a replacement in existing motor control assemblies where an IEC-style 3-pole non-reversible contactor is required.

Key Features

• 3-pole non-reversible design for three-phase load switching
• Coil rated at 480 volts AC at 60 Hz for direct integration with standard North American control circuits
• Auxiliary contact configuration: 1 NC and 1 NO for control circuit interlocking and signaling
• Compliant with EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 508, and CSA C22.2 No. 14
• RoHS Compliant construction
• Recognized by Bureau Veritas, DNV, GL, GOST, LROS, and RINA for marine and international applications

Compatibility

Designed as an OEM-style IEC contactor for use in three-phase motor control and industrial switching applications requiring a non-reversible 3-pole contactor with a 480-volt AC coil.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements and the equipment manufacturer's wiring diagrams. De-energize and lock out the circuit before removing or installing the contactor. Verify coil voltage and auxiliary contact wiring match the existing control circuit before energizing. Ensure the enclosure rating meets the requirements of the installation environment.
