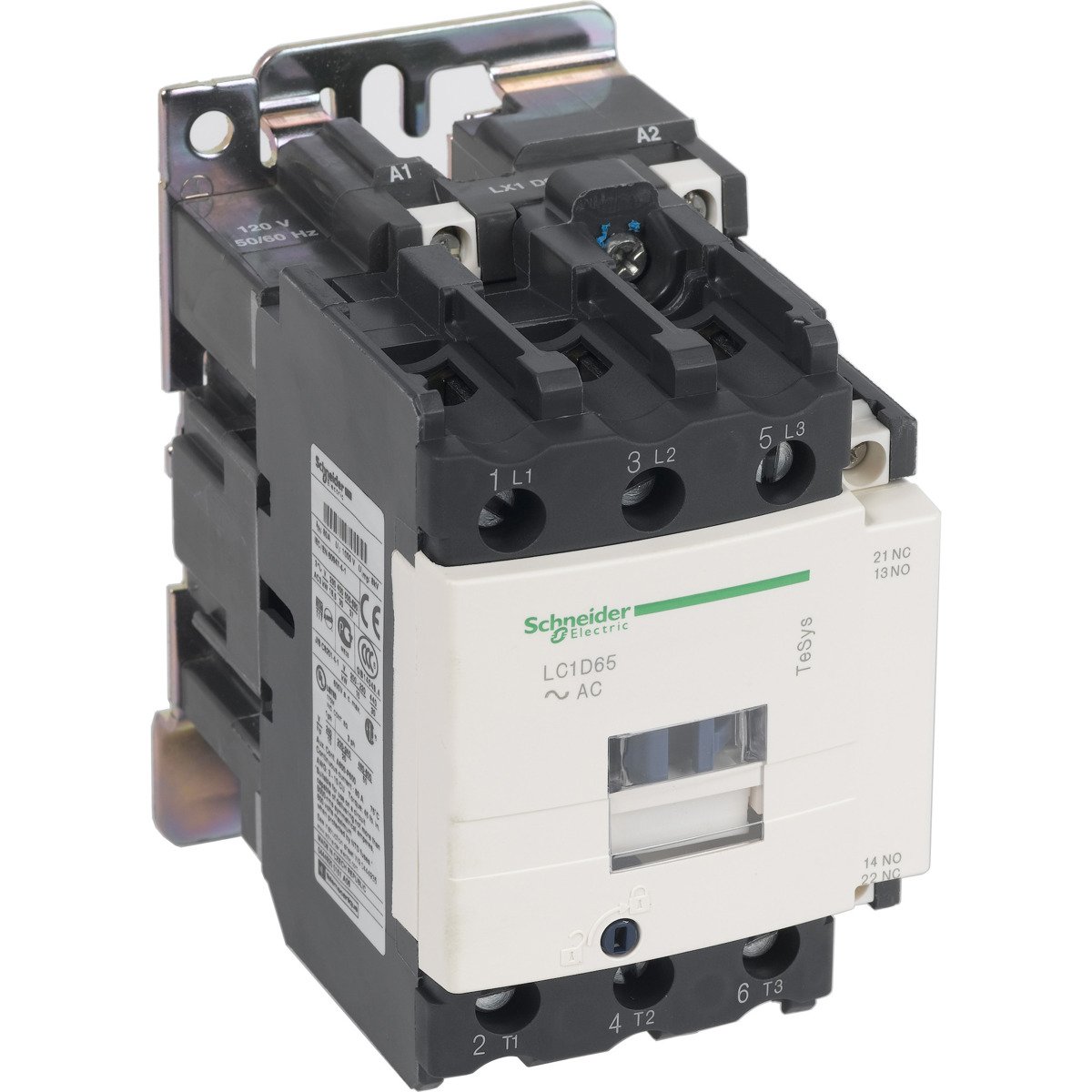

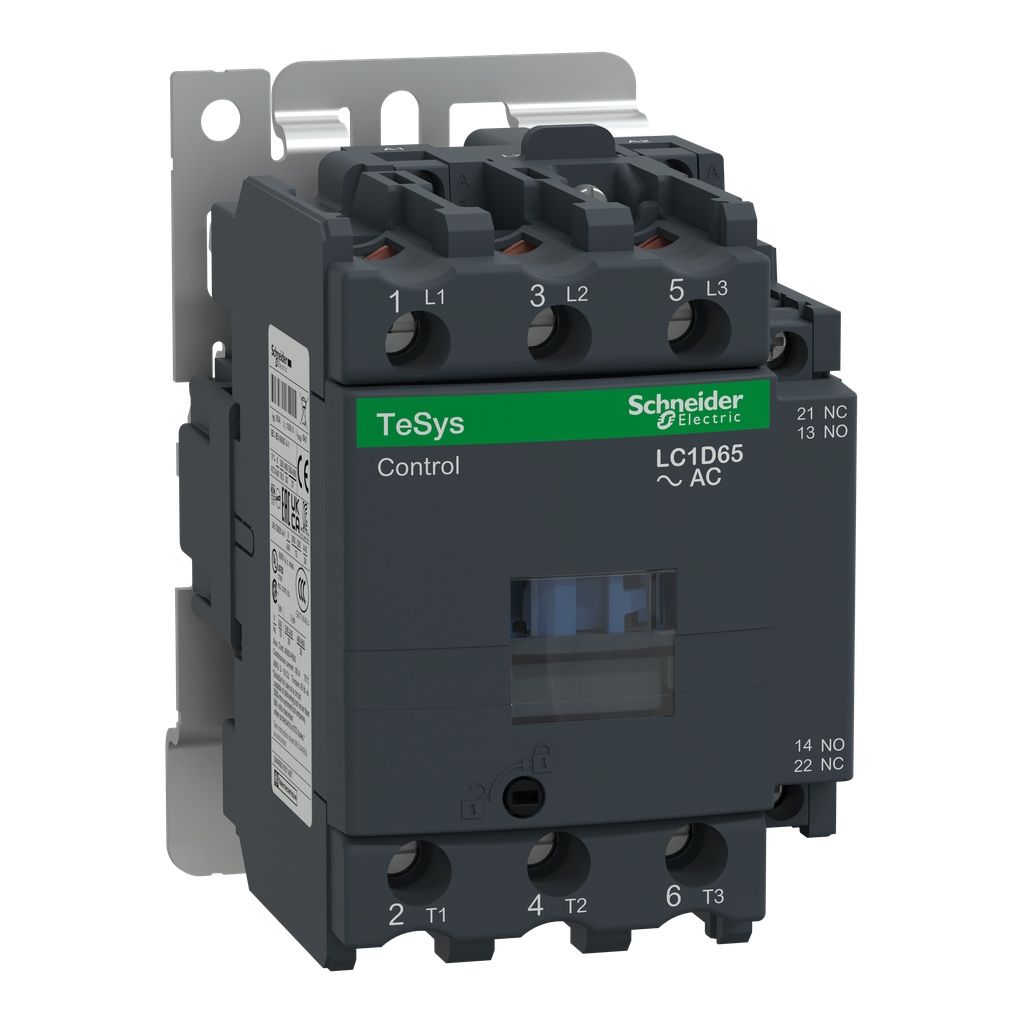

Schneider Electric LC1D65B7 Square D 600 VAC 65 Amp 3-Pole Contactor

Product Description

The Schneider Electric LC1D65B7 is a 600 volt alternating current contactor designed for rigorous motor control applications. This contactor handles a maximum load of sixty-five amps and supports both three-phase and single-phase configurations. It integrates seamlessly with various control systems, making it suitable for creating motor starters across a wide range of applications.

• Rated for 20HP at 200 to 208VAC, 20HP at 240VAC, 40HP at 480VAC, and 50HP at 600VAC for three-phase applications.
• Includes built-in normally open and normally closed auxiliary contacts for enhanced functionality.
• Meets stringent certification standards including UL, CSA, and IEC.

Product Highlights

This contactor includes a 24V AC coil operating at 50/60Hz, facilitating reliable switching functions in motor control applications.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: LC1D65B7
• Voltage Rating: 600 VAC
• Rated Current: 65 Amps
• Mounting Type: DIN rail or direct panel mount
• Dimensions: 4.80 inches tall, 2.17 inches wide, 4.72 inches deep
• Weight: 1.90 lbs
• SCCR: Up to 100kA
• Coil Voltage: 24 Vac 50/60Hz
