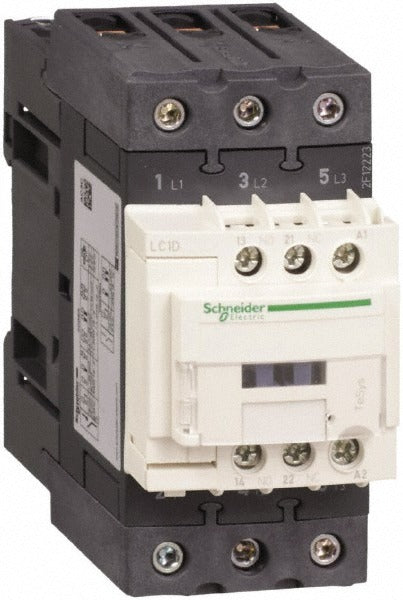

Schneider Electric LC1D65AT7 Iec Contactor 3 Pole 65A

Product Description

The SCHNEIDER ELECTRIC LC1D65AT7 is a 3-pole IEC contactor rated at 65 amps at 440 volts AC, designed for non-reversible motor control and load switching applications. It operates on a 480 volt AC coil at 50/60 Hz and includes an auxiliary contact configuration of one normally closed (NC) and one normally open (NO) contact. This contactor is built to IEC and UL standards, making it suitable for industrial and commercial electrical panels. Licensed electricians and controls technicians install this device as a primary switching element in motor starter assemblies, HVAC equipment, and automated machinery.

This contactor is used in commercial and industrial settings where reliable, non-reversible load control is required. Typical applications include motor starters for HVAC air handlers, pump controls, compressor circuits, and general industrial machinery. The 480 volt coil voltage makes it a direct fit for standard three-phase commercial power distribution systems operating at 50 or 60 Hz.

Key Features

• 3-pole configuration for three-phase load switching
• 65 amp rating at 440 volts AC for heavy-duty motor control
• 480 volt AC coil at 50/60 Hz for compatibility with standard commercial power systems
• Integrated NC and NO auxiliary contacts for control circuit feedback and interlocking
• Non-reversible action for single-direction motor or load control
• Meets multiple certifications including UL 508, CSA C22.2 No. 14, EN/IEC 60947-4-1, and RoHS

Compatibility

Designed as an OEM-style IEC contactor replacement for three-phase motor control and switching applications requiring a 65A, 480 volt AC coil contactor with NC and NO auxiliary contacts.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements and applicable local codes. De-energize and lock out the panel or control cabinet before removing or installing the contactor. Verify coil voltage and pole rating match the circuit requirements before energizing. Auxiliary contact wiring should be confirmed against the control schematic prior to commissioning.
