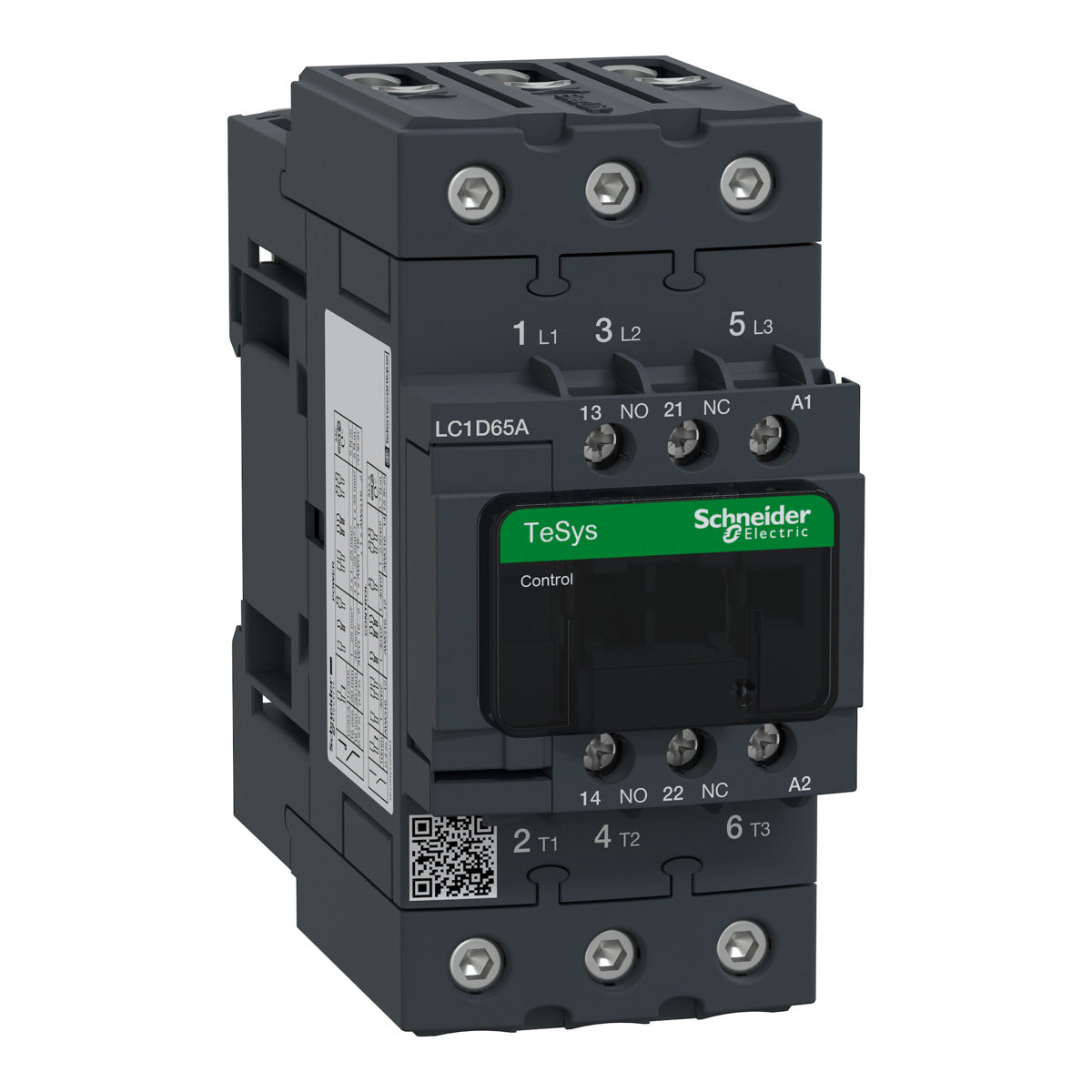

Schneider Electric LC1D65AG7 IEC Magnetic Contactor 65A 40HP 480VAC Non-Reversing

Product Description

The Schneider Electric LC1D65AG7 is a high-performance IEC magnetic contactor designed for robust industrial applications. It provides reliable non-reversing operation with a maximum load capacity of 65 amps and supports motor loads up to 40 horsepower at 480VAC. This contactor is equipped with a 120VAC coil, suitable for both 50 and 60 Hz power supplies, and is designed to handle up to 100kA SCCR, making it ideal for heavy-duty applications.

• Supports up to 40HP motors at 480VAC, 65 amps.
• Equipped with 3 normally open contacts and a 120VAC 50/60Hz coil.
• Robust build, suitable for demanding industrial environments.

Product Highlights

This unit is engineered for simplicity in electrical connectivity and durability, ensuring efficient operation and long service life. Features like the easy-to-wire screw clamp terminals and flexible cable handling enhance installation and maintenance processes.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: France
• Warranty: Contractual Warranty of 18 months

Technical Specifications

• MPN: LC1D65AG7
• Connection Type: Screw clamp terminals for different cable types
• Operating Cycles: 25 to 400 Hz
• Special Features: Without built-in suppressor module
• Mounting: Rail Plate
• Electrical Durability: 1.4 million cycles for AC-3 operations at less than 440V
• RoHS Compliant: Yes, link available on request
• GTIN: 03389119408998
