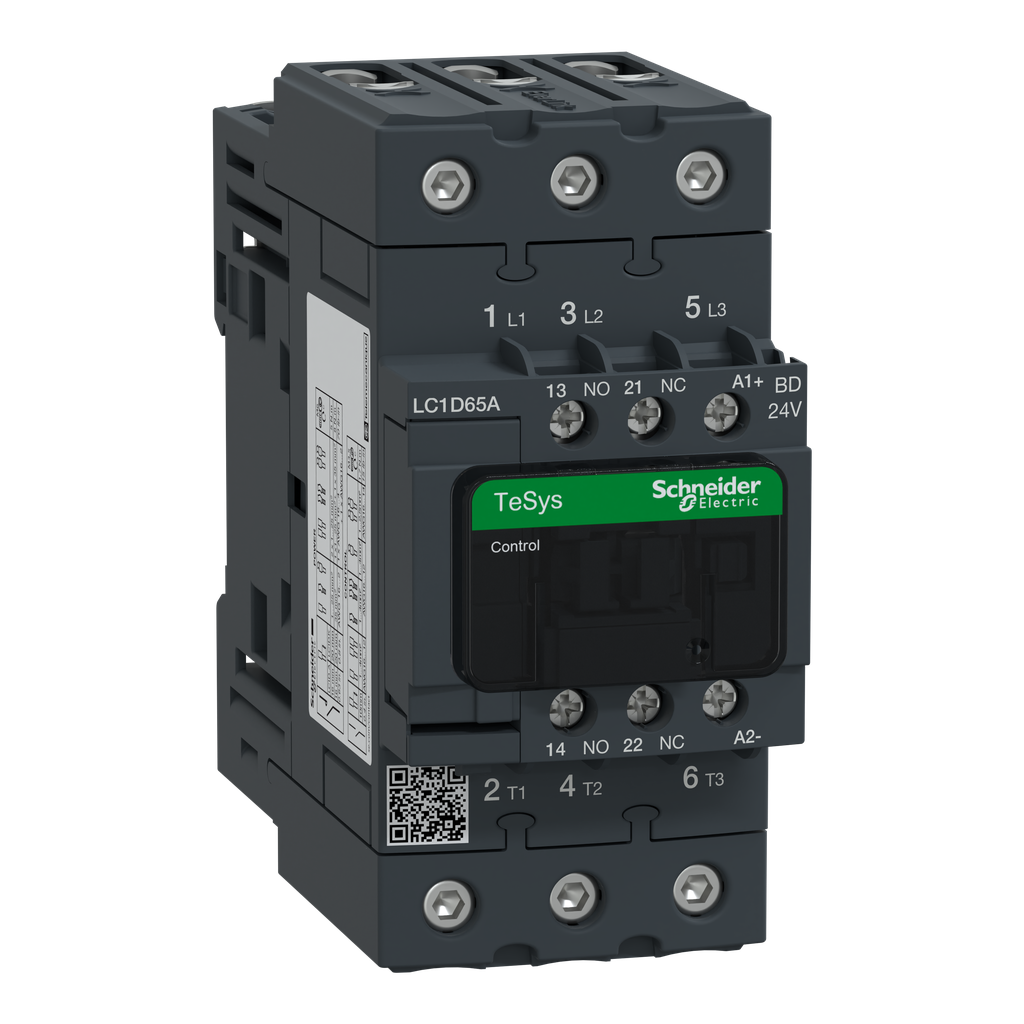

Schneider Electric LC1D65ABD Square D 24 VDC 65 Amp 3-Pole 1NO 1NC Screw Terminal Full Voltage Non-Reversing IEC Contactor

Product Description

The Schneider Electric LC1D65ABD is a 24 VDC, 65 Amp, three-pole IEC contactor designed for integration into control systems. This contactor creates motor starters for various applications and supports both inductive and resistive loads. It is suitable for motor control tasks with ratings that go up to 150 full-load amps and resistive loads of up to 200 amps. The 65A unit can be mounted on a DIN rail or directly onto a panel.

• Rated for 20HP at 200 to 208VAC, 20HP at 240VAC, 40HP at 480VAC, and 50HP at 600VAC three phase
• Utilizes a 24 VDC coil with a transient suppressor module
• Comes with one normally open and one normally closed auxiliary contact built-in

Product Highlights

The LC1D65ABD offers reliable performance for various industrial motor control applications. It meets the standards of multiple certification bodies, including UL, CSA, and IEC, ensuring safety and reliability.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square D / Schneider

Technical Specifications

• Catalog Number: LC1D65ABD
• Voltage Rating: 24 V DC
• Maximum Current: 65 Amps
• Height: 4.80 inches
• Width: 2.17 inches
• Depth: 4.72 inches
• Weight: 2.06 lbs
• Country of Origin: France
