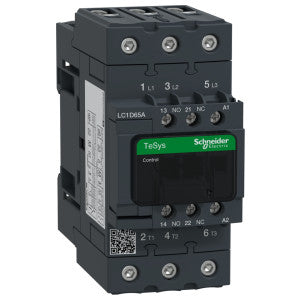

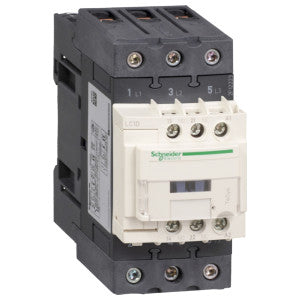

Schneider Electric LC1D65AB7 Iec Contactor, Tesys Deca, Nonreversing, 65A, 40HP at 480VAC, 3 NO, 24VAC 50/60Hz Coil

Product Description

The Schneider Electric LC1D65AB7 is a TeSys Deca compact 3 pole contactor designed for motor and resistive load applications. It has a rating of 65A AC-3 and 40HP at 480VAC. This contactor features a 24V 50/60Hz AC coil and includes one normally open and one normally closed auxiliary contact. It can be mounted on a DIN rail or directly to a panel and meets various certification standards.

• Rated for 65A with 40HP capacity
• Non-reversing design
• DIN rail or direct panel mounting options

Product Highlights

This contactor is ideal for controlling motors and resistive loads in various industrial and commercial applications.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: LC1D65AB7

Technical Specifications

• ECCN: EAR99
• UNSPSC: 39121529
• Series: TeSys D
• Standards: UL, CSA, IEC
• Max Inductive Amps (AC3): 65A
• Max Resistive Amps (AC1): 80A
• Rated Voltage: 690V AC
• Height: 122 mm
• Width: 55 mm
• Depth: 120 mm
