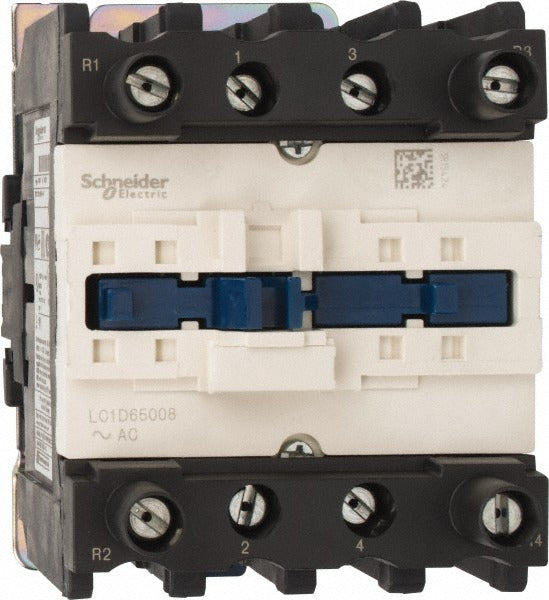

Schneider Electric LC1D65008G6 Iec Contactor 4 Pole 80A

Product Description

The SCHNEIDER ELECTRIC LC1D65008G6 is a 4-pole, non-reversible IEC contactor rated at 80 amps at 440 volts AC with a 120-volt AC coil operating at 60 Hz. It is designed for switching and controlling three-phase and single-phase motor loads as well as resistive and capacitive circuits. Licensed electricians and industrial maintenance technicians install this contactor in motor control centers, panel boards, and standalone starter assemblies. The unit meets a broad range of international certification standards, making it suitable for domestic and export equipment builds requiring multi-agency compliance.

This contactor is well suited for commercial and light industrial applications where a robust, non-reversible switching device is required. Typical installations include HVAC equipment, compressor panels, pumping systems, and process control panels. Its 4-pole configuration allows it to switch all four conductors simultaneously, supporting applications that require neutral switching or additional circuit isolation beyond the standard 3-pole arrangement.

Key Features

• 4-pole, non-reversible design for flexible motor and load control applications
• 80-amp rating at 440 volts AC for demanding commercial and industrial loads
• 120-volt AC coil at 60 Hz for compatibility with standard North American control circuits
• Multi-agency certified: UL Listed, CSA, CCC, RoHS Compliant, EN/IEC 60947-4-1, EN/IEC 60947-5-1, and others
• Compact footprint at approximately 5.0 inches tall, 3.3 inches wide, and 4.9 inches deep
• Weighs 3.15 pounds for straightforward panel installation

Compatibility

Designed as an OEM-style IEC contactor replacement for commercial and industrial motor control panels requiring a 4-pole, 80-amp, 120-volt AC coil device conforming to EN/IEC 60947-4-1 standards.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize and lock out the panel or motor control center before removing the existing contactor or making any wiring connections. Verify that the control circuit voltage matches the 120-volt AC coil rating before energizing. Inspect auxiliary contact wiring and interlocks after installation to confirm proper operation before returning the system to service.
