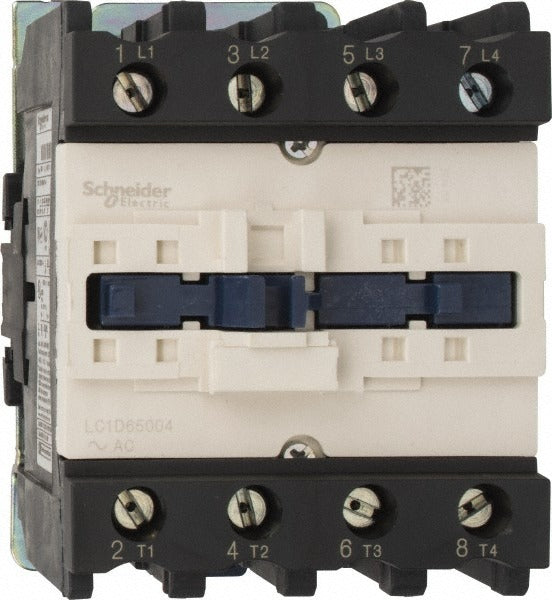

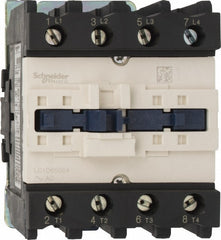

Schneider Electric LC1D65004F7 Iec Contactor 80A 4P 110V

Product Description

The SCHNEIDER ELECTRIC LC1D65004F7 is a 4-pole, non-reversible IEC contactor rated at 80 amps with a 110V AC coil operating at 50/60 Hz. It is designed for switching and controlling three-phase and single-phase electrical loads in industrial and commercial power distribution systems. Licensed electricians and industrial maintenance technicians install this contactor in motor control centers, panel boards, and machinery control circuits. The unit measures 6.2 inches in height, 5.5 inches in width, and 4.4 inches in depth, and weighs 3.24 pounds. It carries a broad set of certifications including UL Listed, CSA, RoHS Compliant, and EN/IEC 60947-4-1.

The LC1D65004F7 is suited for commercial and industrial applications where a non-reversible, high-amperage switching device is required. Typical installations include motor starters, HVAC equipment control panels, compressor circuits, and automated machinery. Its 110V AC coil voltage makes it compatible with standard control circuit voltages found in North American and international industrial environments. The 4-pole configuration supports applications requiring a switched neutral or an independent auxiliary circuit alongside the main load contacts.

Key Features

• 4-pole non-reversible configuration for flexible load switching including switched neutral
• 80-amp contact rating suitable for heavy motor and load control applications
• 110V AC coil at 50/60 Hz compatible with standard North American and international control voltages
• UL Listed, UL 508, CSA C22.2 No. 14, and EN/IEC 60947-4-1 certified for broad code compliance
• Additional certifications include CCC, DNV, GL, GOST, LROS, RINA, Bureau Veritas, and RoHS Compliant
• Compact footprint at 6.2 x 5.5 x 4.4 inches facilitates installation in tight panel enclosures

Compatibility

Designed as an OEM-style IEC contactor replacement for industrial motor control and power distribution applications requiring a 4-pole, 80-amp, 110V AC coil device conforming to EN/IEC 60947-4-1 standards.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. Disconnect and lock out all power to the panel or control circuit before handling or wiring the contactor. Verify coil voltage and contact amperage ratings match the application requirements before energizing. Do not exceed the rated amperage of the contactor in the installed circuit.
