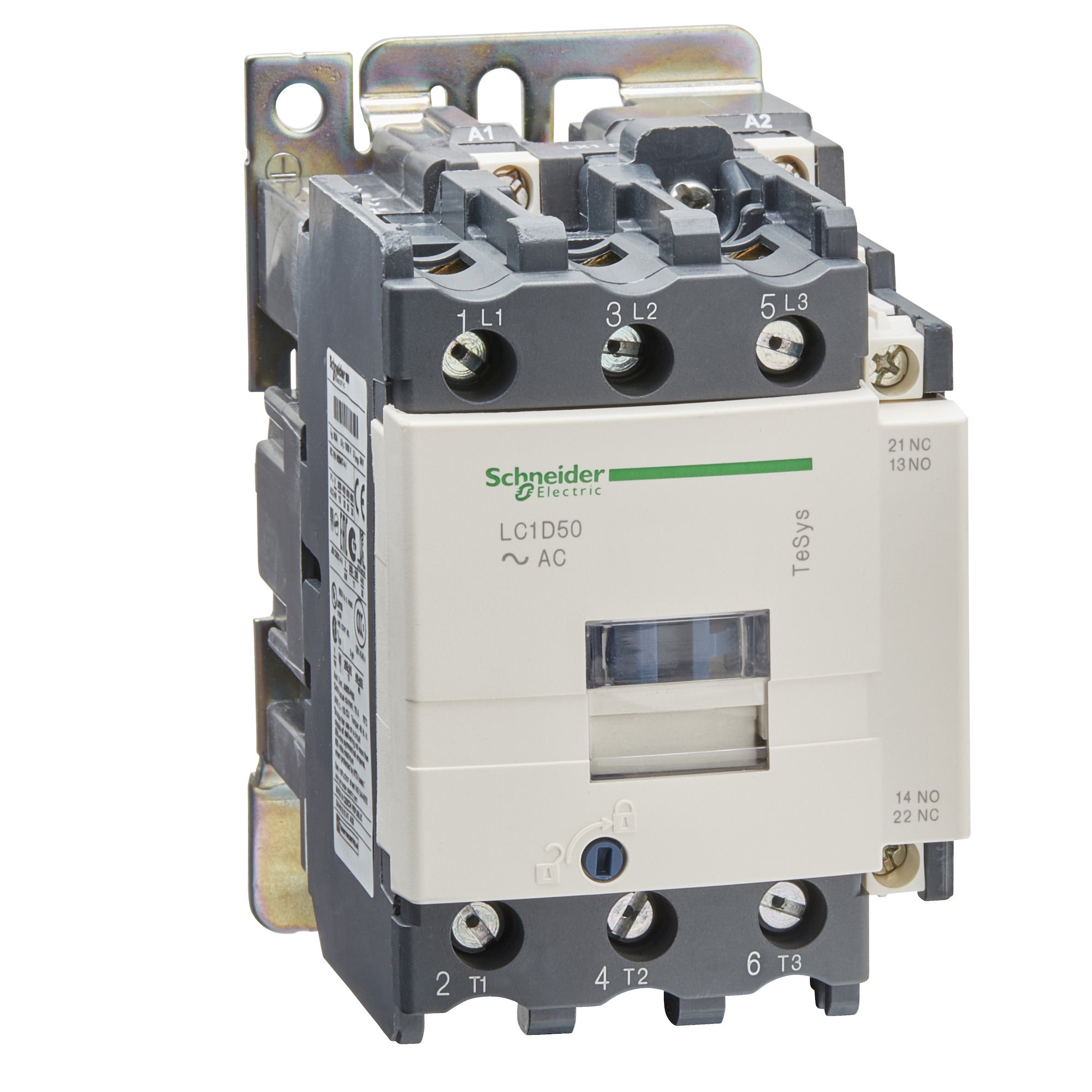

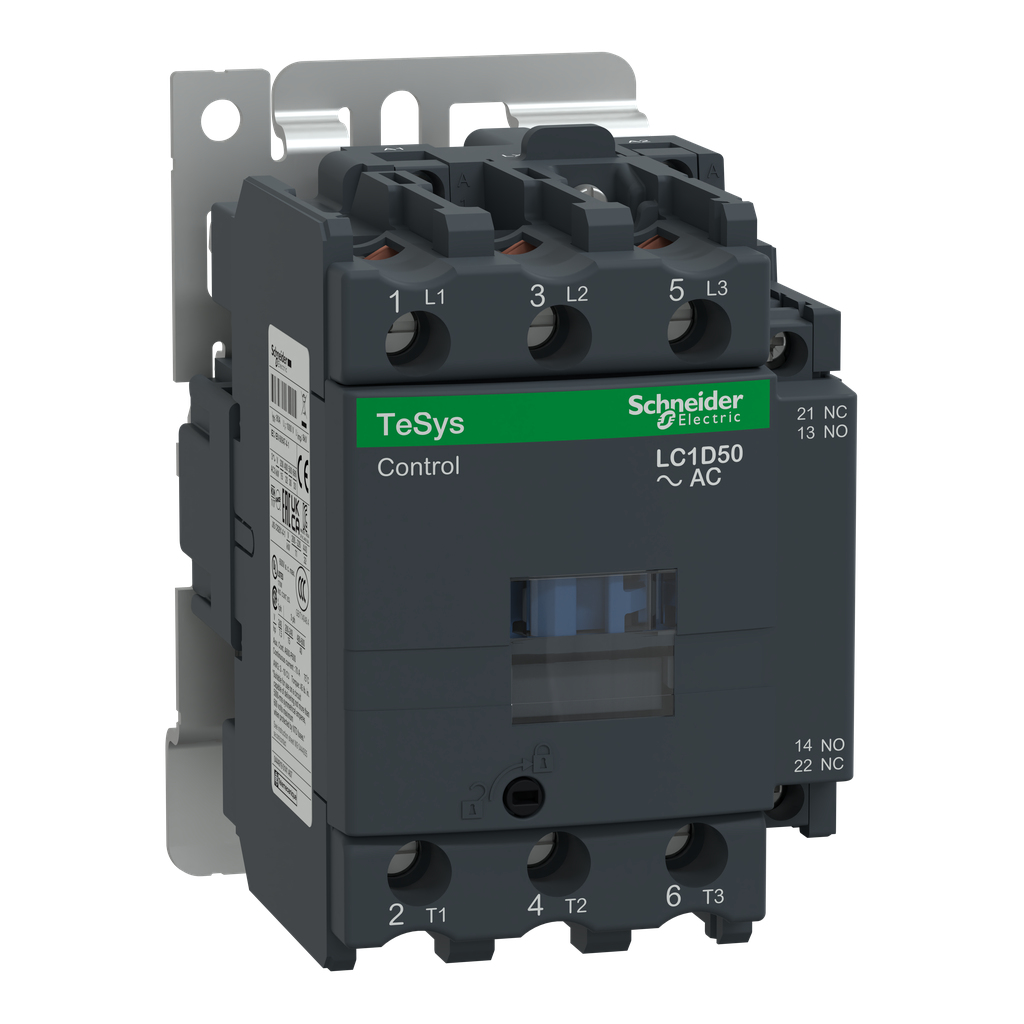

Schneider Electric LC1D50U7 Square D 600 VAC 50 Amp 3-Pole 1NO 1NC Screw Terminal Full Voltage Non-Reversing IEC Contactor

Product Description

The Schneider Electric LC1D50U7 is a 50 Amp 3-pole IEC contactor designed for various motor control applications. It integrates seamlessly into control systems, making it ideal for creating motor starters.

• Rated for 15HP at 200 to 208VAC, 15HP at 240VAC, 40HP at 480VAC and 40HP at 600VAC.
• Contains one normally open and one normally closed auxiliary contact.
• Compatible with various mounting options including DIN rail and direct panel mounting.

Product Highlights

This contactor features a robust design suitable for resistive and inductive loads for comprehensive application uses, ensuring reliable performance across multiple voltage ratings.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: LC1D50U7
• Voltage Rating: 600 VAC
• Current Rating: 50 Amps
• Type: Contactor
• Coil Voltage: 240 VAC 50/60 Hz
• Dimensions: 4.80 inches tall, 2.17 inches wide, 4.72 inches deep
• Weight: 1.87 lbs
• Contact Configuration: 1 NO + 1 NC; 3 NO
• Operating Temperature Range: -40 to 70 degrees C
