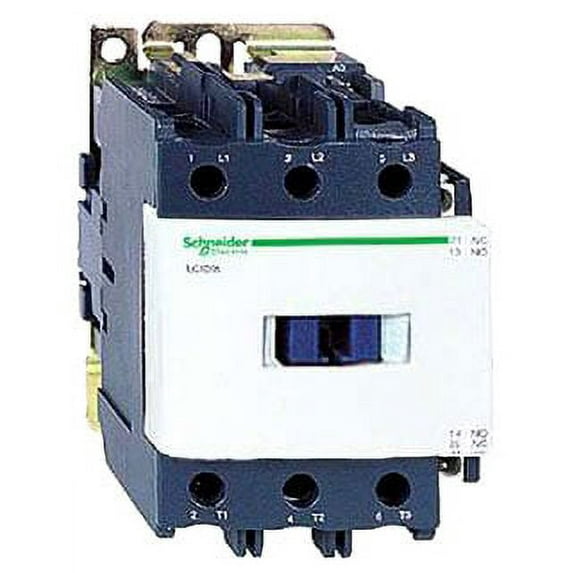

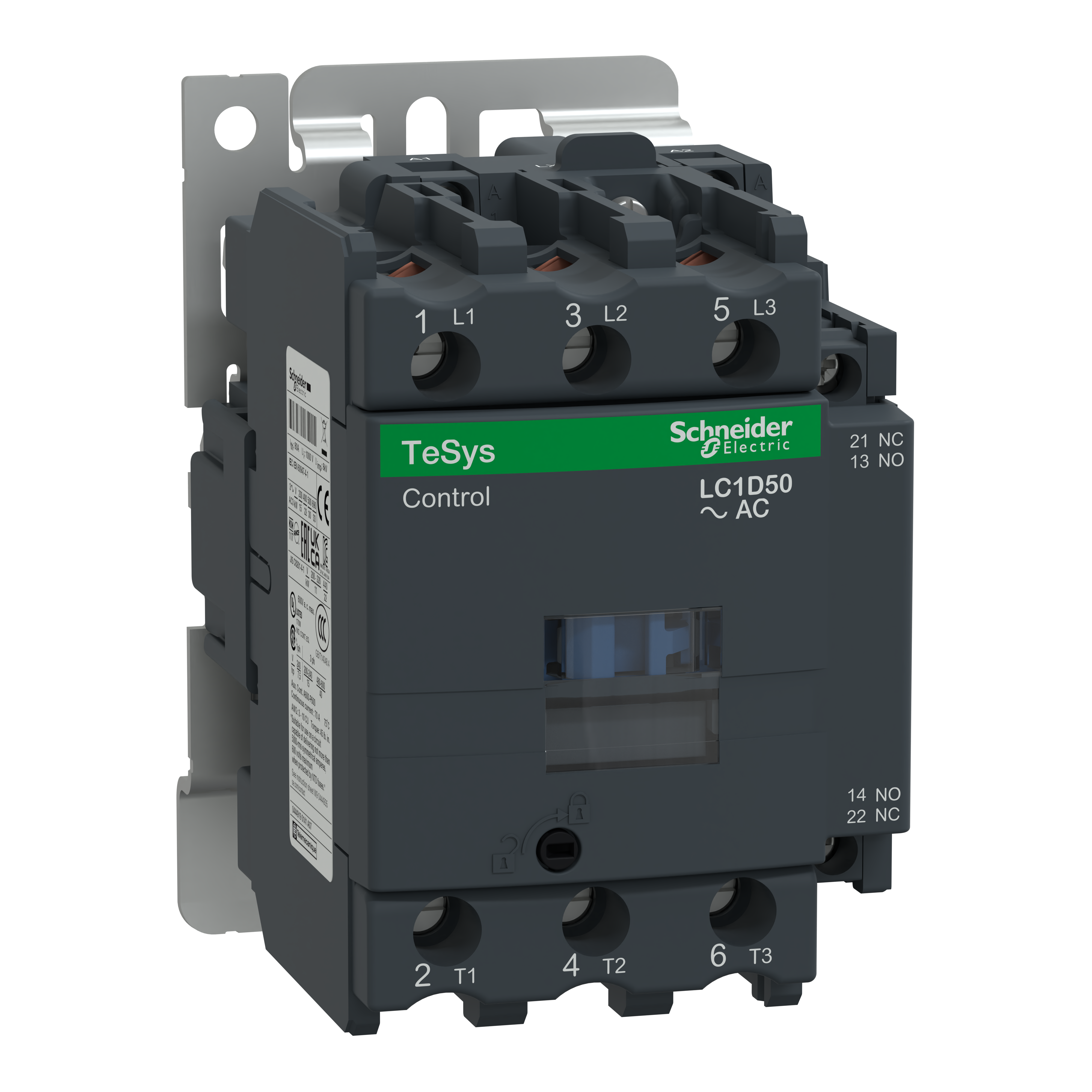

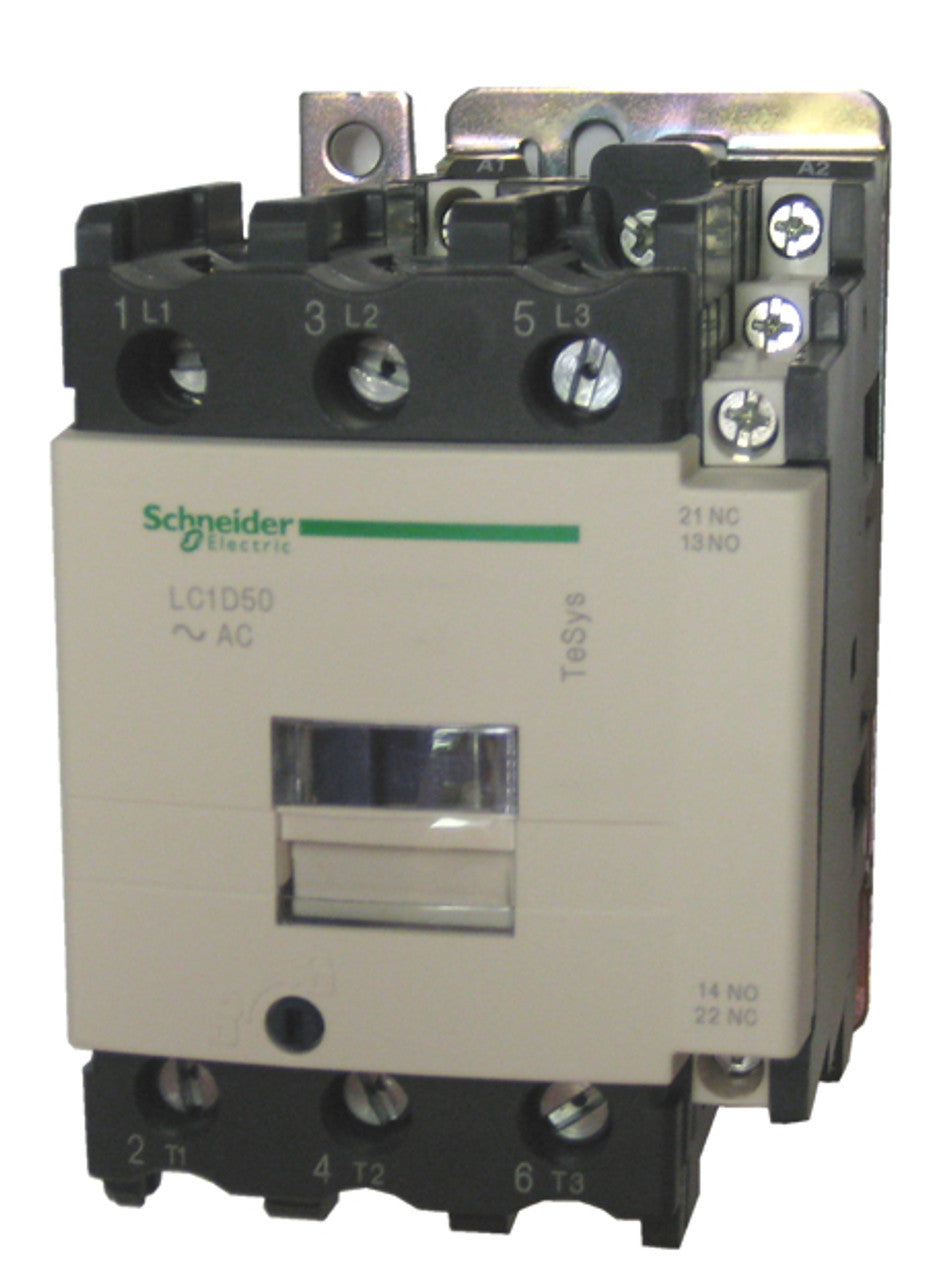

Schneider Electric LC1D50G7 TeSys D-Line IEC Contactor 120 VAC 50 A Max Load 3NO

Product Description

The Schneider Electric LC1D50G7 TeSys D-Line IEC Contactor is designed for motor control and resistive loads. It features a 120 VAC coil and can handle a maximum load of fifty amps. This contactor comes with a three-pole configuration and is ideal for applications that require reliable performance.

• Suitable for motor control and resistive loads
• 120 VAC coil with a continuous frequency of fifty or sixty hertz
• Easy to mount on a plate or rail

Product Highlights

This contactor operates effectively with a maximum load of fifty amps and complies with various standards including UL, CSA, and IEC.

Product Information

Standard Information

• Application: Motor control, resistive load
• Manufacturer: Schneider Electric

Technical Specifications

• Coil Voltage: 120 VAC
• Contact Configuration: 3NO
• Maximum Load Current: 50 A
• Mounting Type: Plate/Rail
• Operating Cycles: 6000000 Cycles
• Operating Temperature: -5 to 60 °C
• Width: 55 mm
• Height: 122 mm
• Depth: 119 mm
• Weight: 3.17 lb
