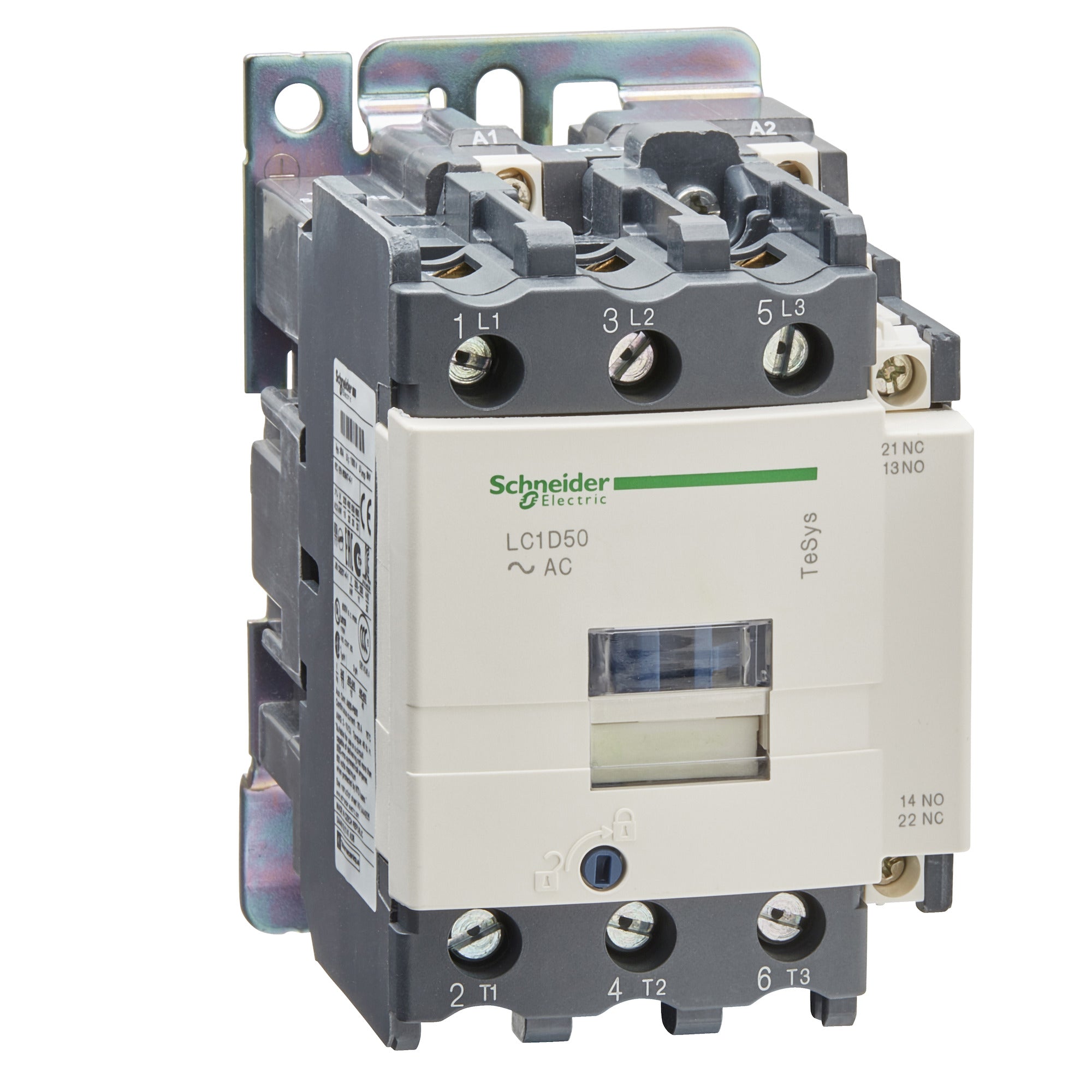

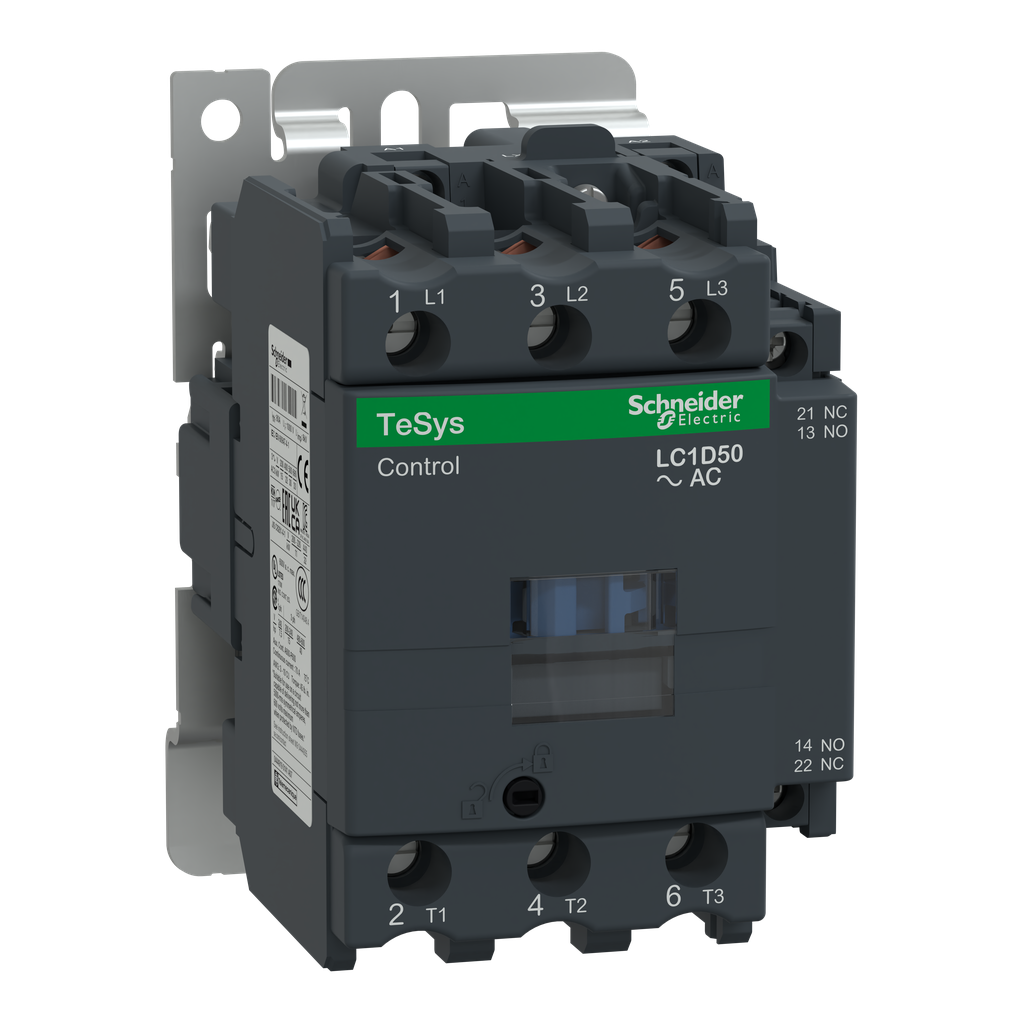

Schneider Electric LC1D50F7 IEC Contactor 50A 600VAC 1NO 1NC

Product Description

The Schneider Electric LC1D50F7 is an IEC contactor rated at fifty amps and is suitable for use in various control systems. This component is designed to create motor starters for diverse applications, which is crucial in industrial and commercial settings. The contactor is equipped with features that ensure reliability and performance, making it a key component in motor control and resistive load applications.

• Rated for 50A and compatible with 600VAC three phase systems.
• Mountable on DIN rail or directly to the panel.
• Complies with multiple international standards, including UL and IEC.

Product Highlights

This contactor supports up to 40 horsepower at 480VAC and includes one normally open and one normally closed auxiliary contact. It is designed for easy integration in various configurations, enhancing its versatility in control operations.

Product Information

Standard Information

• Catalog Number: LC1D50F7
• Brand: Schneider Electric

Technical Specifications

• Type: Contactor
• Voltage Rating: 600VAC
• Current Rating: 50A
• Contact Configuration: 1 NO + 1 NC
• Coil Voltage: 110 VAC 50/60 Hz
• Dimensions: 4.80 inches tall, 2.17 inches wide, 4.72 inches deep
• Weight: 1.87 lbs
• Country of Origin: France
