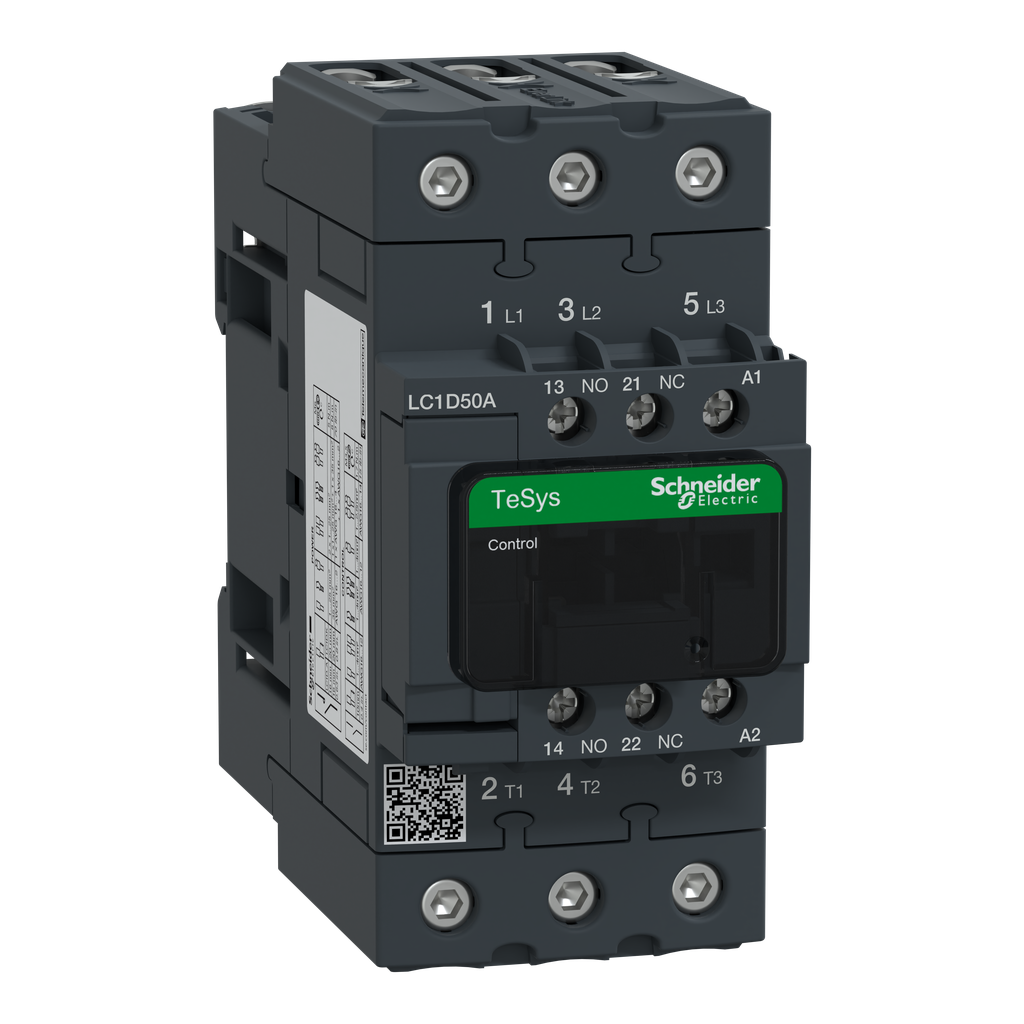

Schneider Electric LC1D50AT7 480 VAC 50 Amp 3-Pole 1NO 1NC Screw Terminal Full Voltage Non-Reversing IEC Contactor

Product Description

Schneider Electric LC1D50AT7 is a 480 VAC, 50 Amp, 3-Pole contactor designed for motor control. This IEC contactor integrates well into control systems for creating motor starters in various applications. It supports inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps.

• Rated for 15HP at 200 to 208VAC, 15HP at 240VAC, 40HP at 480VAC, 40HP at 600VAC three-phase.
• Includes one normally open and one normally closed auxiliary contact as standard.
• Compatible with DIN rail or direct panel mounting.

Product Highlights

This contactor is suitable for a wide range of applications, equipped with a coil rated at 480 VAC, 60 Hz. It is certified to multiple standards, including UL and CSA, ensuring reliability and safety. It can handle short-circuit ratings of up to 100kA with proper circuit protection.

Product Information

Standard Information

• Catalog Number: LC1D50AT7
• Manufacturer: Schneider Electric

Technical Specifications

• Item Type: Contactor
• Voltage: 480 VAC
• Frequency: 60 Hz
• Max Current Rating: 50A
• Height: 4.80 inches
• Width: 2.17 inches
• Depth: 4.72 inches
• Weight: 1.87 lbs
