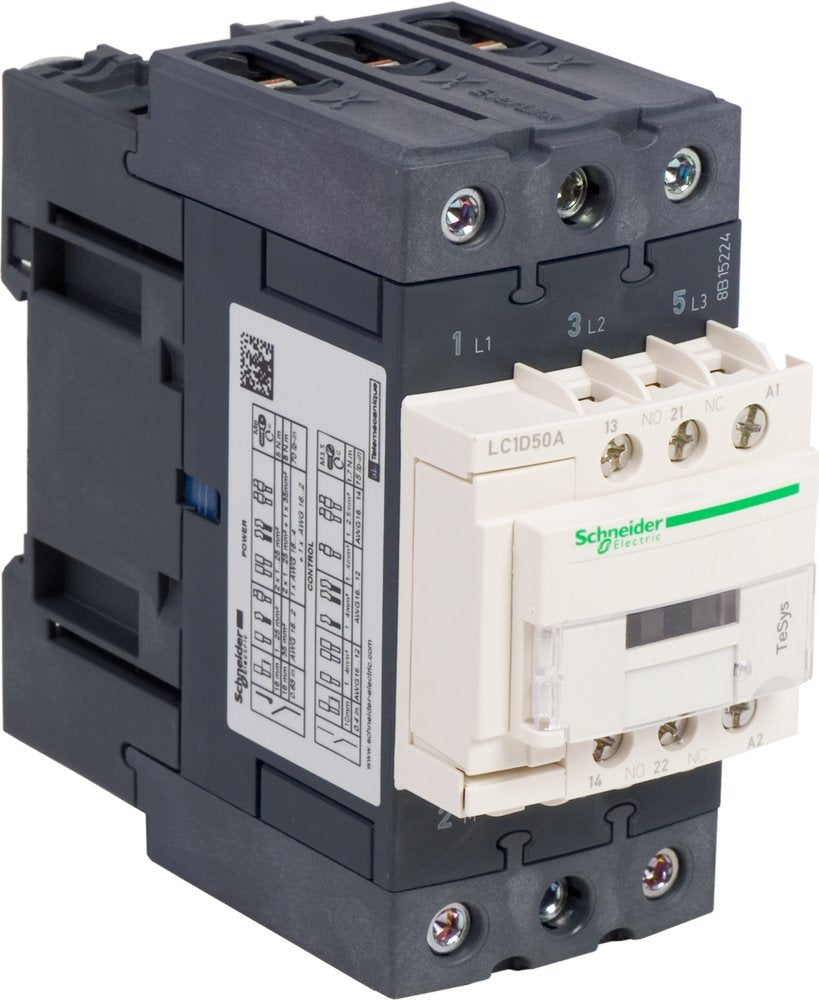

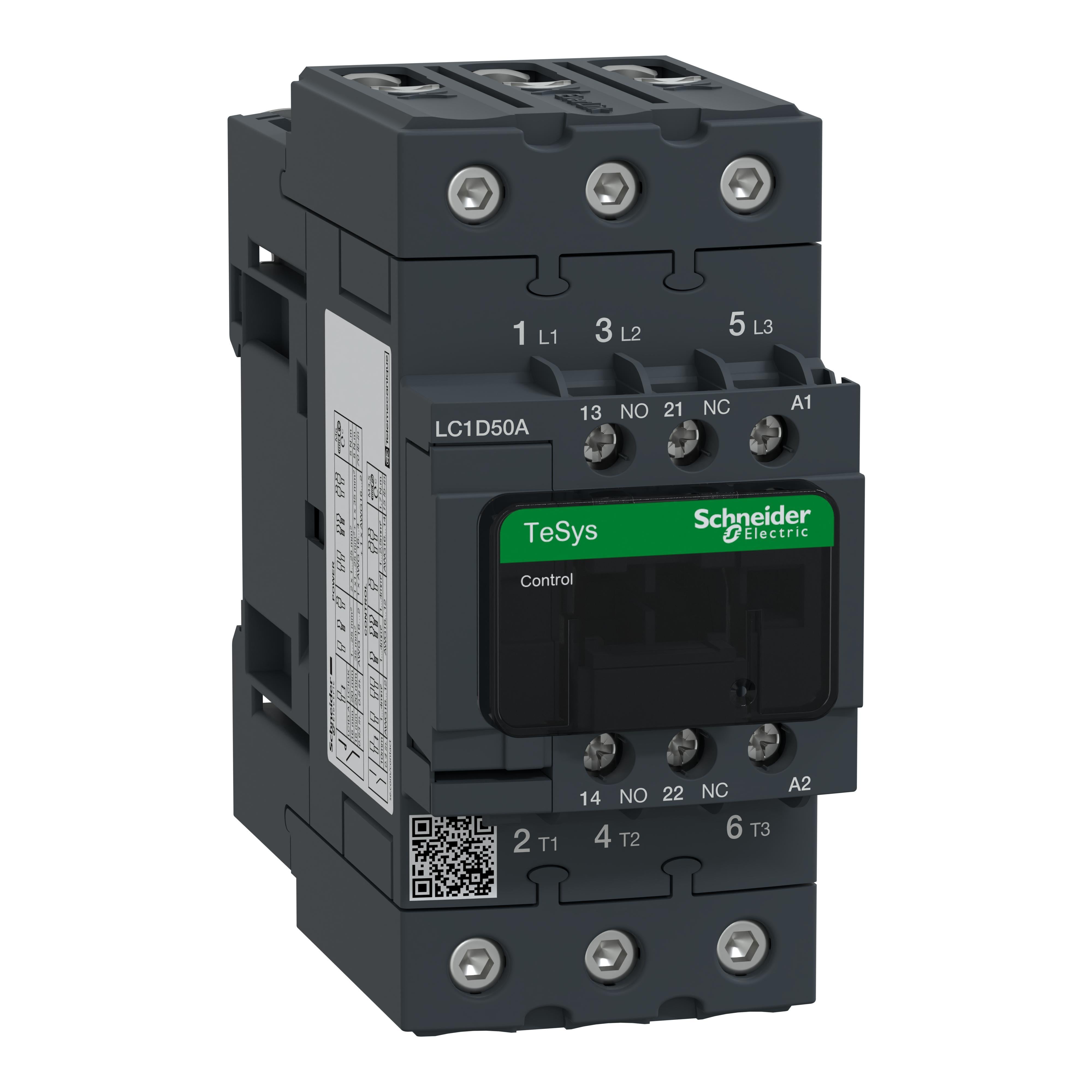

Schneider Electric LC1D50AG7 Iec Magnetic Contactor 120VAC 50A 1NC/1NO

Product Description

The SCHNEIDER ELECTRIC LC1D50AG7 is an IEC magnetic contactor with a coil voltage of 120VAC and a current rating of 50A. This 3-pole contactor is designed for use in LC1-D series motor control systems. It features a 1NC/1NO contact configuration and a screw clamp terminal connection. It is suitable for inductive motor applications up to 150 full-load amps.

• 50A current rating
• 120VAC coil voltage at 50/60Hz

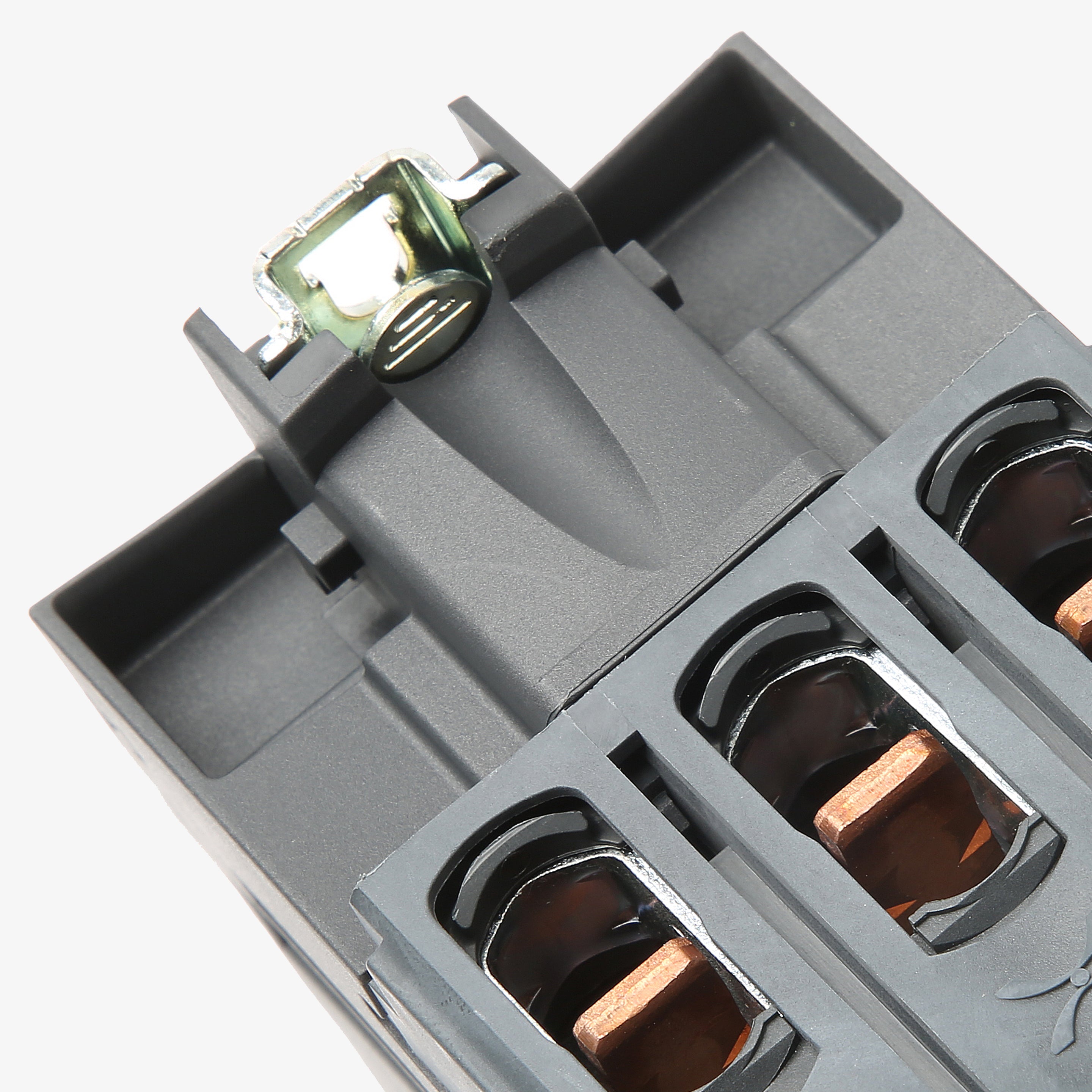

• Screw clamp terminal connection

Product Highlights

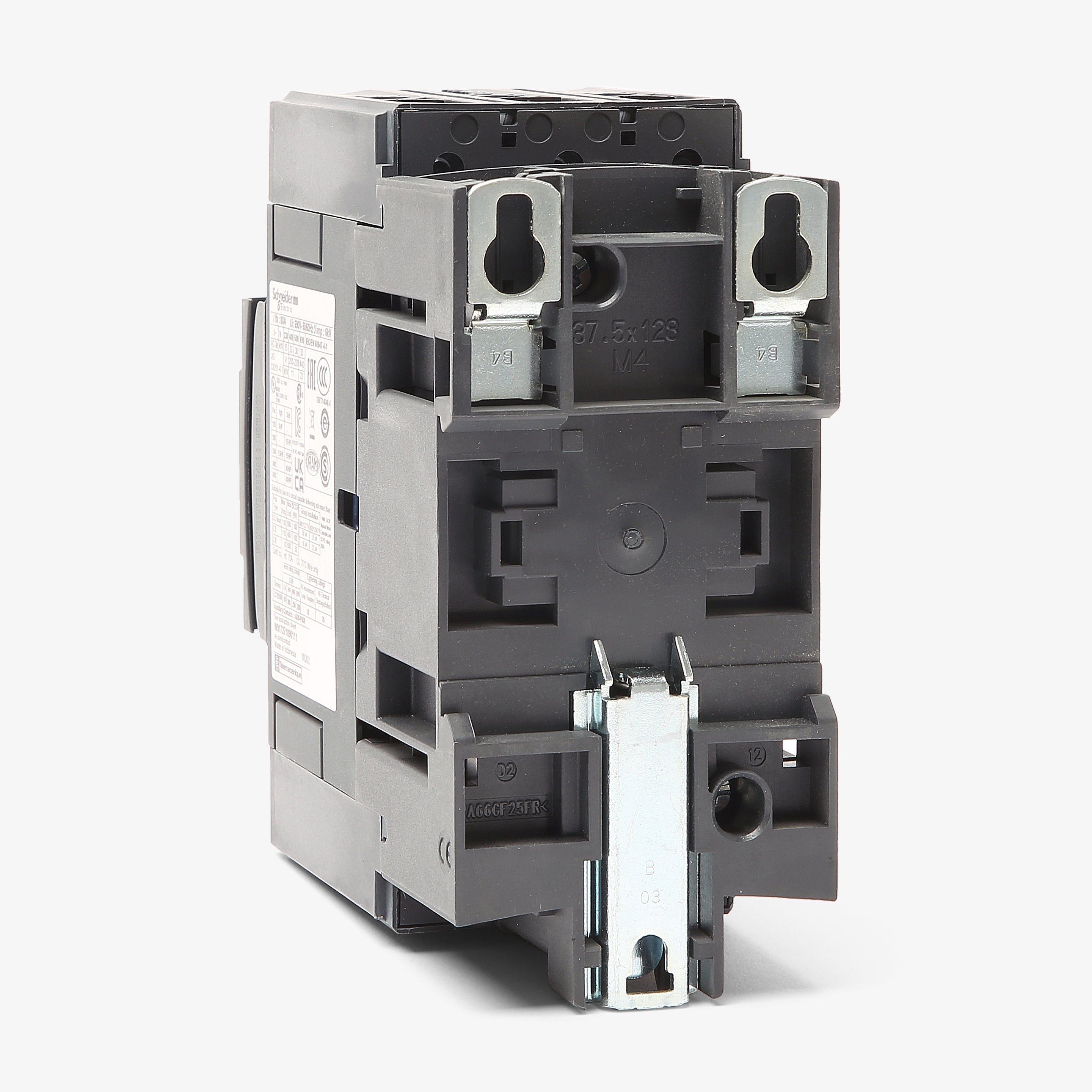

The LC1D50AG7 contactor offers high reliability with long mechanical and electrical life. It can be panel or DIN rail mounted.

Product Information

Standard Information

• Brand: SCHNEIDER ELECTRIC
• Manufacturer Part Number: LC1D50AG7

Technical Specifications

• Series: LC1
• Amperage: 50
• Voltage: 600/690VAC, 300VDC
• Poles: 3
• Phase: 3
• Mounting Type: Din Rail
• Approval: UL, CSA, EN, IEC, CCC, Marine, EAC, UKCA, CB, BV, DNV, GL, GOST, LROS, RINA
• Terminal Connection: Screw Clamp
• Length (in): 4.72
• Width (in): 2.17
• Height (in): 4.8
• For Use With: LC1-D Series Motor Control Systems
• Standards: RoHS, REACh
• Temperature Rating: -40 to 140 °F
• Action: Non-Reversing
• Contact Configuration: 1NO, 1NC

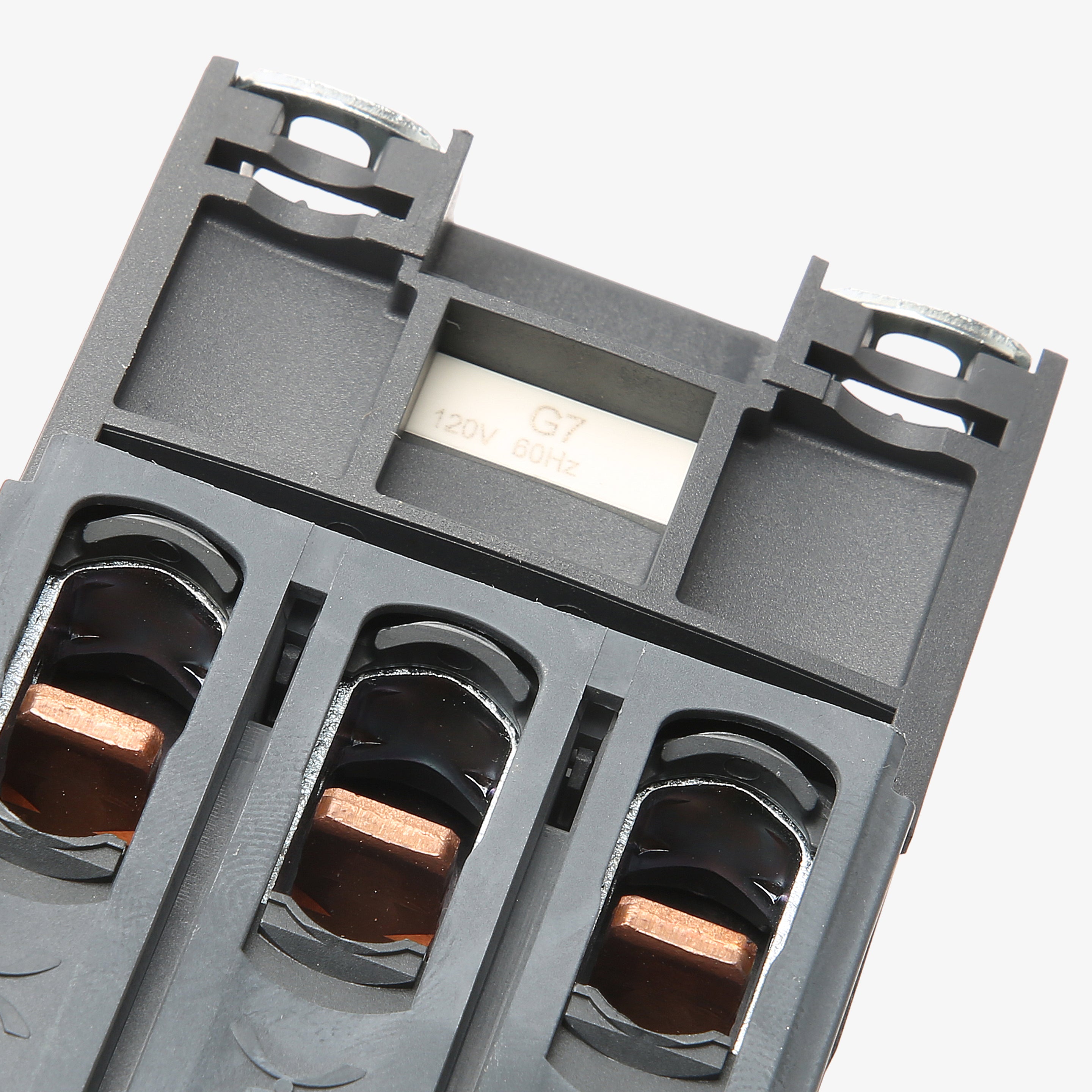

• Coil Volts: 120VAC at 50/60Hz
• Mpn: LC1D50AG7
• Horsepower Rating: 40 hp
• Maximum Operating Temperature: 60 °C
• Minimum Operating Temperature: -5 °C
• Power Rating: 30 kW
• Primary Type: IEC Contactor
• Temperature Operating Range: -5 to 60 C
• Termination: Screw clamp
• Type: D-Line Standard, LC1D D-Line Standard
• Operating Cycles: 3600 Cycles/hr
• Coil Power Rating: 13/16 VA, 140/160 VA Inrush, 13/15 VA Hold-In
• Contact Rating: 10/60 A at 440 V AC, 60 to 80 A at 440 V AC, 10/60 A at 440 VAC, 60 to 80 A at 440 VAC
• Wattage: 9.6/3.7 W
• Power factor: 0.75 Inrush, 0.3 Hold-In
