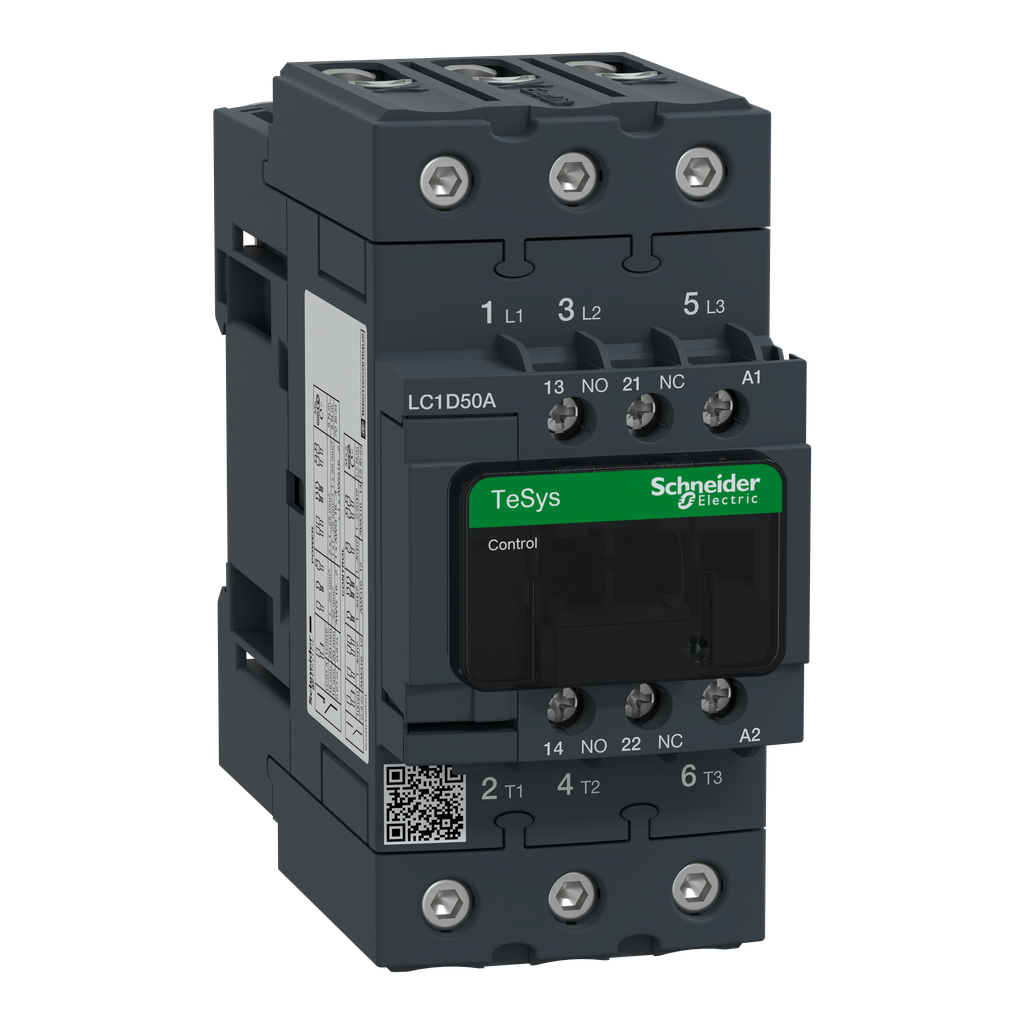

Schneider Electric LC1D50AB7 24 VAC 50 Amp 3-Pole Non-Reversing Contactor

Product Description

The Schneider Electric LC1D50AB7 is a 24 volt alternating current contactor designed for various industrial applications. It is capable of handling inductive loads up to fifty amps with a three-pole configuration, making it suitable for motor control tasks. This contactor can be mounted on DIN rails or directly onto panels, providing flexibility in installation.

• Coil Voltage: Twenty-four VAC at fifty or sixty hertz
• Contact Ratings: Sixteen horsepower at two hundred to two hundred eight VAC, fifteen horsepower at two hundred forty VAC, and forty horsepower at four hundred eighty VAC
• Operating Temperature: Ranges from negative forty to seventy degrees Celsius

Product Highlights

This contactor is certified by UL, CSA, and IEC standards. It features a built-in normally open and normally closed contact, allowing for versatile control in electrical circuits.

Product Information

Standard Information

• Catalog Number: LC1D50AB7
• Brand: Schneider Electric

Technical Specifications

• Height: four point eight inches
• Width: two point seventeen inches
• Depth: four point seventy-two inches
• Weight: one point eighty-seven pounds
• Contact Configuration: one normally open and one normally closed
• Mounting Type: DIN rail
• Operating Cycles: up to three thousand six hundred cycles per hour
• Coil Voltage: twenty-four VAC
