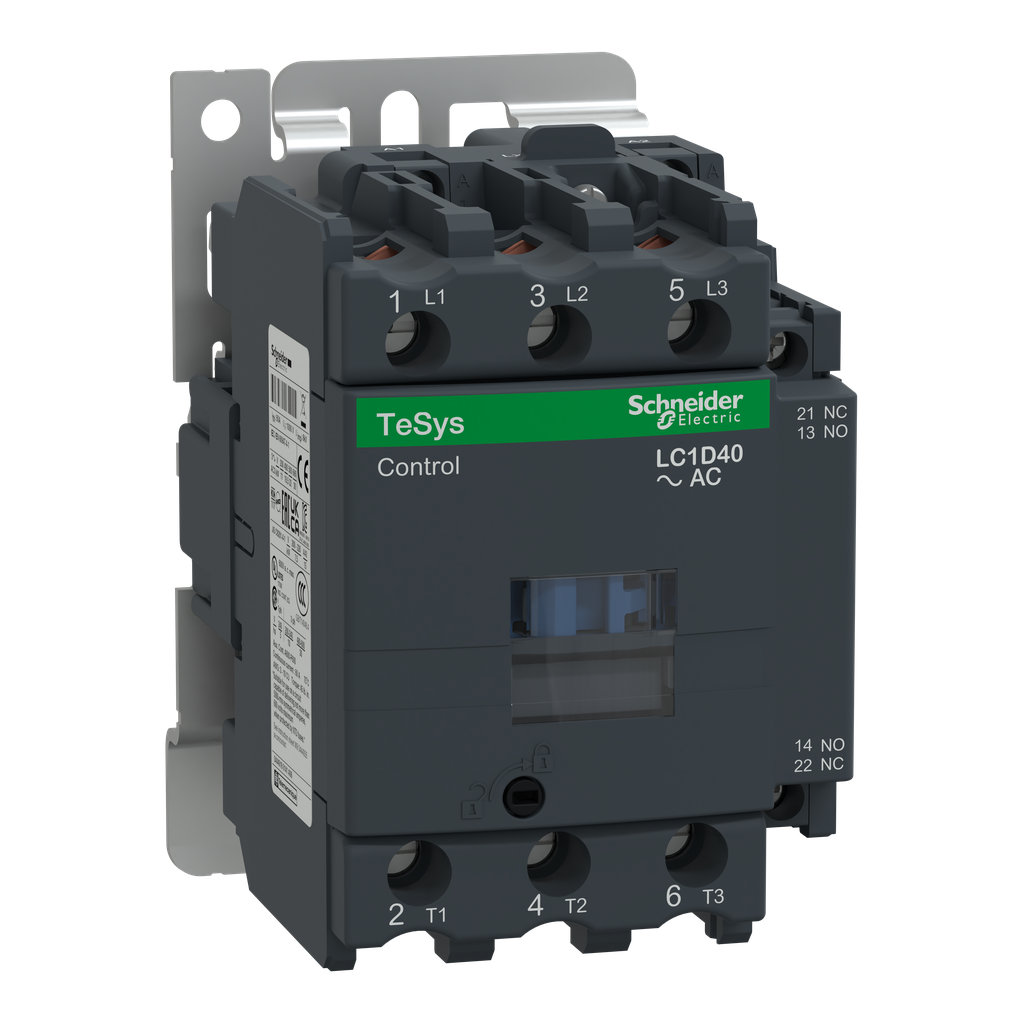

Schneider Electric LC1D40F7 Square D 600 VAC 40 Amp 3-Pole Non-Reversing IEC Contactor

Product Description

Schneider Electric presents the LC1D40F7, a 40 amp, 600 VAC, three pole non-reversing IEC contactor designed for various motor control applications. Its compact design allows for easy mounting on DIN rails or directly onto panels, making it versatile for installations. The contactor supports multiple ratings, with specifications catering to both inductive and resistive loads, making it suitable for a range of industrial processes.

• Rated for 10 HP at 200 to 208 VAC, 10 HP at 240 VAC, 30 HP at 480 VAC, and 30 HP at 600 VAC three-phase.
• Comes with a 110 VAC coil, featuring one normally open and one normally closed auxiliary contact.
• Meets UL, CSA, IEC, CCC, EAC, and Marine standards for reliable performance.

Product Highlights

This contactor is ideal for use in applications requiring enhanced motor control, with sustainability features that comply with RoHS standards.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: LC1D40F7
• Voltage: 690 Volt
• Coil Voltage: 110 VAC 50/60 Hz
• Weight: 1.87 lbs
• Dimensions: 4.80 inches tall, 2.17 inches wide, 4.72 inches deep
• Contact Configuration: 1 NO + 1 NC, 3 NO
• Country of Origin: Czech Republic
• Warranty: 18 months
