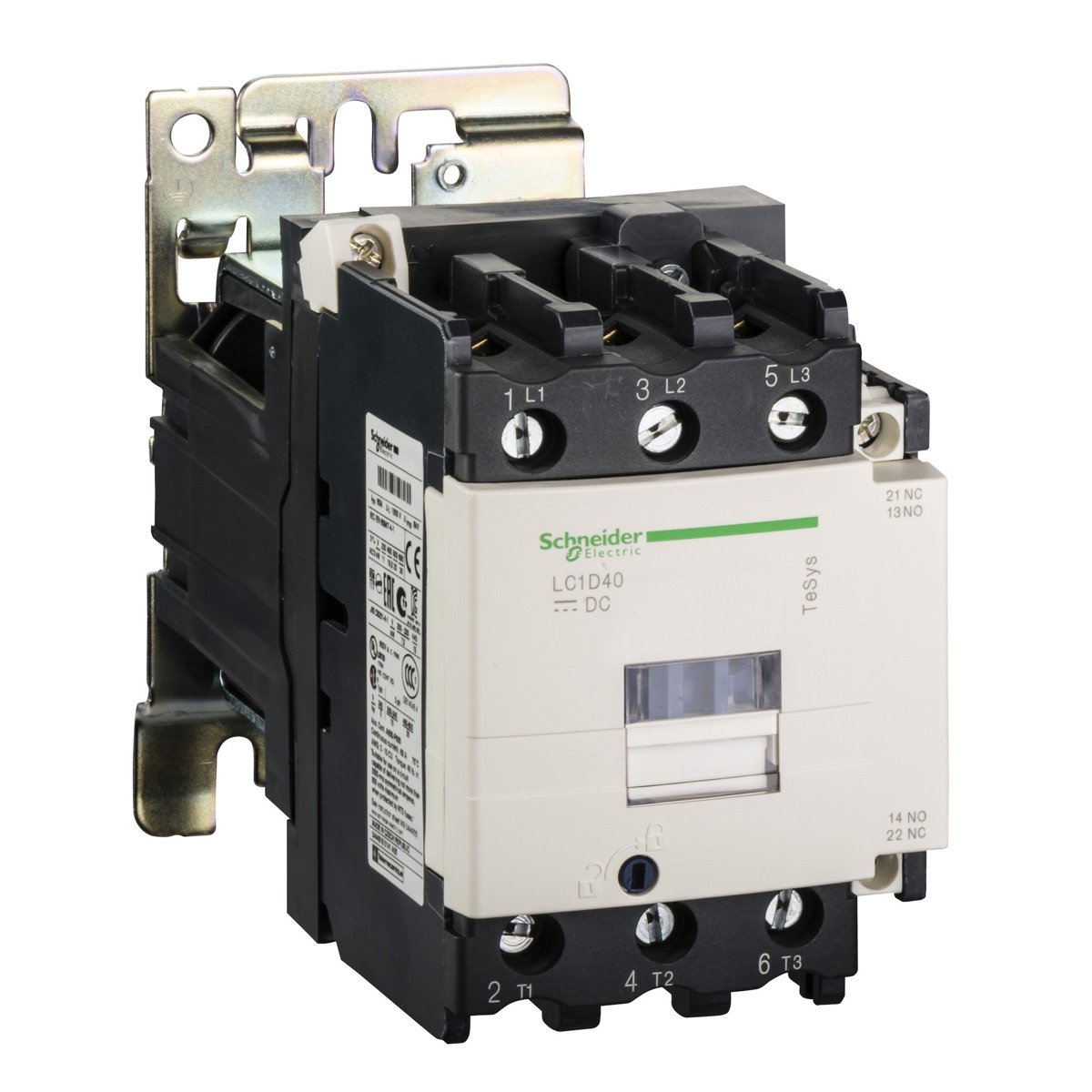

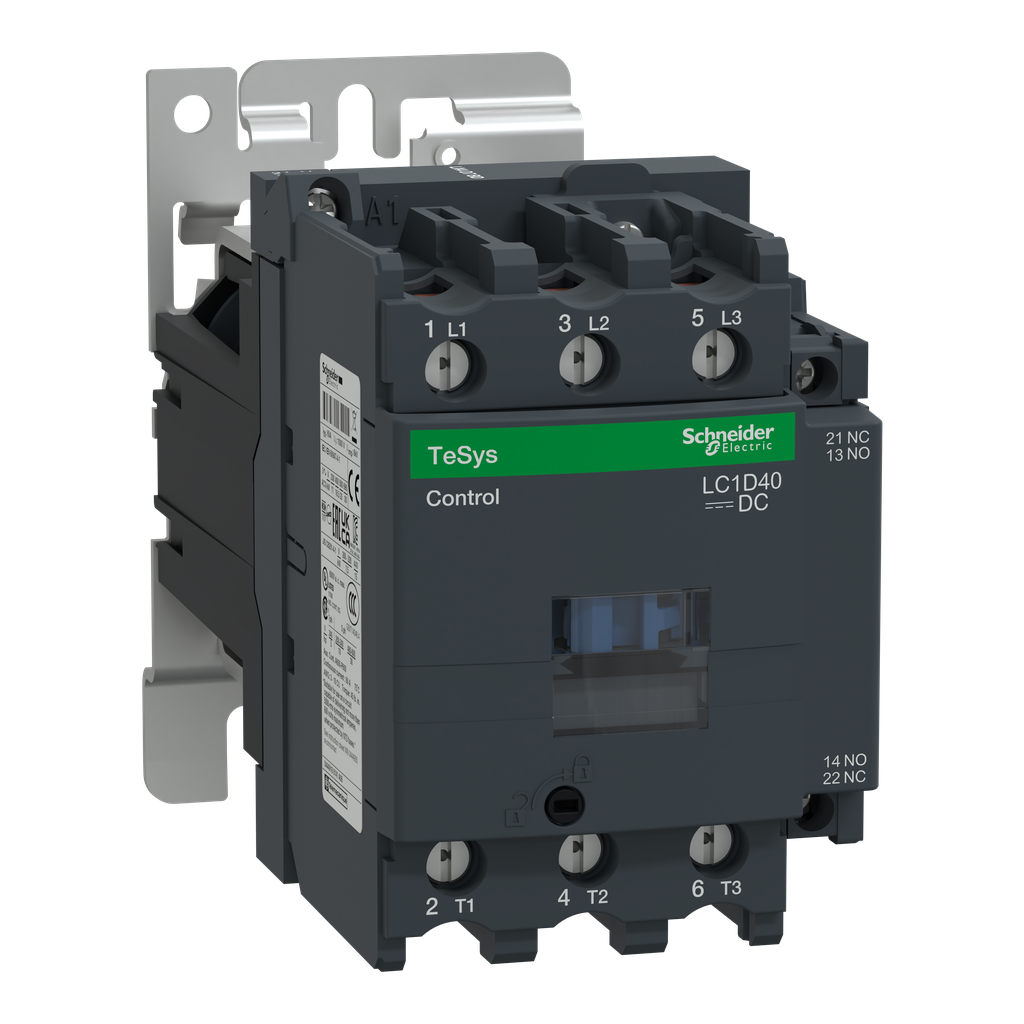

Schneider Electric LC1D40BD Square D 600 VAC 40 Amp 3-Pole 1NO 1NC Screw Terminal Full Voltage Non-Reversing IEC Contactor

Product Description

Schneider Electric LC1D40BD is a square D IEC contactor designed for integration into control systems. This full voltage, non-reversing contactor manages loads in electrical motor applications. It is suitable for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. Its compact design allows for installation on a DIN rail or directly on a panel. The device features a robust coil voltage of twenty-four volts DC and comes with built-in protection features.

• Rated for ten horsepower at two hundred to two hundred eight volts AC
• Includes one normally open and one normally closed auxiliary contact
• Complies with international standards including UL, CSA, and IEC

Product Highlights

This contactor is versatile for various applications, ensuring reliable motor control and efficient performance.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Catalog Number: LC1D40BD

Technical Specifications

• Voltage: 690 Volt
• Wattage: 14 Watt at 24 Volt DC
• Coil Voltage: 24 Volt DC
• Height: 4.80 inches
• Width: 2.17 inches
• Depth: 4.72 inches
• Weight: 1.87 pounds
• Country of Origin: Czech Republic
