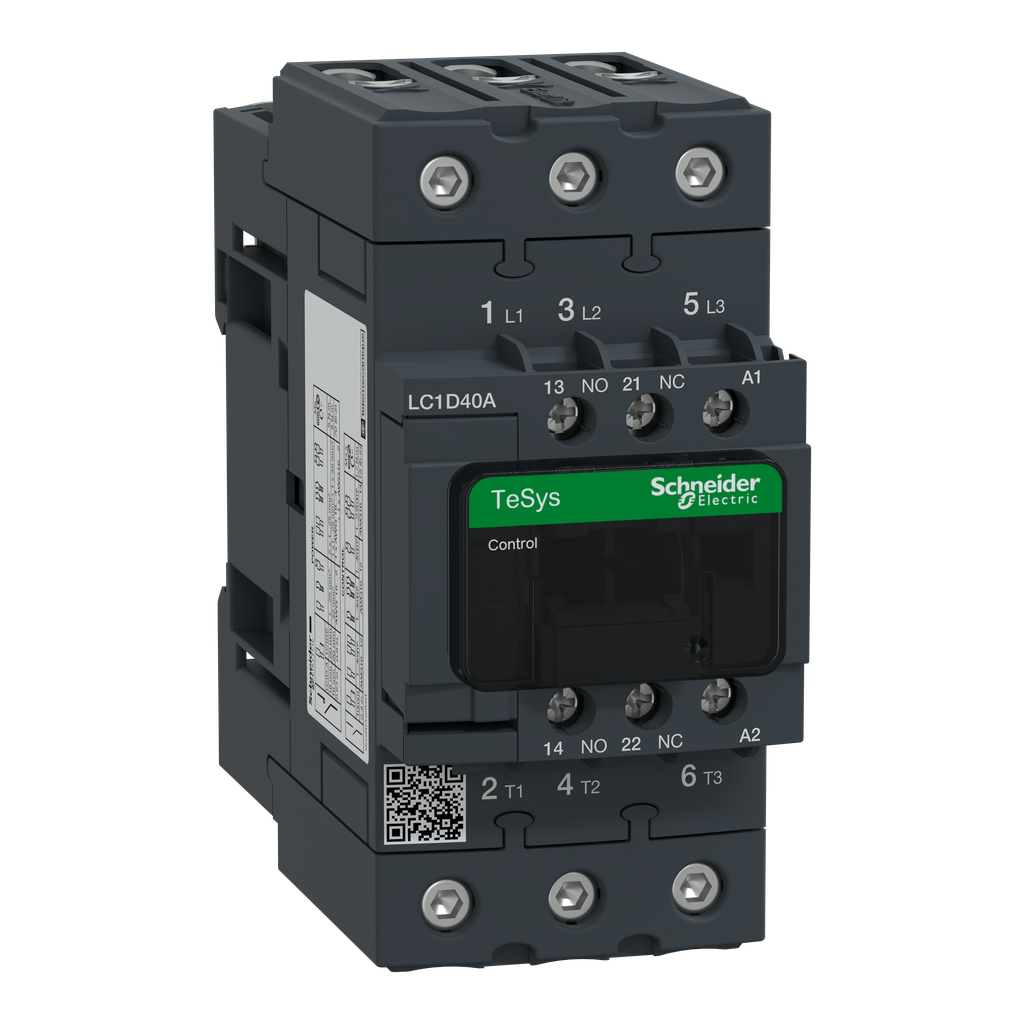

Schneider Electric LC1D40AT7 IEC Contactor 480 VAC 40 Amp 3-Pole 1NO 1NC

Product Description

Schneider Electric LC1D40AT7 is an IEC contactor designed for motor control applications. This 40 amp, three-pole contactor operates at 480 VAC and is suitable for inductive loads. The device features one normally open and one normally closed auxiliary contact. It can be mounted on a DIN rail or directly onto a panel. The contactor supports both horsepower and kilowatt ratings, ensuring international compatibility. Rated for ten horsepower at two hundred to two hundred eight VAC, it can handle up to thirty horsepower at four hundred eighty VAC.

• Rated for maximum of thirty horsepower at four hundred eighty VAC
• Features screw clamp terminals for secure connections
• Complies with UL, CSA, IEC, CCC, EAC, and Marine standards

Product Highlights

The Schneider Electric LC1D40AT7 is ideal for creating motor starters and provides high performance for a variety of industrial applications.

Product Information

Standard Information

• Catalog Number: LC1D40AT7
• Manufacturer: Schneider Electric

Technical Specifications

• Coil Voltage: 480 V AC 60 Hz
• Depth: 4.72 inches
• Width: 2.17 inches
• Height: 4.80 inches
• Weight: 1.87 lbs
• Applications: Motor control, resistive load
• Operating Temperature: -40 to 70 degrees Celsius
• Warranty: 18 months
