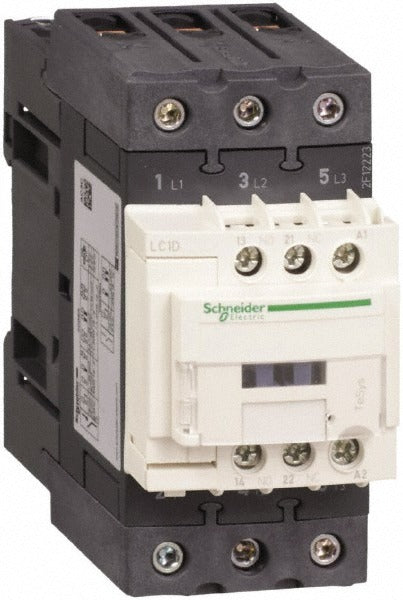

Schneider Electric LC1D40AM7 Iec Contactor 40A 220VAC

Product Description

The SCHNEIDER ELECTRIC LC1D40AM7 is a 3-pole, non-reversible IEC contactor rated at 40 amps at 440 VAC, designed for motor control and load-switching applications in commercial and industrial electrical systems. It operates on a 220 VAC coil voltage at 50/60 Hz, making it suitable for international and domestic installations. The unit includes a built-in auxiliary contact block configured with one normally closed (NC) and one normally open (NO) contact, supporting control circuit integration without additional add-on blocks. Licensed electricians and industrial maintenance technicians are the primary installers. The contactor conforms to EN/IEC 60947-4-1 and is UL Listed under UL 508.

The LC1D40AM7 fits into motor branch circuit control panels, machine control enclosures, and HVAC equipment control panels where a non-reversible 3-pole contactor is required. The 220 VAC coil rating suits applications wired to standard international control transformer secondary voltages. The integrated NC/NO auxiliary contact configuration allows direct wiring of pilot lights, interlock circuits, or PLC input modules without a separate auxiliary contact block. This contactor is sized for loads up to 40A at 440 VAC, covering a wide range of 3-phase motor starters and resistive load switching scenarios in both light industrial and commercial building systems.

Key Features

• 3-pole, non-reversible design rated at 40 amps at 440 VAC
• 220 VAC coil at 50/60 Hz for broad international compatibility
• Integrated NC and NO auxiliary contact for control circuit wiring
• UL Listed (UL 508) and CSA certified for North American installations
• Compliant with EN/IEC 60947-4-1 and EN/IEC 60947-5-1 international standards
• RoHS compliant construction

Compatibility

Designed as an OEM-style IEC contactor replacement for 3-pole, non-reversible motor starter and load-switching applications requiring a 220 VAC control coil.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and applicable local codes. De-energize and lock out the panel or control circuit before mounting or wiring the contactor. Verify that the supply control voltage matches the 220 VAC coil rating before energizing. Do not use this contactor in reversing starter configurations without appropriate reversing interlocks and a matched contactor pair.
