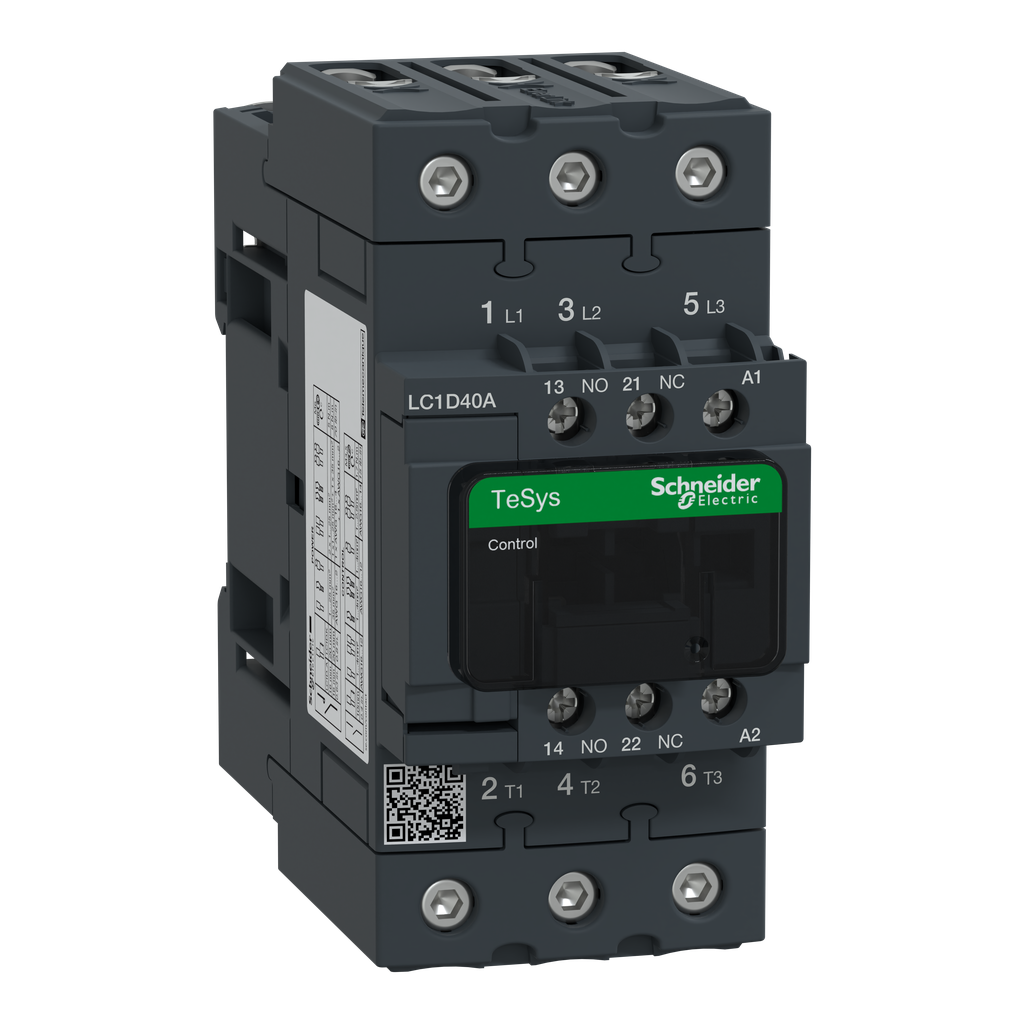

Schneider Electric LC1D40AG7 120 VAC 40 Amp 3-Pole 1NO 1NC Screw Terminal Full Voltage Non-Reversing IEC Contactor

Product Description

The Schneider Electric LC1D40AG7 is a 120 VAC contactor designed for various industrial applications. It operates efficiently at a maximum current of forty amps and features three poles. The LC1D40AG7 can be integrated into control systems easily, making it suitable for motor starters in numerous setups. This contactor is rated for inductive loads and can handle a voltage capacity of up to six hundred VAC.

• Rated for 10HP at 200 to 208VAC, 10HP at 240VAC, 30HP at 480VAC, and 30HP at 600VAC.
• Compatible with both 120VAC and 240VAC coil voltages for versatile installation.
• Includes one normally open and one normally closed auxiliary contact, ensuring efficient operation.

Product Highlights

This contactor is built for reliability and easy integration into existing systems.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: LC1D40AG7

Technical Specifications

• Voltage: 120 VAC
• Current Rating: 40 Amps
• Number of Poles: 3
• Auxiliary Contacts: 1 NO + 1 NC
• Coil Frequency: 50/60 Hz
• Dimensions: Height - 4.80 inches, Width - 2.17 inches, Depth - 4.72 inches
• Weight: 1.87 lbs
• Certifications: UL, CSA, IEC, CCC, EAC
• Application: Motor control, resistive load
• Mounting Type: DIN rail or panel
