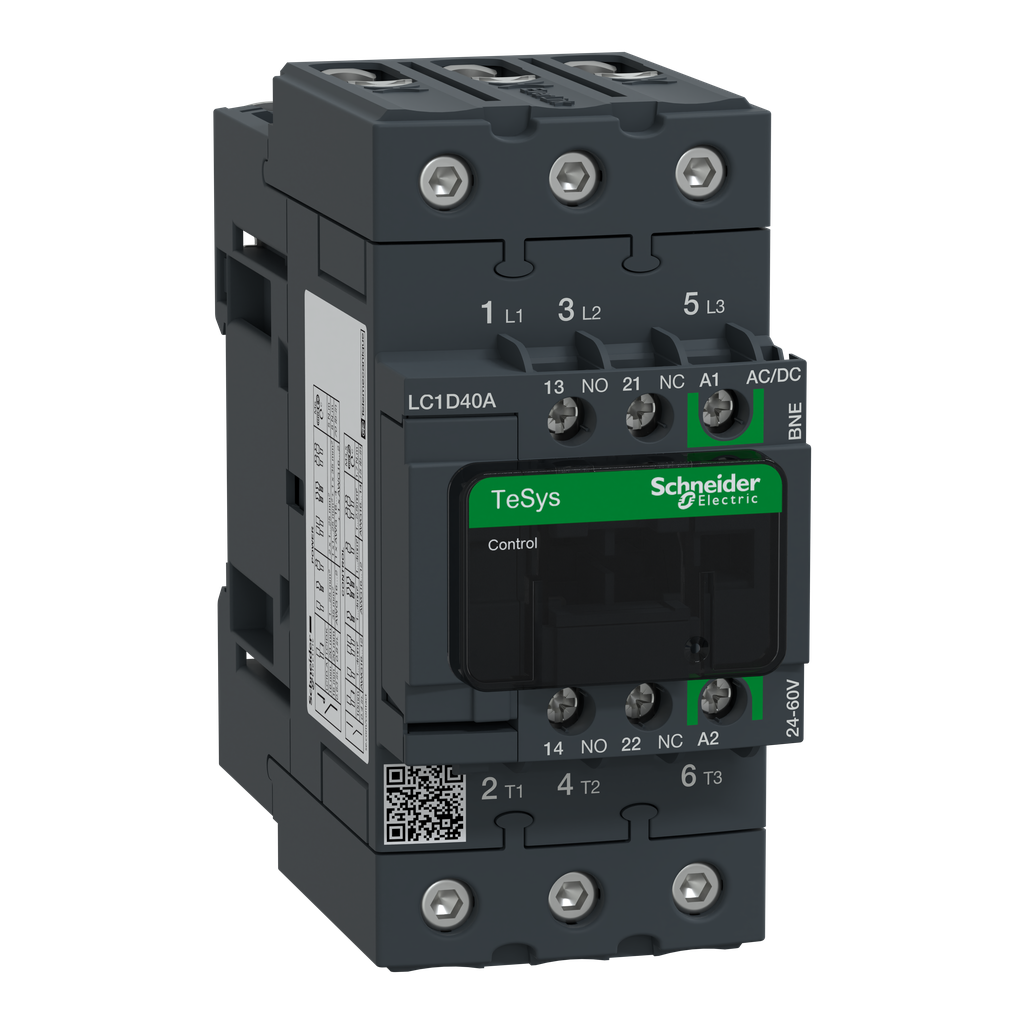

Schneider Electric LC1D40ABNE SQD IEC Contactor 40A - 30HP at 480VAC

Product Description

The Schneider Electric LC1D40ABNE is a TeSys D Green IEC contactor designed for integration into control systems. This 40A contactor can operate in both inductive and resistive motor applications, making it versatile for various uses. It is suitable for mounting on DIN rail or directly to panels. The device is rated for multiple voltage levels including 10HP at 200 to 208VAC, 30HP at 480VAC, and 5HP at 240VAC in single-phase configurations.

• Electronic coil, compatible with AC and DC, operates on 24-60V.
• Includes built-in normally open and normally closed auxiliary contacts.
• Designed to meet international standards for safety and efficiency.

Product Highlights

Ideal for motor control and automation tasks, the LC1D40ABNE can handle significant load capacities with high short-circuit current ratings (SCCR) of up to 100kA.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Catalog Number: LC1D40ABNE

Technical Specifications

• Coil Voltage: 24...60 V AC 50/60 Hz; 24...60 V DC
• Application: Resistive load; motor control
• Contact Configuration: 1 NO + 1 NC; 3 NO
• Mounting: Rail Plate
• Operating Temperature: -25 to 60 degrees C
• Certifications: UL, CSA, IEC, RoHS/REACh
• Dimensions: 4.80 inches tall, 2.17 inches wide, 4.72 inches deep
• Weight: 2.19 lbs
