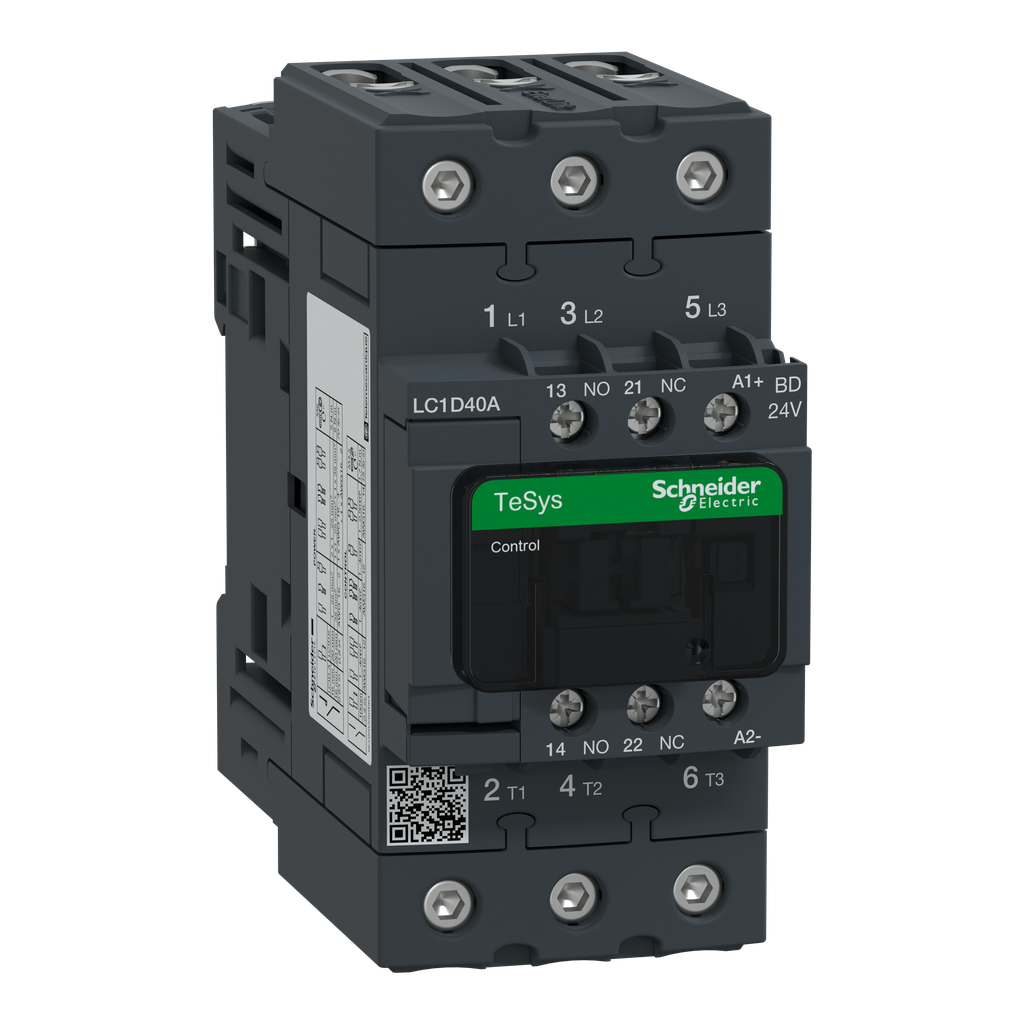

Schneider Electric LC1D40ABD Square D 24 VDC 40 Amp 3-Pole 1NO 1NC Screw Terminal Full Voltage Non-Reversing IEC Contactor

Product Description

Schneider Electric's LC1D40ABD is a 24 VDC, 40 Amp, 3-Pole, IEC Contactor designed for seamless integration into control systems. This contactor supports motor starters for a wide range of applications. It is suitable for inductive loads up to 150 full-load amps and resistive loads up to 200 amps. The LC1D40ABD can be installed on a DIN rail or mounted directly on a panel.

• Rated for 10HP at 200 to 208VAC and 10HP at 240VAC.
• Supports 30HP at 480VAC and 30HP at 600VAC for three-phase setups.
• Features one normally open and one normally closed auxiliary contact.

Product Highlights

This contactor provides reliable performance with a high Short-Circuit Current Rating (SCCR) of up to 100kA when used with compliant circuit breakers and fuses. A transient suppressor module is included for added protection. Its compact dimensions of four point eight inches in height, two point seventeen inches in width, and four point seventy-two inches in depth make it versatile for various installations.

Product Information

Standard Information

• Brand: Schneider Electric
• Catalog Number: LC1D40ABD

Technical Specifications

• Coil Voltage: 24 VDC
• Application: Resistive load; Motor control
• Weight: 1.87 lbs
• Dimensions: 4.80 inches (H) x 2.17 inches (W) x 4.72 inches (D)
• Certifications: UL, CSA, IEC, CCC, EAC
• Operating Temperature: -40 to 70 degrees Celsius
• Special Features: Built-in transient suppressor
