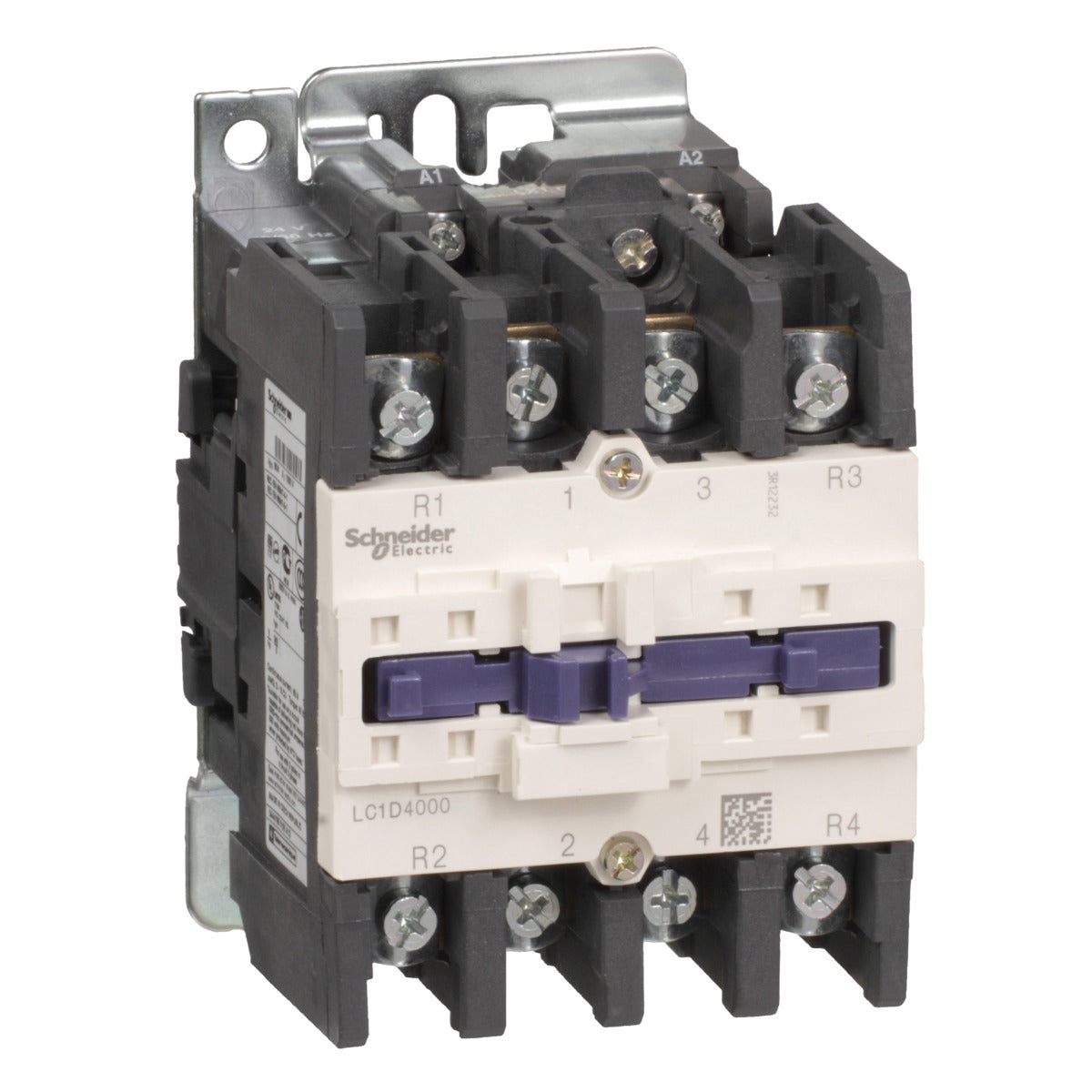

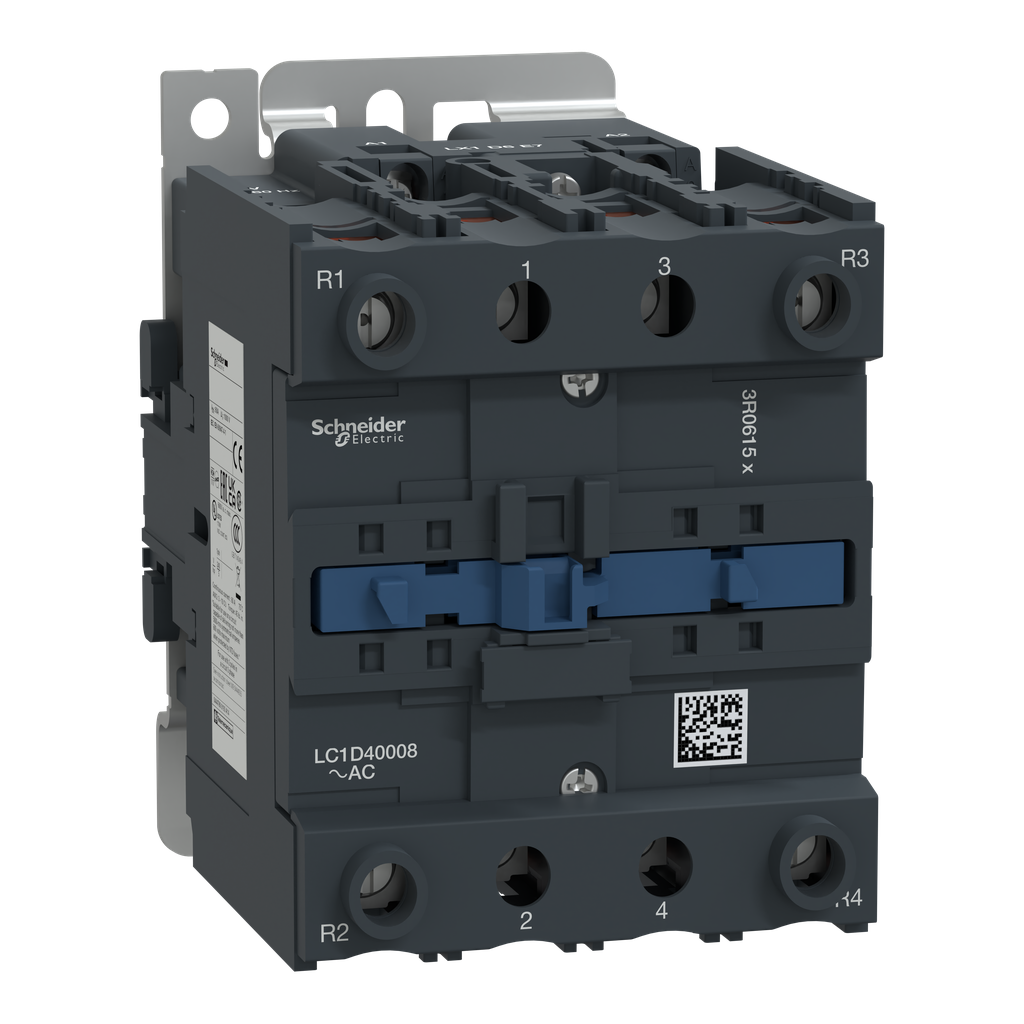

Schneider Electric LC1D40008G6 IEC Contactor 575 VAC 40 Amp 4-Pole 1NO 1NC

Product Description

The Schneider Electric LC1D40008G6 IEC Contactor is designed for seamless use in control systems. This 4-pole contactor is perfect for motor starters across various applications. It supports inductive motor operations up to 150 full-load amps and resistive loads rated up to 200 amps.

• Coil supplied at 120 VAC and 60 Hz
• Includes two normally open and two normally closed contacts
• Mountable on DIN rail or directly to a panel

Product Highlights

This contactor features a quick setup with screw clamp terminals for easy connections. It is certified for multiple standards including UL and CSA. It offers an operational temperature range from minus forty to seventy degrees Celsius.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Catalog Number: LC1D40008G6

Technical Specifications

• Voltage: 575 VAC
• Coil Voltage: 120 V AC 60 Hz
• Contact Configuration: 2 NO + 2 NC
• Weight: 3.17 lb
• Width: 3.35 inches
• Height: 5.00 inches
• Depth: 4.92 inches
• RoHS Compliant: Yes
