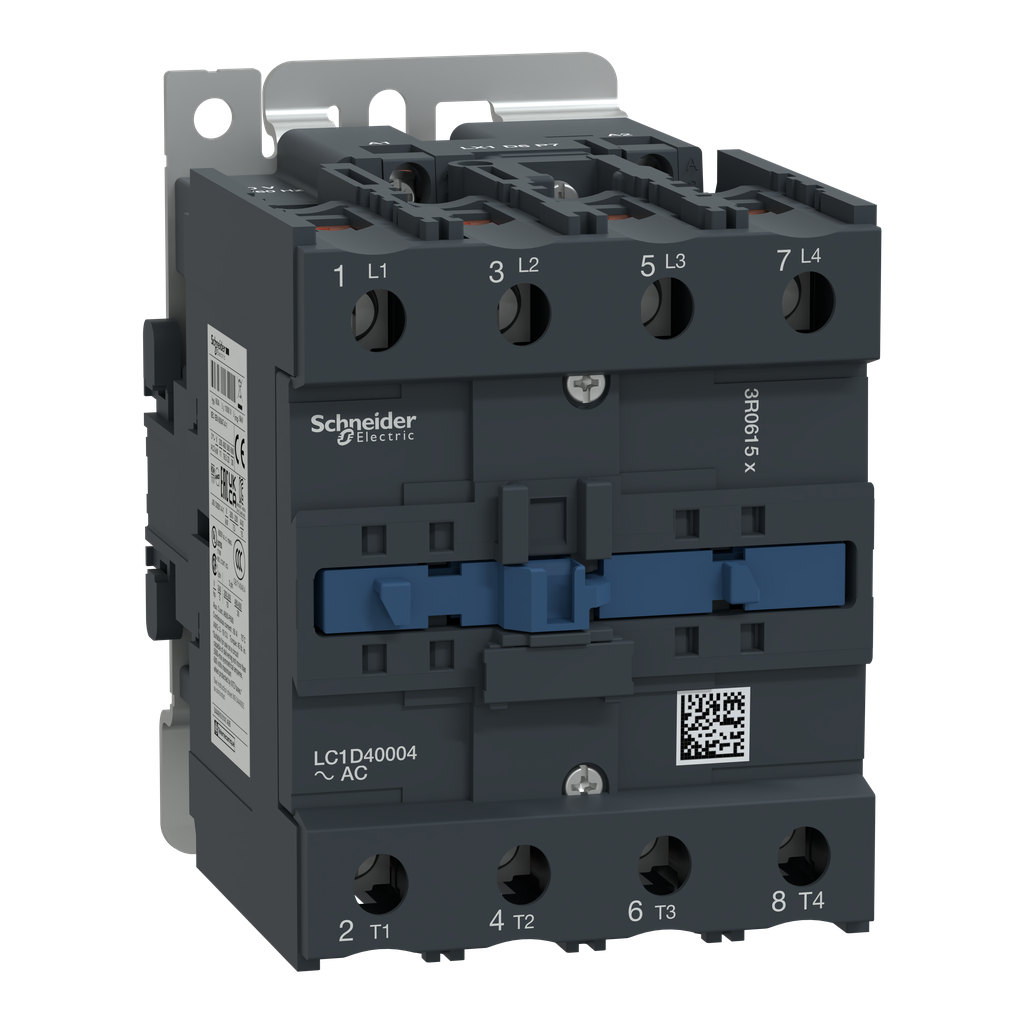

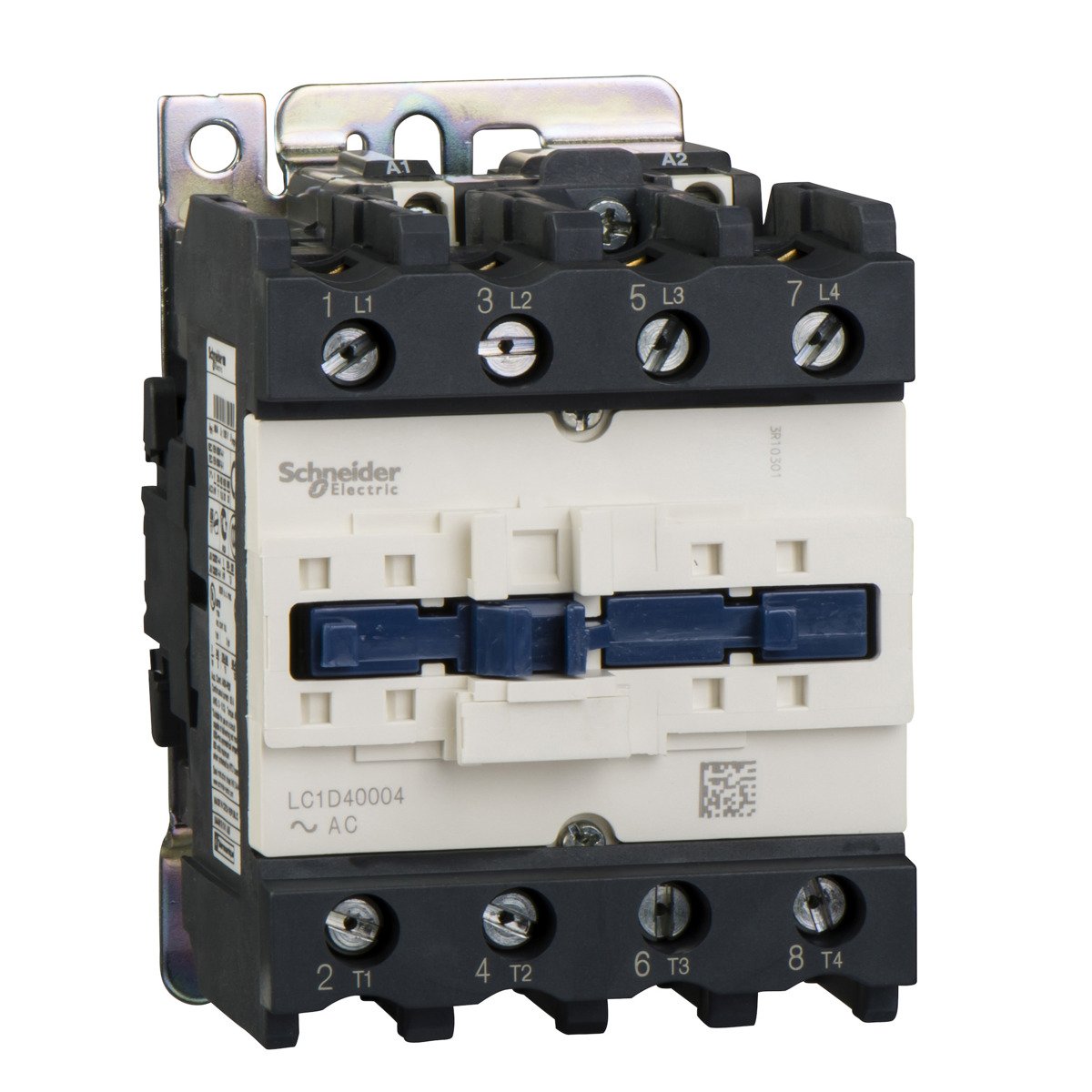

Schneider Electric LC1D40004G6 Square D 575 VAC 40 Amp 4-Pole 1NO 1NC Screw Terminal Full Voltage Non-Reversing IEC Contactor

Product Description

Schneider Electric LC1D40004G6 is a 4-pole IEC contactor designed for integration into control systems. It is suitable for various applications, including motor starters for inductive loads up to 150 full-load amps and resistive loads up to 200 amps. The contactor features four normally open power contacts rated at 60 amps for resistive loads. It operates on a coil voltage of 120 VAC and is certified for multiple standards including UL, CSA, and IEC. The dimensions are five inches tall, three point thirty-five inches wide, and four point ninety-two inches deep, weighing three point seventeen pounds. The product meets RoHS/REACh requirements, offering a Green Premium certification.

• 4-pole design for various applications
• 120 VAC, 60 Hz coil power supply
• Screw terminal connections for load and auxiliary

Product Highlights

This contactor is designed for reliability and ease of installation in a variety of control systems.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Catalog Number: LC1D40004G6

Technical Specifications

• Coil Voltage: 120 V AC 60 Hz
• Contact Configuration: 4 Normally Open
• Weight: 3.17 lbs
• Dimensions: 5.00 inches tall x 3.35 inches wide x 4.92 inches deep
• Rated Power: 60A resistive load
• Mounting: DIN rail or panel mount
• Warranty Length: 18 months
