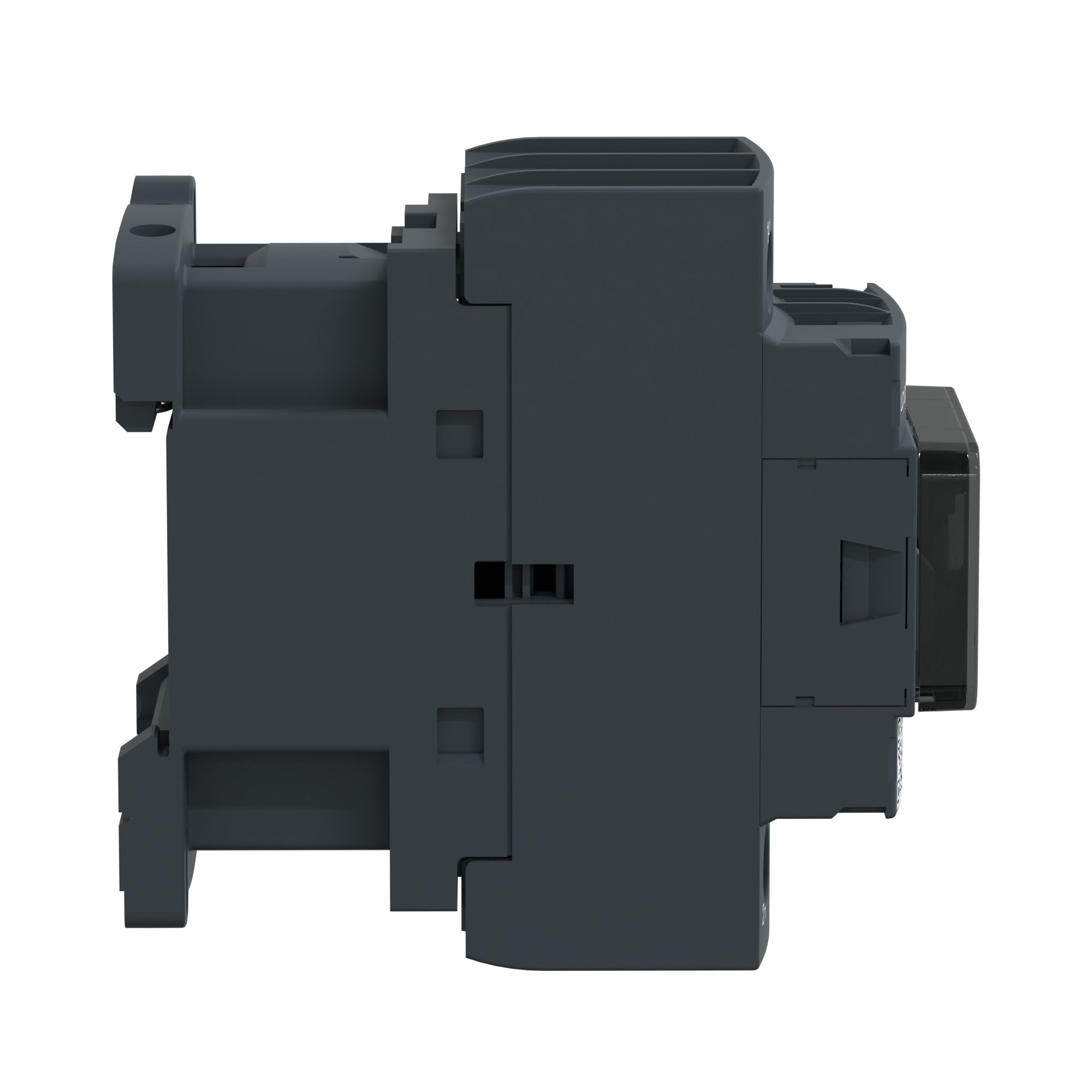

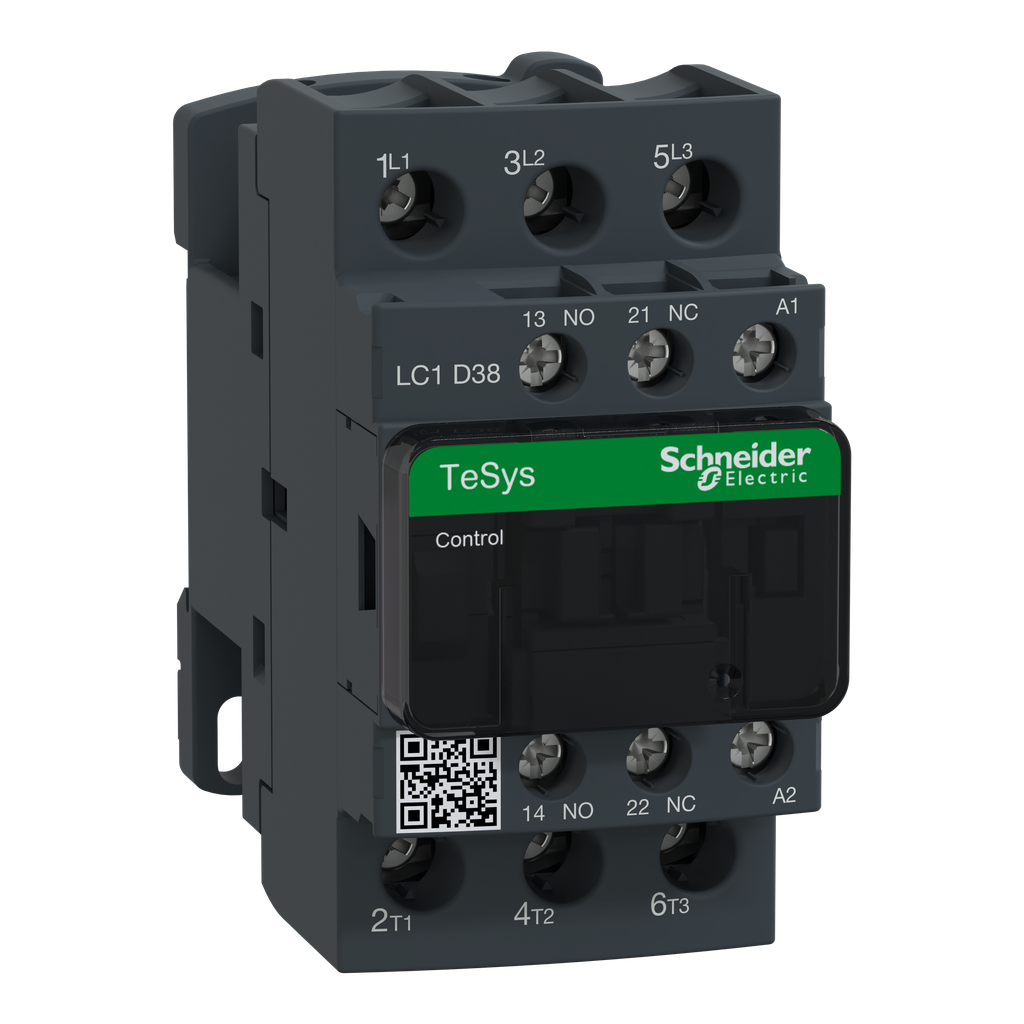

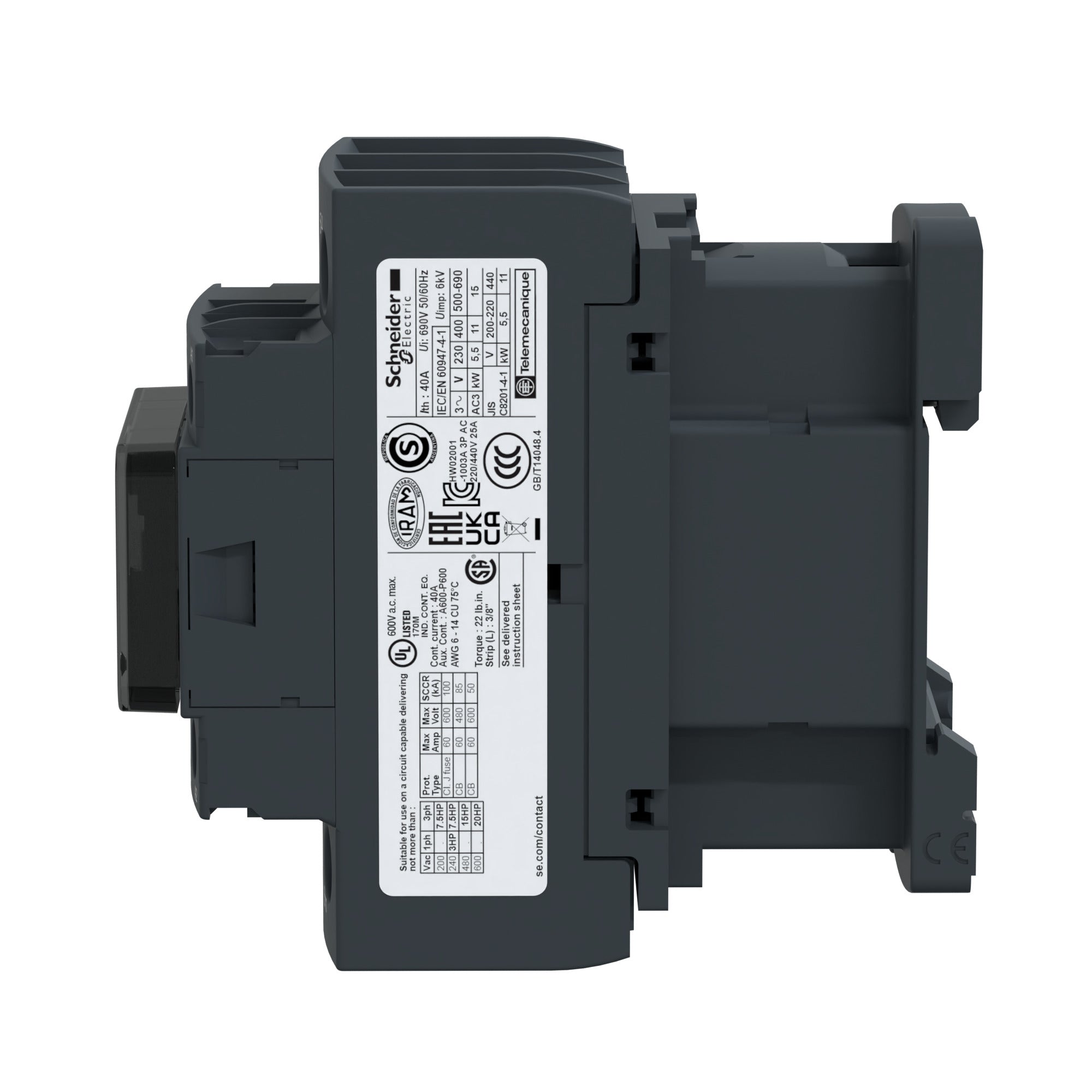

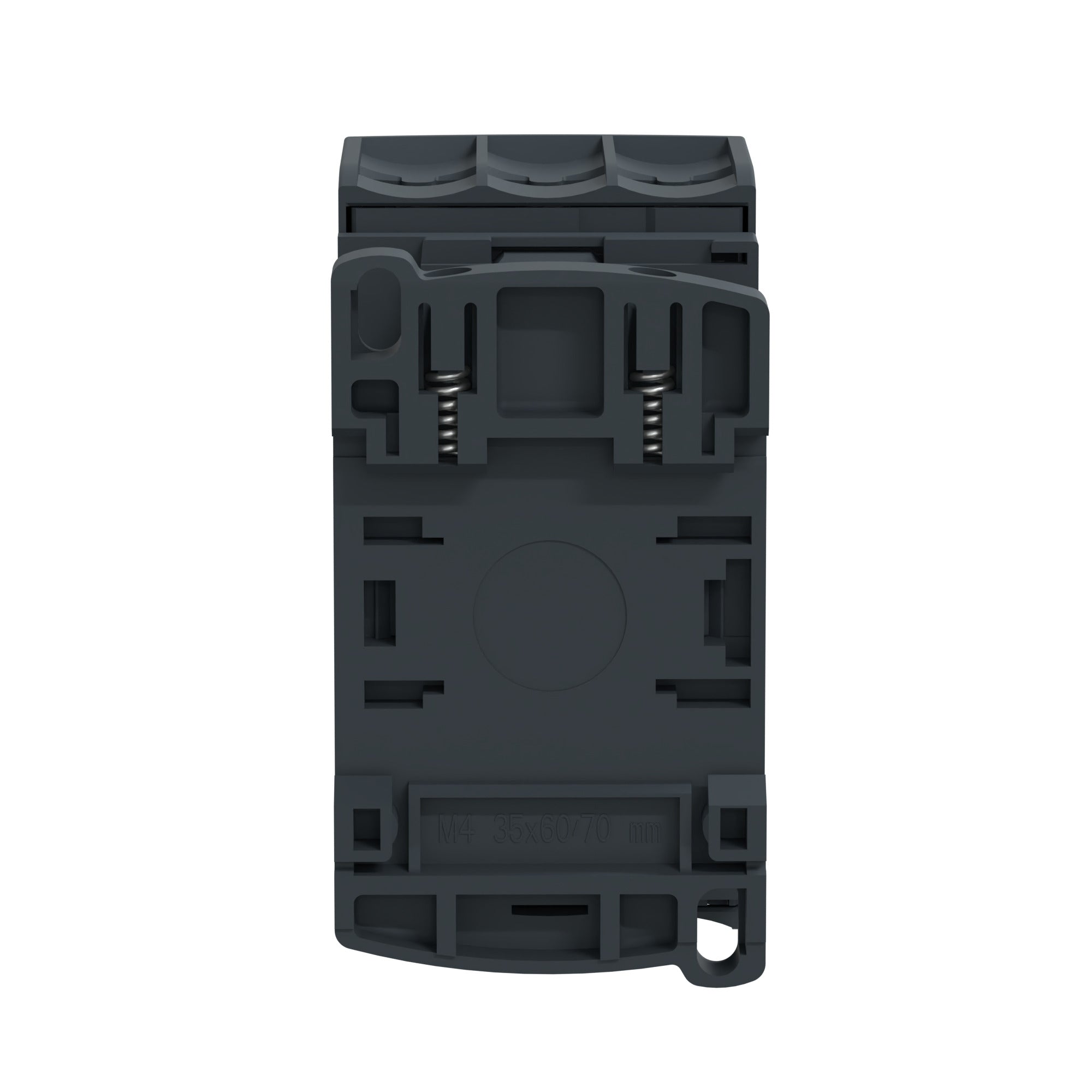

Schneider Electric LC1D38P7 Square D 575 VAC 38 Amp 3-Pole 1NO 1NC Screw Terminal Full Voltage Non-Reversing IEC Contactor

Product Description

The Schneider Electric LC1D38P7 is a three-pole, full voltage non-reversing IEC contactor suitable for motor control and automation applications. Rated for up to thirty-eight amps at five hundred seventy-five volts AC, this contactor integrates seamlessly into control systems. It supports motor configurations for various applications with multiple horsepower ratings, making it versatile for industrial use.

• Compact design allows for DIN rail or direct panel mounting.
• Includes one normally open and one normally closed auxiliary contact.
• Compatible with a variety of accessories for enhanced functionality.

Product Highlights

This contactor is suitable for inductive motor applications up to one hundred fifty full-load amps. It can handle a range of resistive loads, providing flexibility in setup. With a coil voltage of two hundred thirty volts AC at fifty or sixty hertz, it is compliant with relevant safety standards, including UL and CSA.

Product Information

Standard Information

• Catalog Number: LC1D38P7
• Manufacturer: Schneider Electric

Technical Specifications

• Height: 3.35 inches
• Width: 1.77 inches
• Depth: 3.62 inches
• Weight: 0.84 lbs
• Voltage Rating: 575 VAC
• Horsepower Ratings: 10HP at 240VAC; 20HP at 480VAC; 25HP at 600VAC
• SCCR: Up to 100kA
• Certifications: UL, CSA, IEC, EAC
