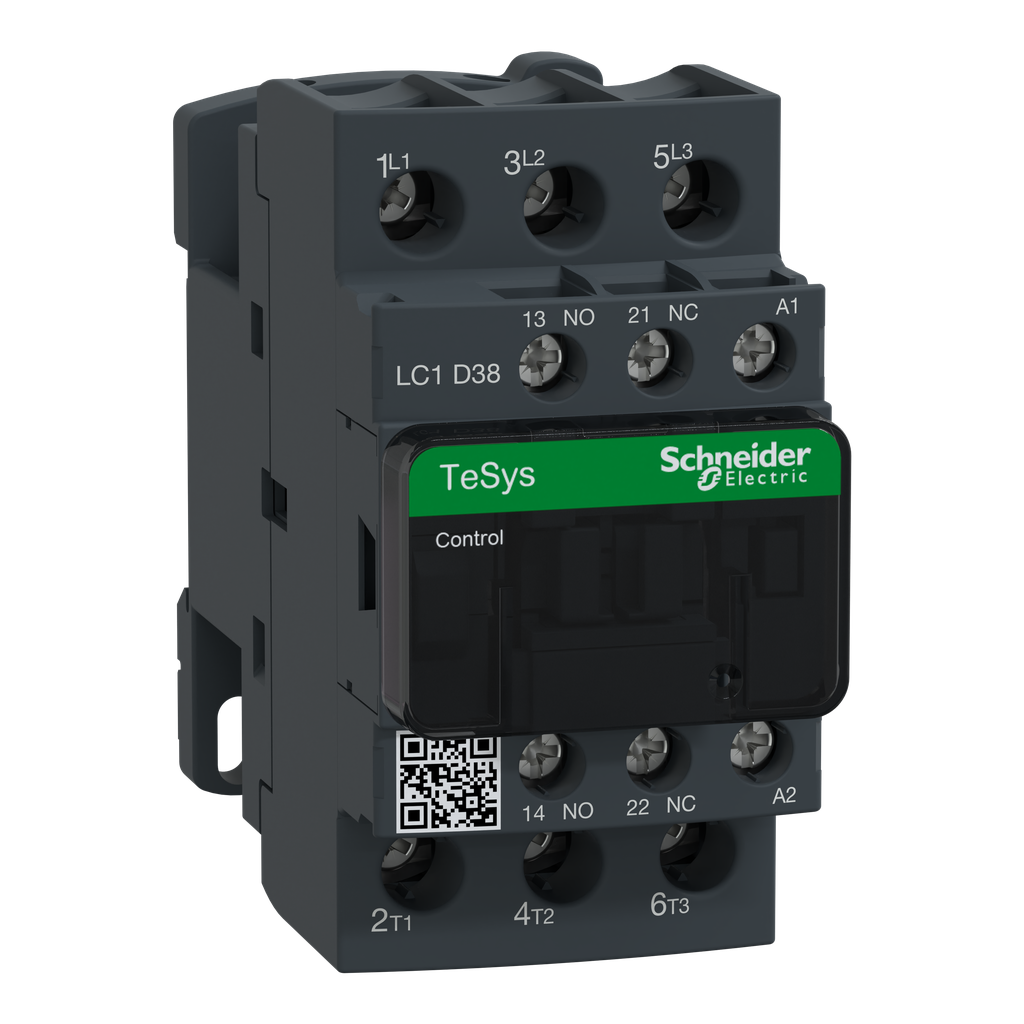

Schneider Electric LC1D38G7 SQUARED IEC Contactor TeS 38A

Product Description

Schneider Electric LC1D38G7 is an IEC contactor designed for integration into control systems. It can create motor starters suitable for various applications. This contactor has a rating of thirty-eight Amperes and can be mounted on DIN rail or directly to a panel. It supports international standards with both Horsepower and Kilowatt ratings.

• Rated for 10HP at 200 to 208VAC
• Includes one normally open and one normally closed auxiliary contact
• Operates with a 120VAC 50/60Hz coil

Product Highlights

The LC1D38G7 is versatile for motor control, capable of handling resistive loads effectively.

Product Information

Standard Information

• Catalog Number: LC1D38G7
• Brand: Schneider Electric

Technical Specifications

• Voltage: 120 V AC 50/60 HZ
• Weight: 0.84 lb
• Height: 3.35 inches
• Width: 1.77 inches
• Depth: 3.62 inches
• Operating Cycles: 3600 cyc/h at 60 C
• Contact Configuration: 1 NO + 1 NC, 3 NO
• Application: Motor control
