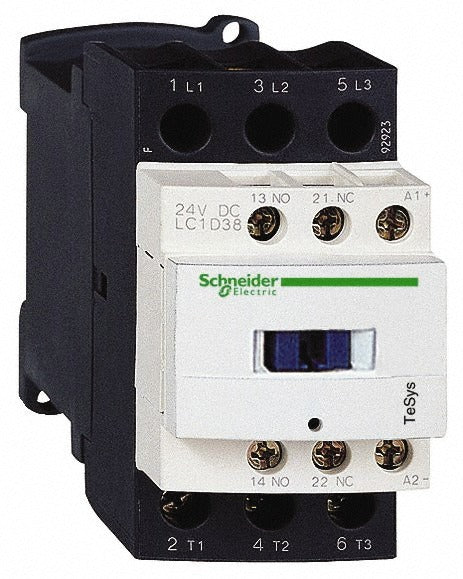

Schneider Electric LC1D38BD Iec Contactor 3 Pole 38A 24VDC

Product Description

The SCHNEIDER ELECTRIC LC1D38BD is a 3-pole IEC-rated contactor designed for motor control and load switching in industrial and commercial electrical systems. It operates on a 24 VDC coil voltage and carries a 38-amp rating at 440 VAC. The contactor is non-reversible and includes an auxiliary contact configuration of one normally closed (NC) and one normally open (NO) contact. Licensed electricians and industrial maintenance technicians install this device as part of motor starter assemblies, control panels, and power distribution circuits where reliable, repeatable switching is required.

The LC1D38BD is suited for use in industrial control panels, HVAC equipment, pump control systems, and conveyor or machinery applications requiring IEC-compliant contactors. Its compact footprint makes it a practical fit for space-constrained enclosures. The 24 VDC coil is compatible with low-voltage control circuits commonly used in automated and building management systems. No specific compatible model numbers or system families were identified in the available product data.

Key Features

• 3-pole configuration for three-phase load switching
• 38-amp rating at 440 VAC for motor and resistive load applications
• 24 VDC coil for integration with low-voltage DC control circuits
• Built-in NC and NO auxiliary contacts for interlock and status signaling
• Non-reversible action for standard single-direction motor control
• Certified to multiple international standards including UL 508, CSA C22.2 No. 14, EN/IEC 60947-4-1, and RoHS Compliant

Compatibility

Designed as an OEM-style IEC contactor for use in industrial control panels, motor starter assemblies, and automated equipment requiring a 3-pole, 38-amp, 24 VDC coil contactor meeting EN/IEC 60947-4-1 standards.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the NEC and applicable local electrical codes. De-energize and lock out all power sources before installing or replacing the contactor. Verify that the control circuit voltage matches the 24 VDC coil rating before energizing. Ensure all line and load terminals are torqued and secured per the panel or equipment manufacturer guidelines.
