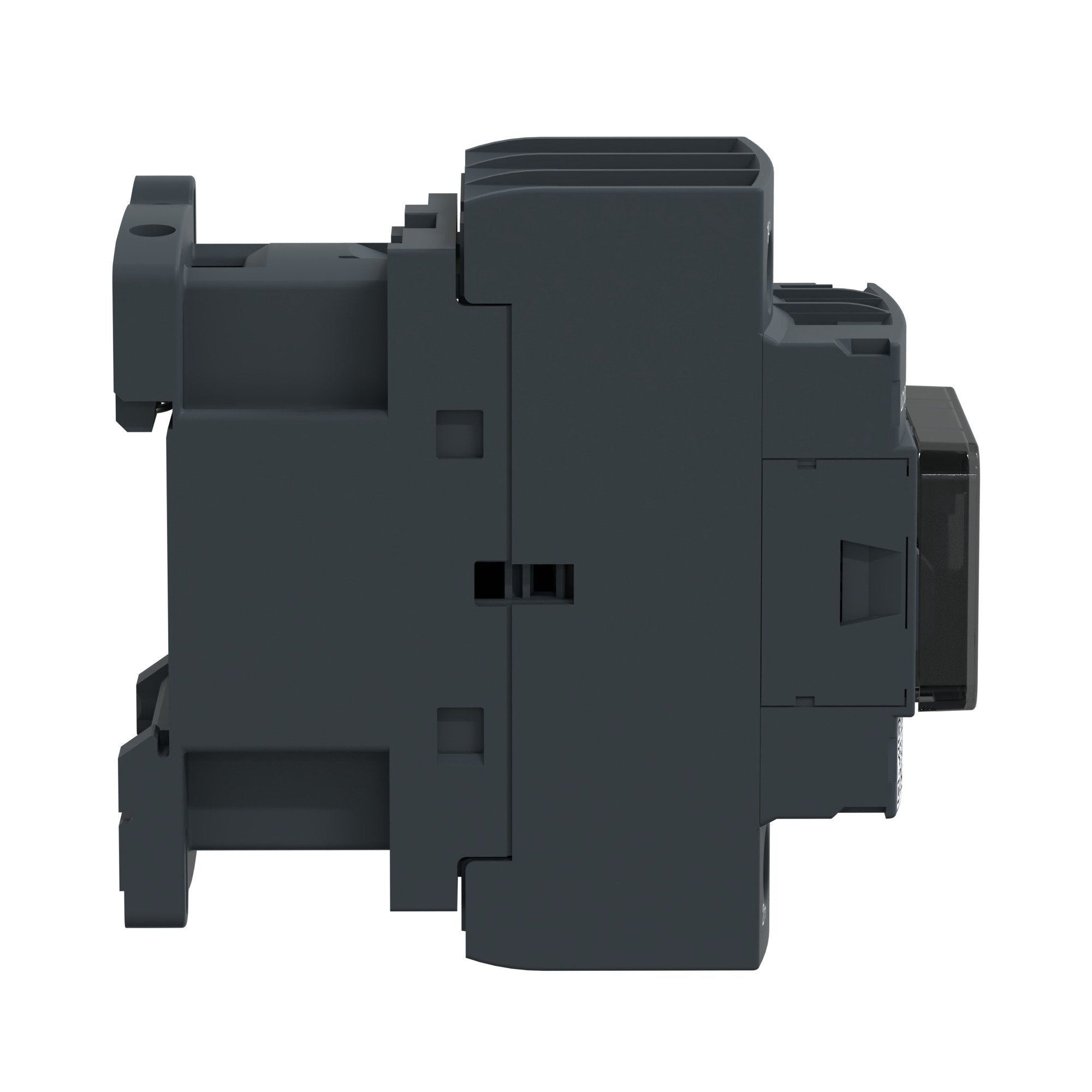

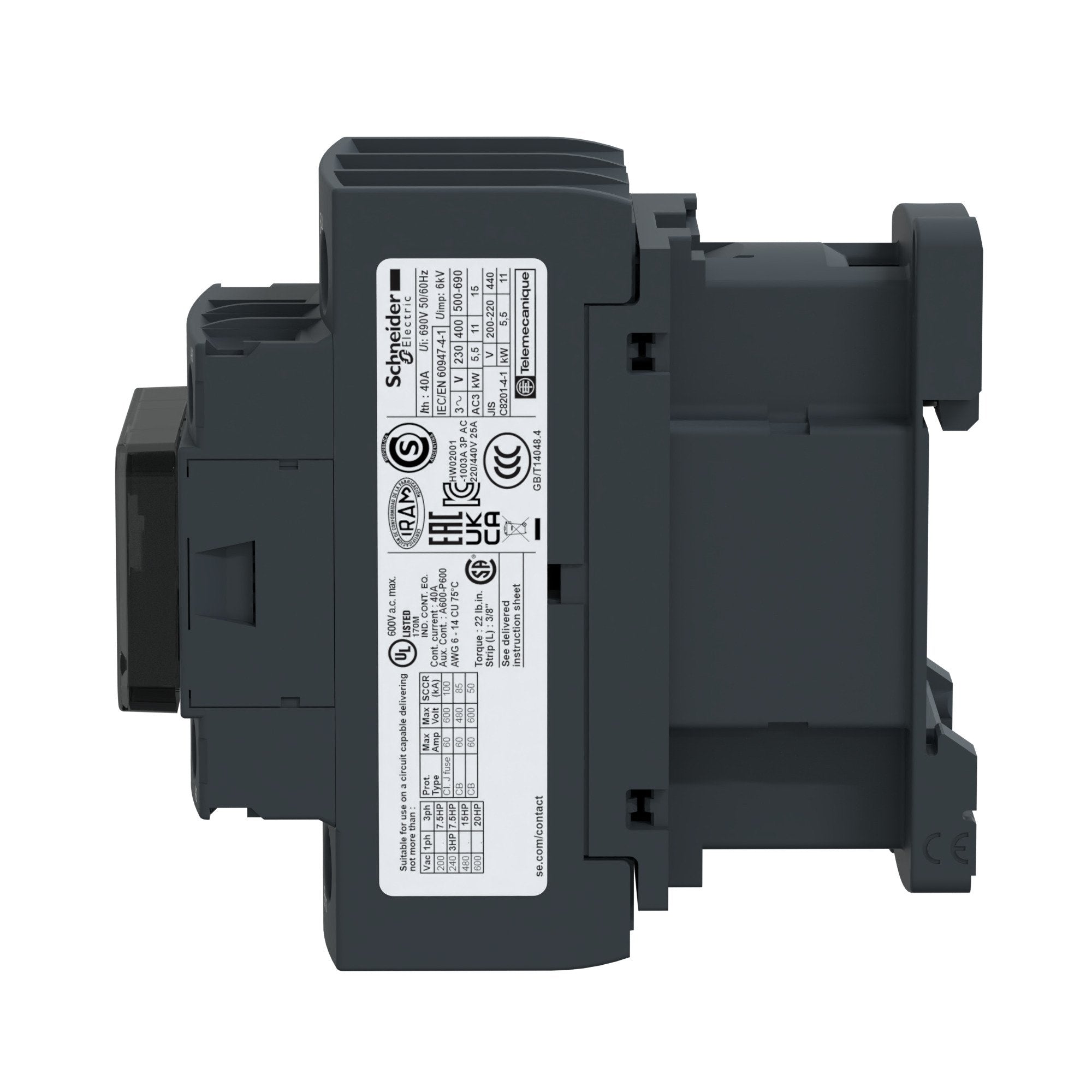

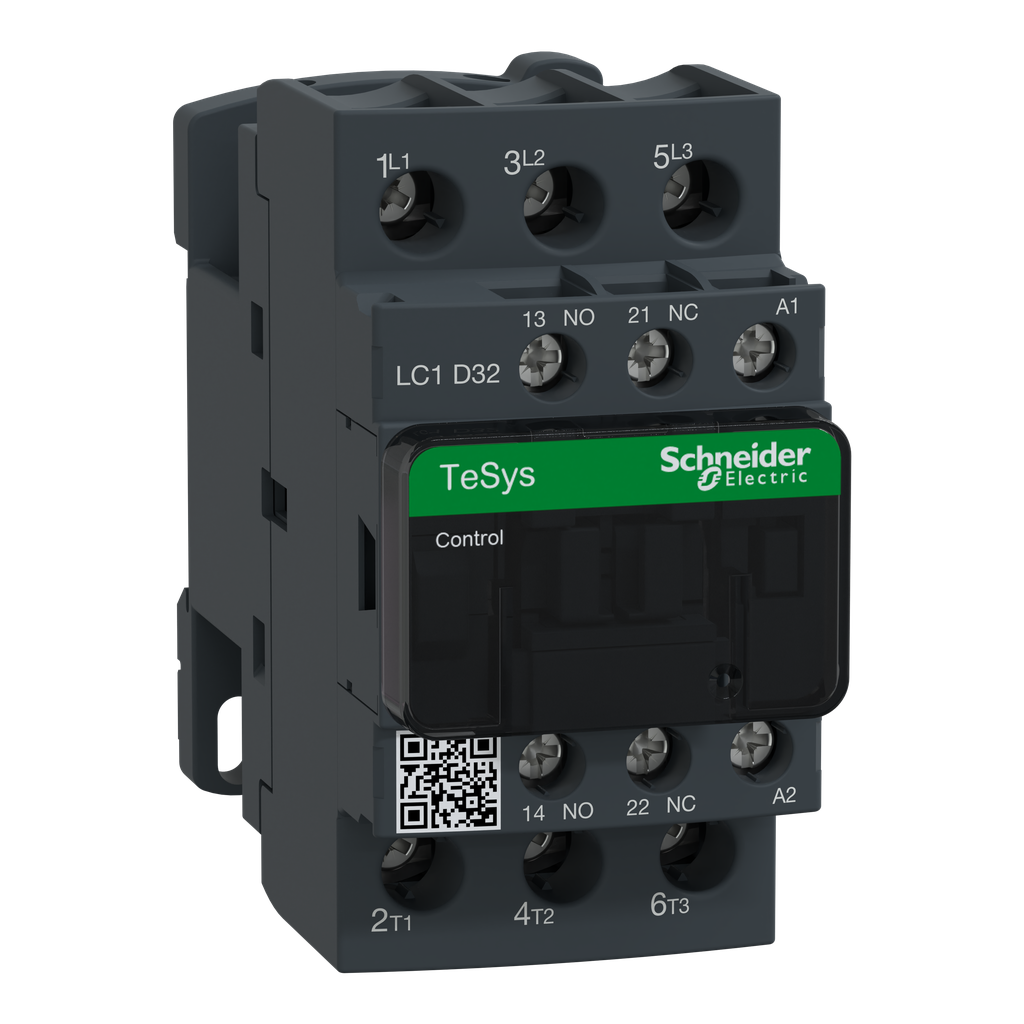

Schneider Electric LC1D32T7 600 VAC 32 Amp 3-Pole 1NO 1NC Screw Terminal Full Voltage Non-Reversing IEC Contactor

Product Description

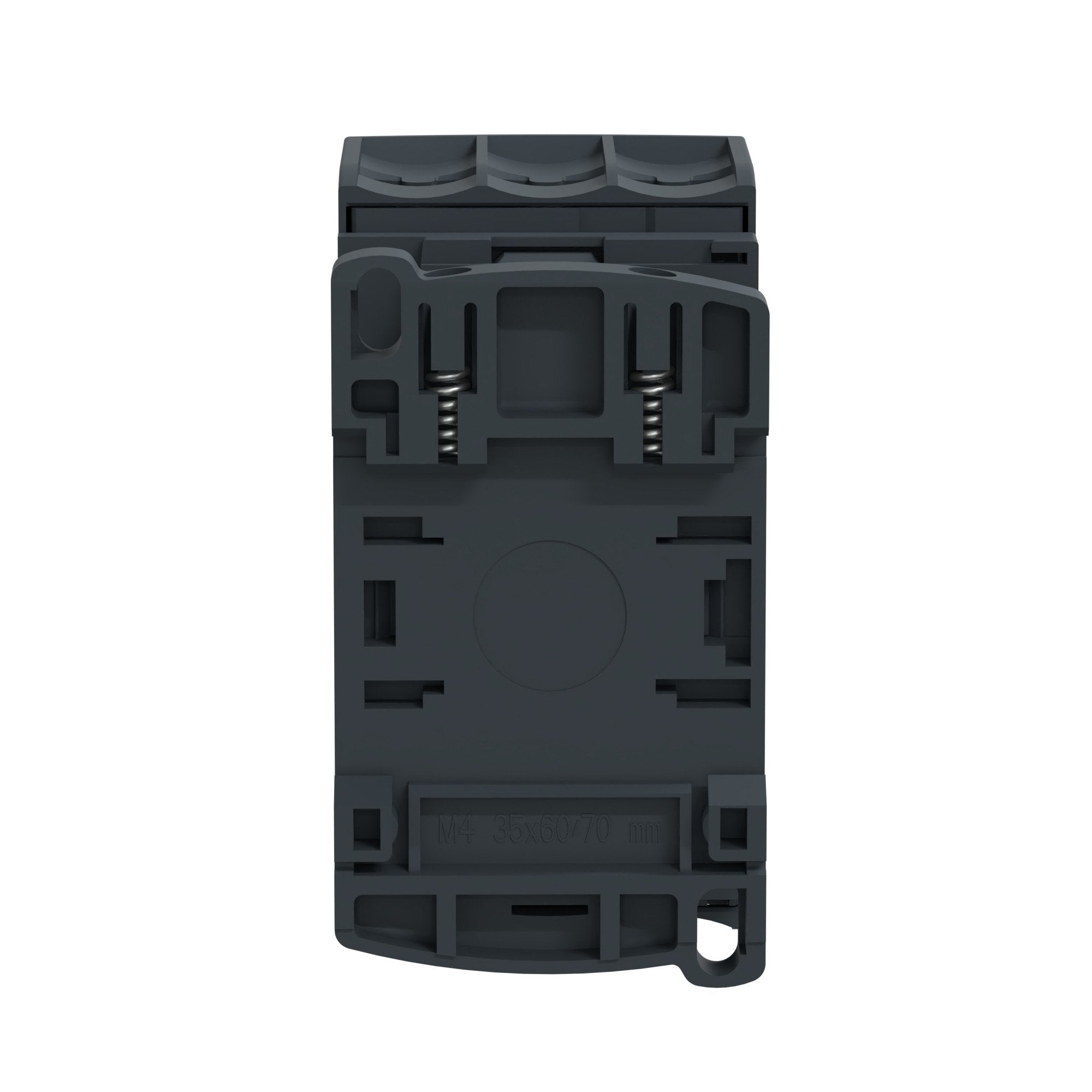

Schneider Electric offers the LC1D32T7, a 32 Amp 3-pole full voltage non-reversing IEC contactor. This contactor is designed for integration into control systems and is suitable for various motor starting applications. It features screw terminal connections and can be mounted on a DIN rail or directly to a panel. The LC1D32T7 operates with a coil voltage of four hundred eighty volts AC at fifty or sixty hertz.

• Inductive load rated up to 32A
• Compatible with various motor applications including three-phase
• Mounting options for versatility in installation

Product Highlights

This contactor supports motor ratings including seven point five horsepower at two hundred to two hundred eight volts AC, ten horsepower at two hundred forty volts AC, up to thirty horsepower at six hundred volts AC. It ensures high SCCR ratings when paired with appropriate circuit breakers or fuses, making it suitable for a wide range of industrial operations.

Product Information

Standard Information

• Brand: Schneider Electric
• Model Number: LC1D32T7

Technical Specifications

• Voltage Rating: 600 VAC
• Contact Configuration: 1 NO + 1 NC; 3 NO
• Dimensions: Height - 3.35 inches, Width - 1.77 inches, Depth - 3.62 inches
• Weight: 0.83 lbs
• Coil Voltage: 480 V AC
• Operating Temperature Range: -40 to 70 degrees Celsius
• Control Type: Screw clamp terminals
• Warranty: 18 months
