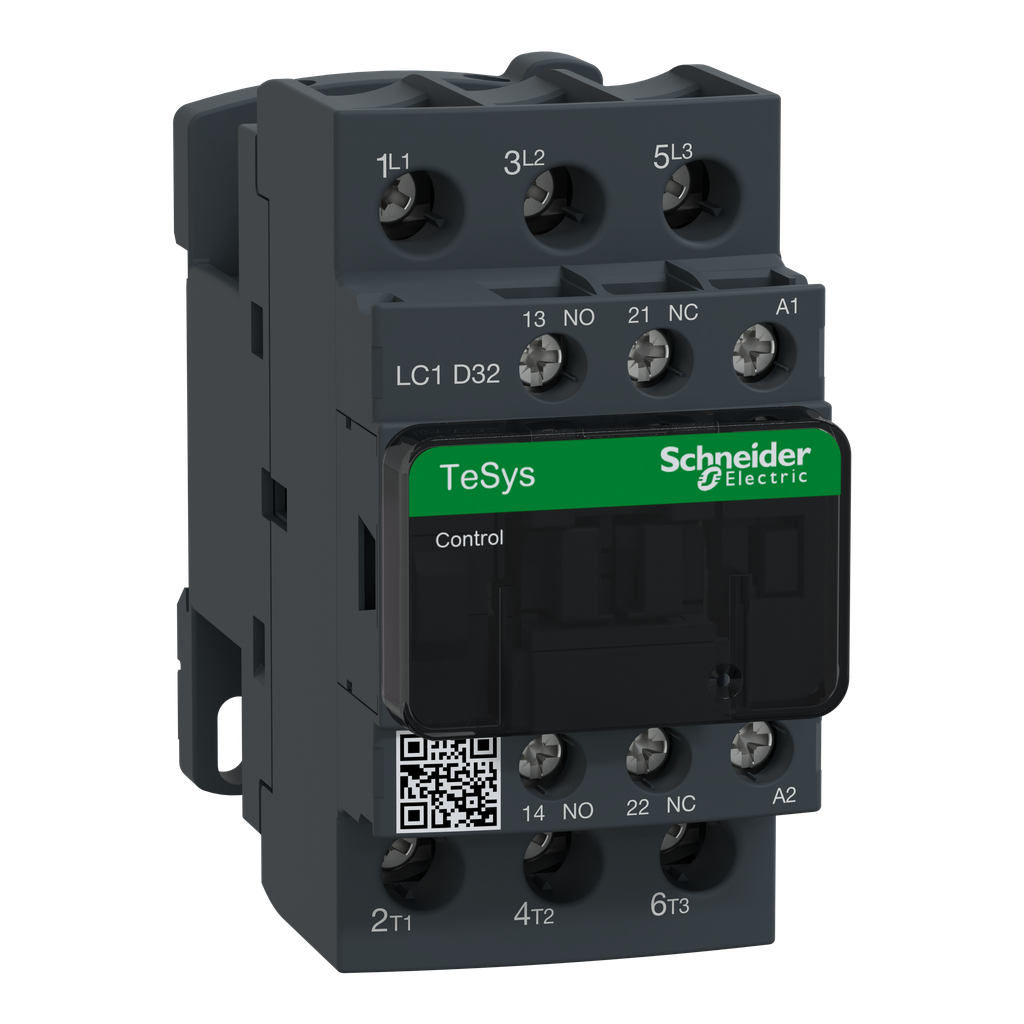

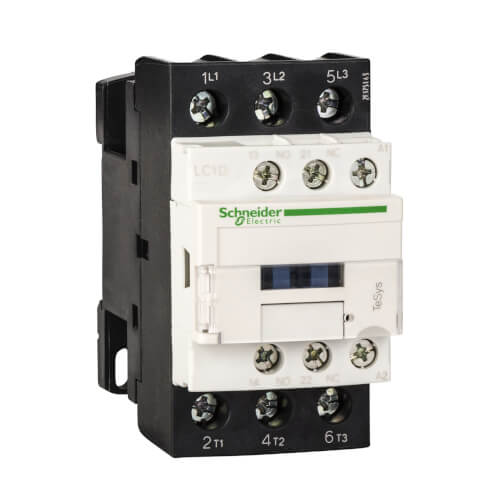

Schneider Electric LC1D32LE7 Contactor 600-Vac 32Amp Iec Non-Reversing

Product Description

The Schneider Electric LC1D32LE7 contactor, rated for 600-Vac and 32 amps, is designed to manage motor control in various industrial systems. This three-pole, non-reversing IEC contactor is suitable for DIN rail and direct panel mounting. It features an IP20 rating with screw clamp terminals for secure connections.

• 32 amp rating for inductive loads
• 208 VAC 50/60 Hz coil
• One normally open and one normally closed auxiliary contact

Product Highlights

This contactor features a compact size for easy installation in confined spaces and is certified to meet UL, CSA, and IEC standards. It is especially useful in motor control applications, such as conveyors, pumps, and fans, providing reliable performance in demanding environments.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Schneider Electric
• MPN: LC1D32LE7

Technical Specifications

• Coil Voltage: 208 V AC 50/60 Hz
• Contact Configuration: 1 NO + 1 NC
• Inductive Load: 32A
• Resistive Load: 50A
• Mounting: DIN rail or direct panel
• Height: 3.35 inches
• Width: 1.77 inches
• Depth: 3.62 inches
• Weight: 0.93 lbs
