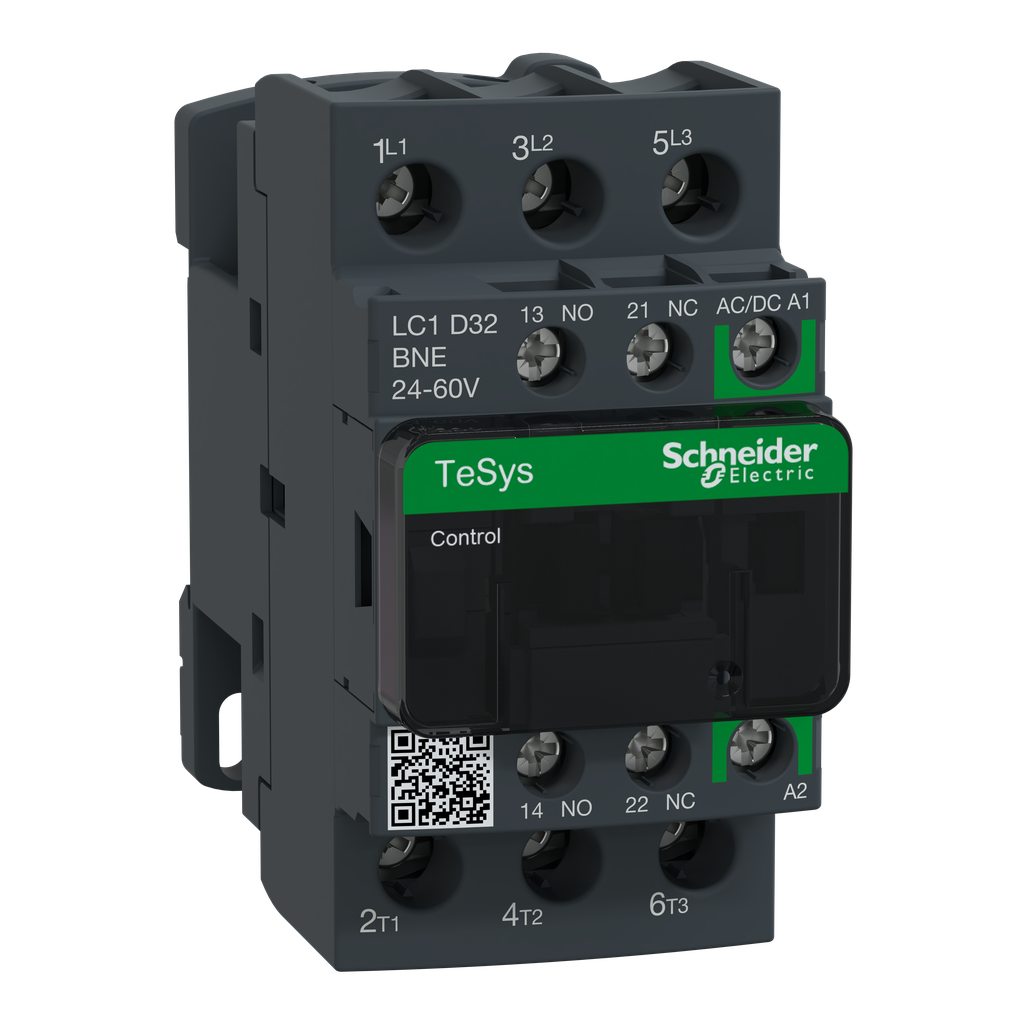

Schneider Electric LC1D32BNE SQD IEC Contactor, TeSys, 32A, 20HP at 480VAC

Product Description

Schneider Electric LC1D32BNE is a TeSys IEC contactor designed for integration in control systems. Ideal for motor starters in various applications, this contactor supports inductive loads up to 150 full-load amps and resistive loads up to 200 amps. It features a three-pole configuration and can be mounted on DIN rail or panels. The product has horsepower ratings, with 7.5HP at 200-208VAC, 10HP at 240VAC, and 20HP at 480VAC three-phase. Single-phase ratings include 2HP at 115VAC and 5HP at 240VAC.

• Rated for high SCCR up to 100kA with appropriate fuses.
• Equipped with a low-consumption electronic coil for 24-60V AC/DC.
• Includes one normally open and one normally closed auxiliary contact.

Product Highlights

Designed for high-performance motor control applications, the LC1D32BNE is compliant with various international standards.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D

Technical Specifications

• Catalog Number: LC1D32BNE
• Weight: 0.97 lbs
• Height: 3.35 inches
• Width: 1.77 inches
• Depth: 3.62 inches
• Voltage Rating: 690 Volt
• Coil Voltage: 24...60 V AC 50/60 Hz; 24...60 V DC
• Operating Cycles: 3600 cyc/h at 140 F (60 C)
