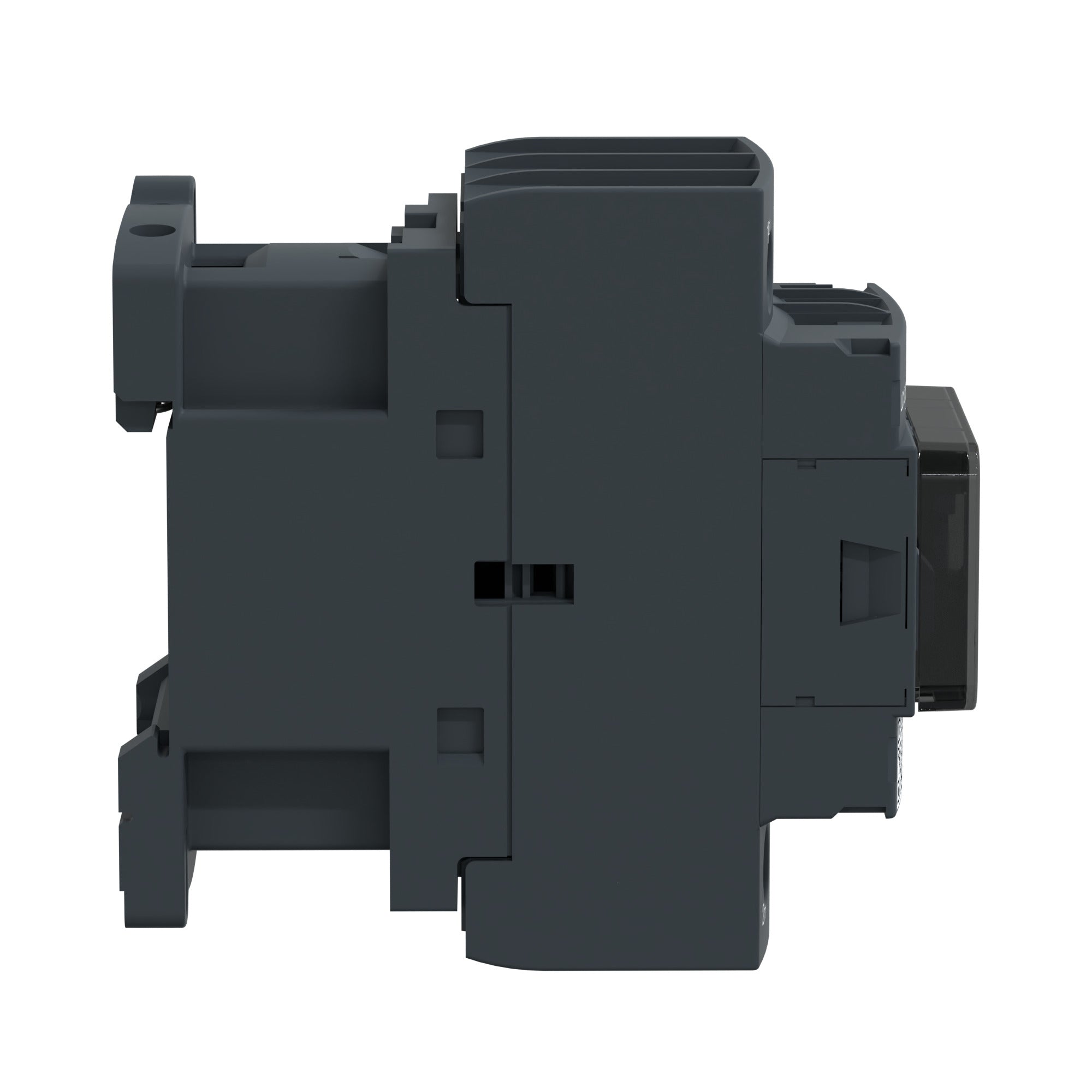

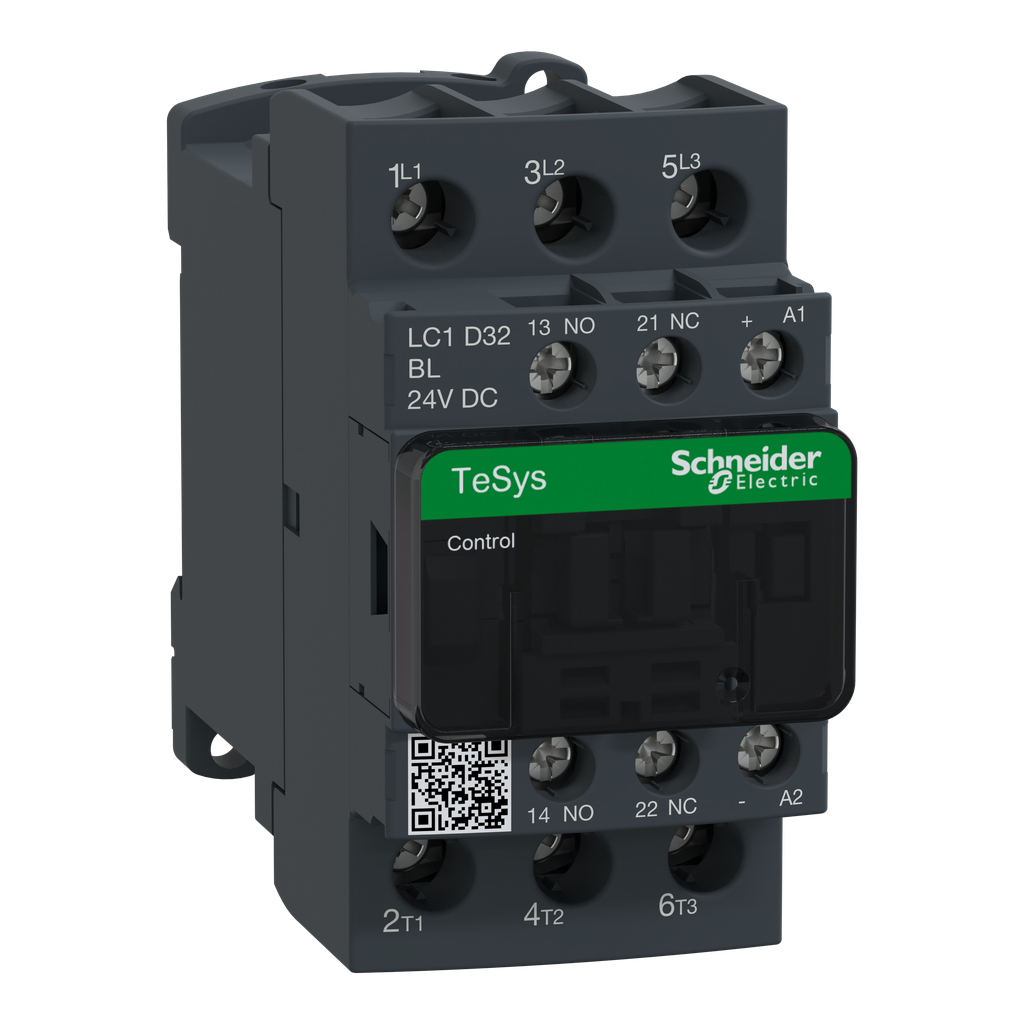

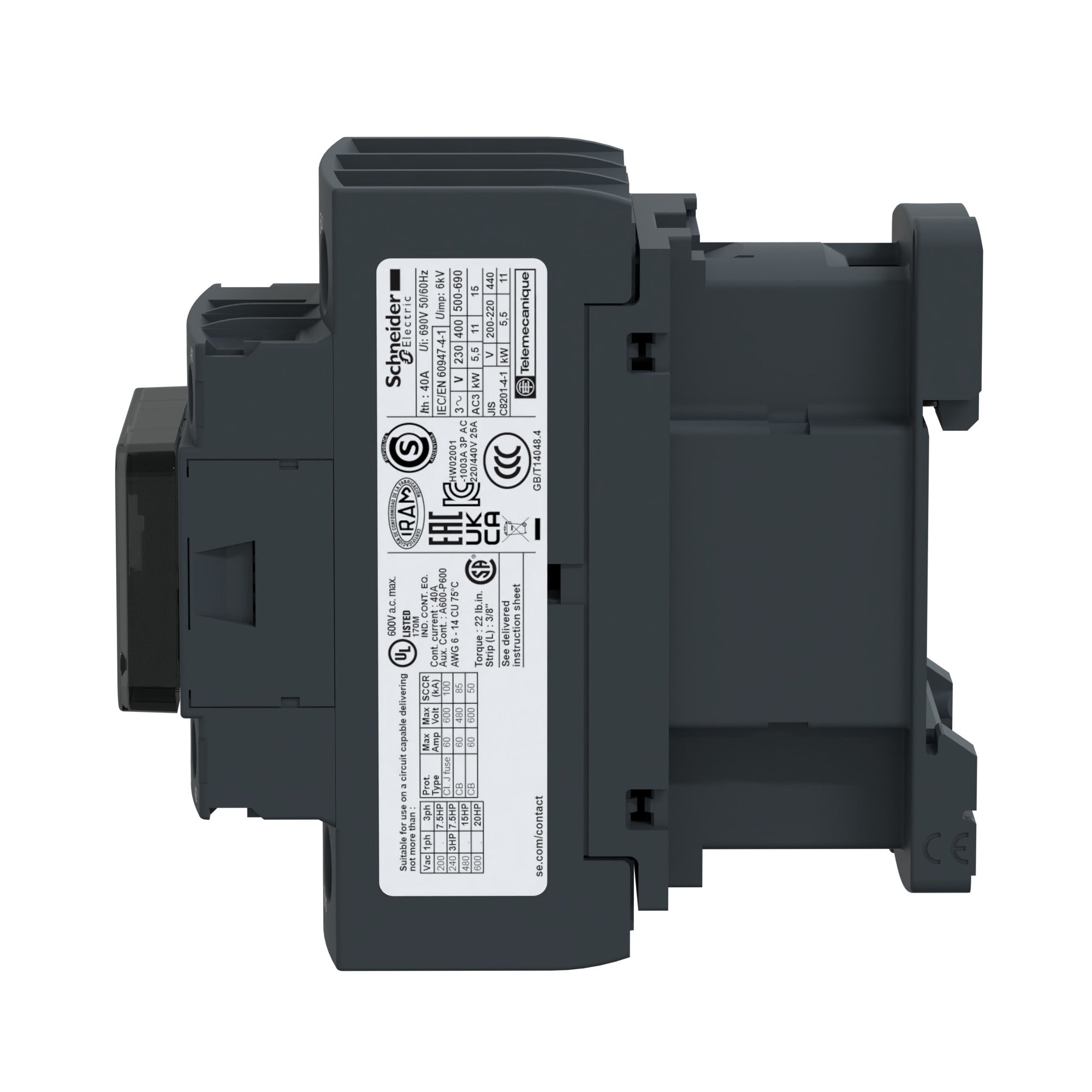

Schneider Electric LC1D32BL Square D 575 VAC 32 Amp 3-Pole 1NO 1NC Screw Terminal Full Voltage Non-Reversing IEC Contactor

Product Description

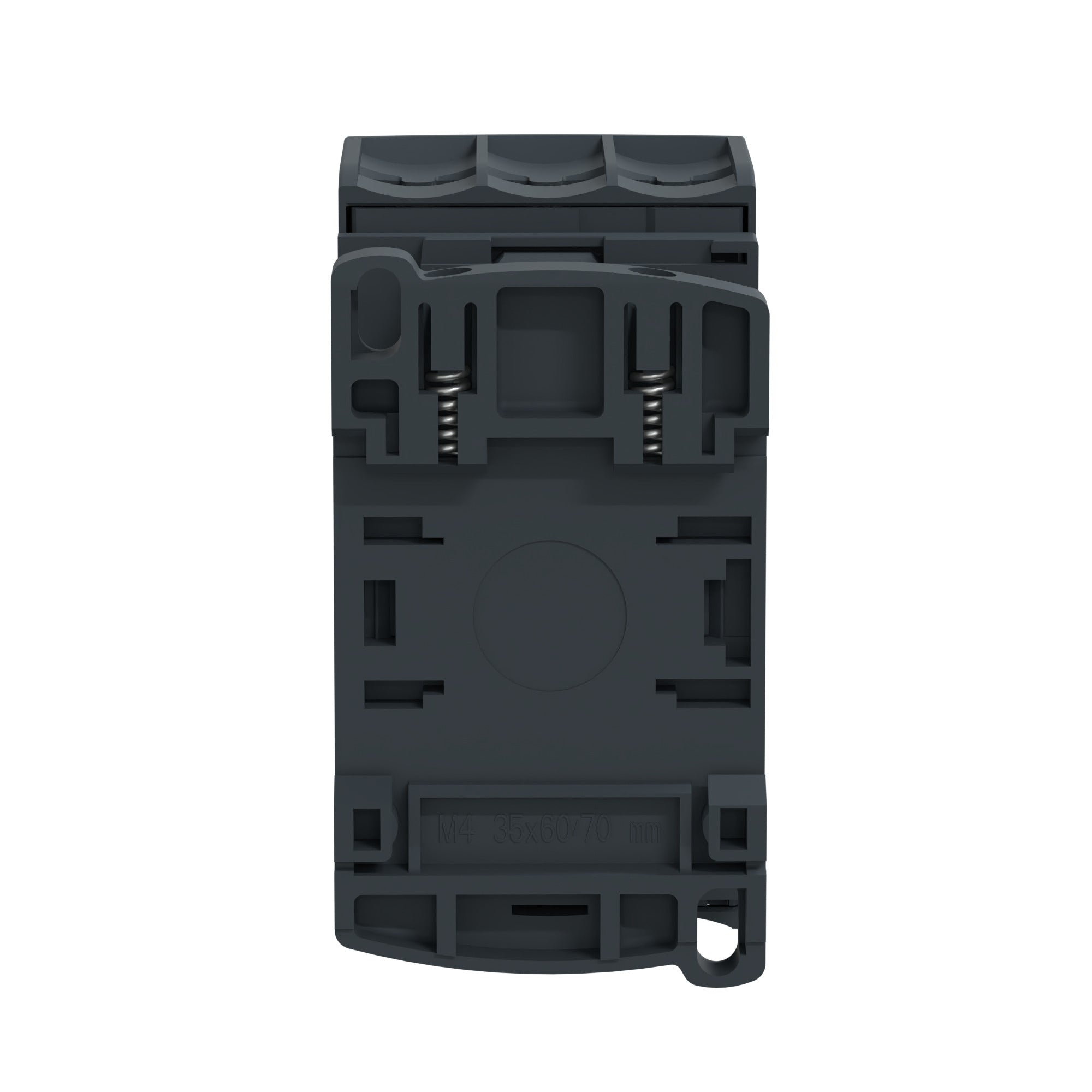

The Schneider Electric LC1D32BL is a full voltage non-reversing IEC contactor rated for thirty-two amps and designed for control systems. It will serve various applications including motor starters. This model integrates seamlessly with DIN rail or direct panel mounting options.

• Rated for seven and a half horsepower at two hundred to two hundred eight volts AC
• Includes a twenty-four VDC coil with a transient suppressor
• Built-in auxiliary contact configuration with one normally open and one normally closed

Product Highlights

The LC1D32BL contactor is capable of managing multiple inductive motor applications with a variety of loads while complying with international standards. It provides essential performance in motor control and resistive loads.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Schneider Electric

Technical Specifications

• Catalog Number: LC1D32BL
• Voltage Rating: 575 VAC
• Current Rating: 32 Amps
• Footprint Dimensions: 3.35 inches tall, 1.77 inches wide, 3.98 inches deep
• Weight: 1.18 lbs
• Country of Origin: Indonesia
• Operating Temperature: -40 to 70 degrees Celsius
• Coil Voltage: 24 V DC
• Mounting Type: Rail Plate
