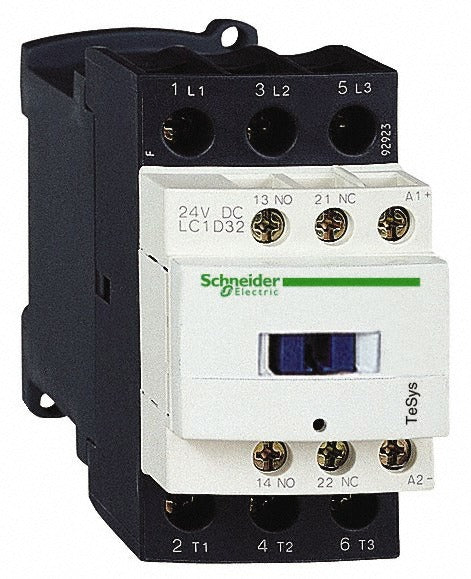

Schneider Electric LC1D326BL Iec Contactor 3 Pole 24VDC

Product Description

The SCHNEIDER ELECTRIC LC1D326BL is a 3-pole IEC-rated contactor designed for non-reversible motor control and switching applications in industrial and commercial electrical systems. It operates on a 24V DC coil and includes both a normally closed (NC) and normally open (NO) auxiliary contact configuration. Licensed electricians and industrial maintenance technicians install this contactor in motor control centers, panel boards, and control cabinets where reliable, code-compliant switching is required. At 1.34 pounds, the LC1D326BL is compact enough for tight enclosure layouts while meeting a broad range of international certifications.

This contactor is suited for use in commercial and industrial control panel builds, HVAC equipment, pump and fan motor circuits, and process control systems. Its non-reversible design makes it appropriate for single-direction motor loads. The 24V DC coil voltage allows integration with low-voltage PLC outputs and standard DC control circuits without an additional transformer. Install environments range from light industrial to marine-rated applications given its multi-agency certification listing.

Key Features

• 3-pole configuration for three-phase or multi-leg load switching
• 24V DC coil voltage compatible with PLC and low-voltage DC control circuits
• Integrated NC and NO auxiliary contacts for control and feedback wiring
• Non-reversible action for single-direction motor and load applications
• Certified to UL 508, CSA C22.2 No. 14, EN/IEC 60947-4-1, EN/IEC 60947-5-1, and RoHS Compliant
• Multi-agency listings include Bureau Veritas, DNV, GL, GOST, LROS, RINA, and CCC

Compatibility

Designed as an OEM-style IEC contactor replacement for 3-pole non-reversible motor control applications requiring a 24V DC coil and NC/NO auxiliary contact configuration.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements and any applicable local codes. De-energize and lock out the control panel before mounting or wiring the contactor. Verify coil voltage supply matches 24V DC before energizing. Do not exceed the contactor rated load or use in reversing-duty applications without a reversing-rated device.
