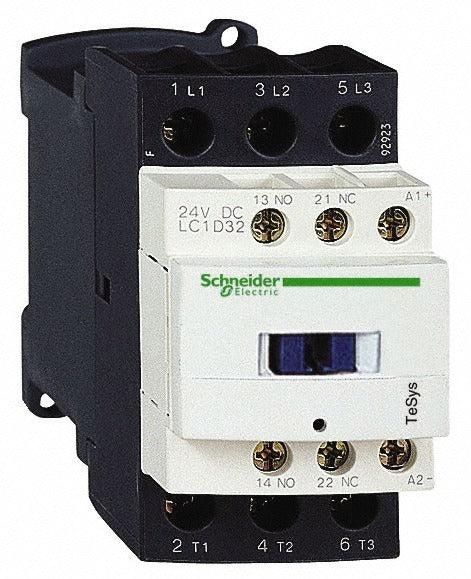

Schneider Electric LC1D326BD Iec Contactor 3 Pole 24VDC

Product Description

The SCHNEIDER ELECTRIC LC1D326BD is a 3-pole, non-reversible IEC contactor designed for motor control and power switching applications in industrial and commercial electrical systems. It operates on a 24 VDC coil voltage and includes a built-in auxiliary contact configuration of one normally closed (NC) and one normally open (NO). The contactor conforms to EN/IEC 60947-4-1 and is UL Listed under UL 508, making it suitable for use in control panel builds that must meet North American and international standards. Licensed electricians and panel builders are the primary installers of this device.

The LC1D326BD is used in motor starter circuits, control panels, and switching applications across light industrial, commercial, and process automation environments. Its non-reversible design suits single-direction motor loads and general load switching. The included NC/NO auxiliary contact supports interlocking, status signaling, and control circuit feedback without requiring an add-on contact block. This contactor is built to IEC form factor standards, making it a direct-fit replacement or new installation component in DIN rail-mounted enclosures.

Key Features

• 3-pole configuration for three-phase motor and load control
• 24 VDC coil voltage for low-voltage DC control circuit compatibility
• Non-reversible action for single-direction switching applications
• Integrated NC and NO auxiliary contact for interlocking and status feedback
• UL Listed (UL 508) and meets EN/IEC 60947-4-1 and EN/IEC 60947-5-1 standards
• Certified under CSA, CCC, DNV, GL, GOST, LROS, RINA, and RoHS Compliant

Compatibility

Designed as an OEM-style IEC contactor replacement or new-install component for 3-pole, non-reversible motor control circuits requiring a 24 VDC control coil.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements and any applicable local codes. De-energize and lock out the control panel before mounting or wiring the contactor. The device is intended for DIN rail mounting inside a suitable enclosure rated for the application environment. Verify coil voltage supply matches 24 VDC before energizing the control circuit.
