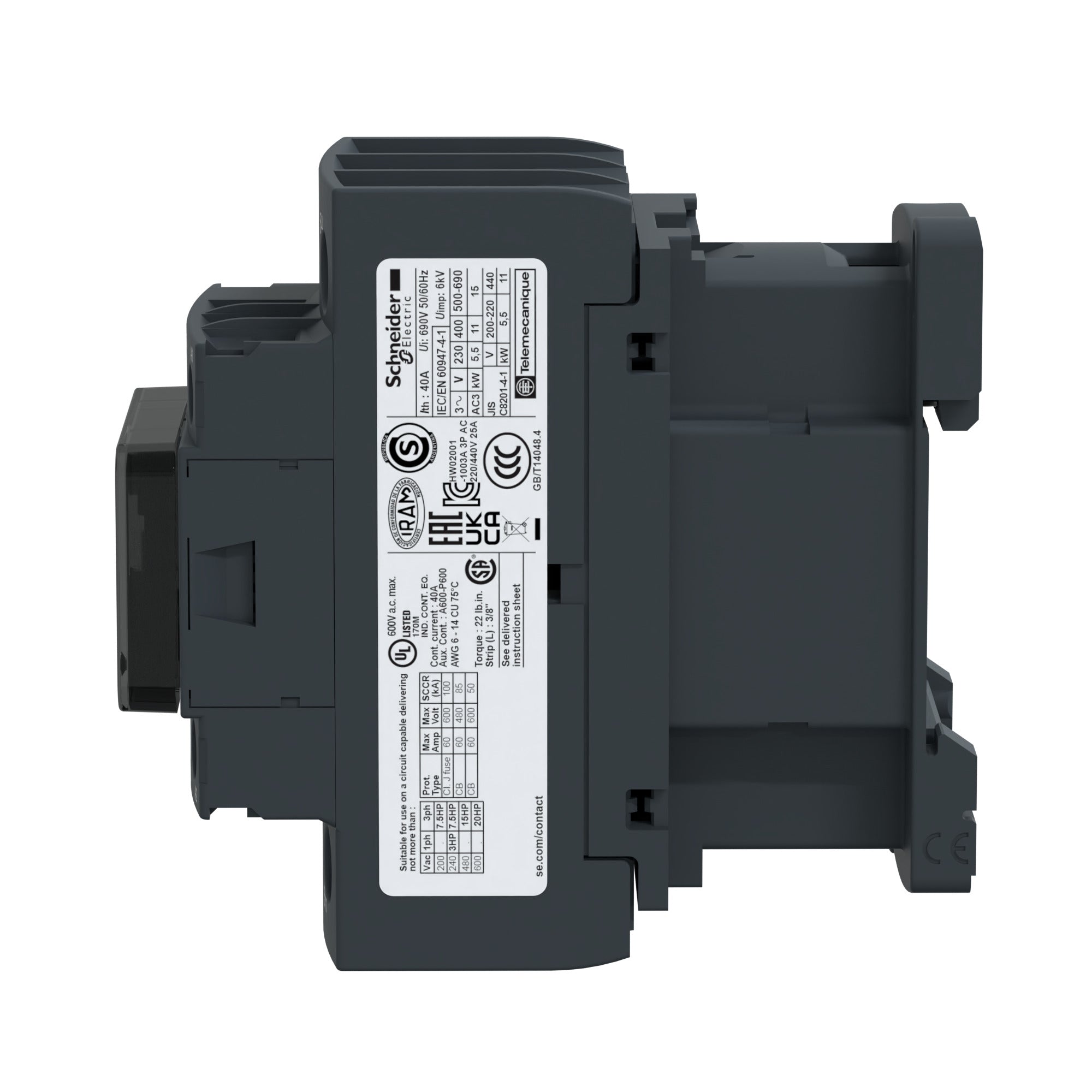

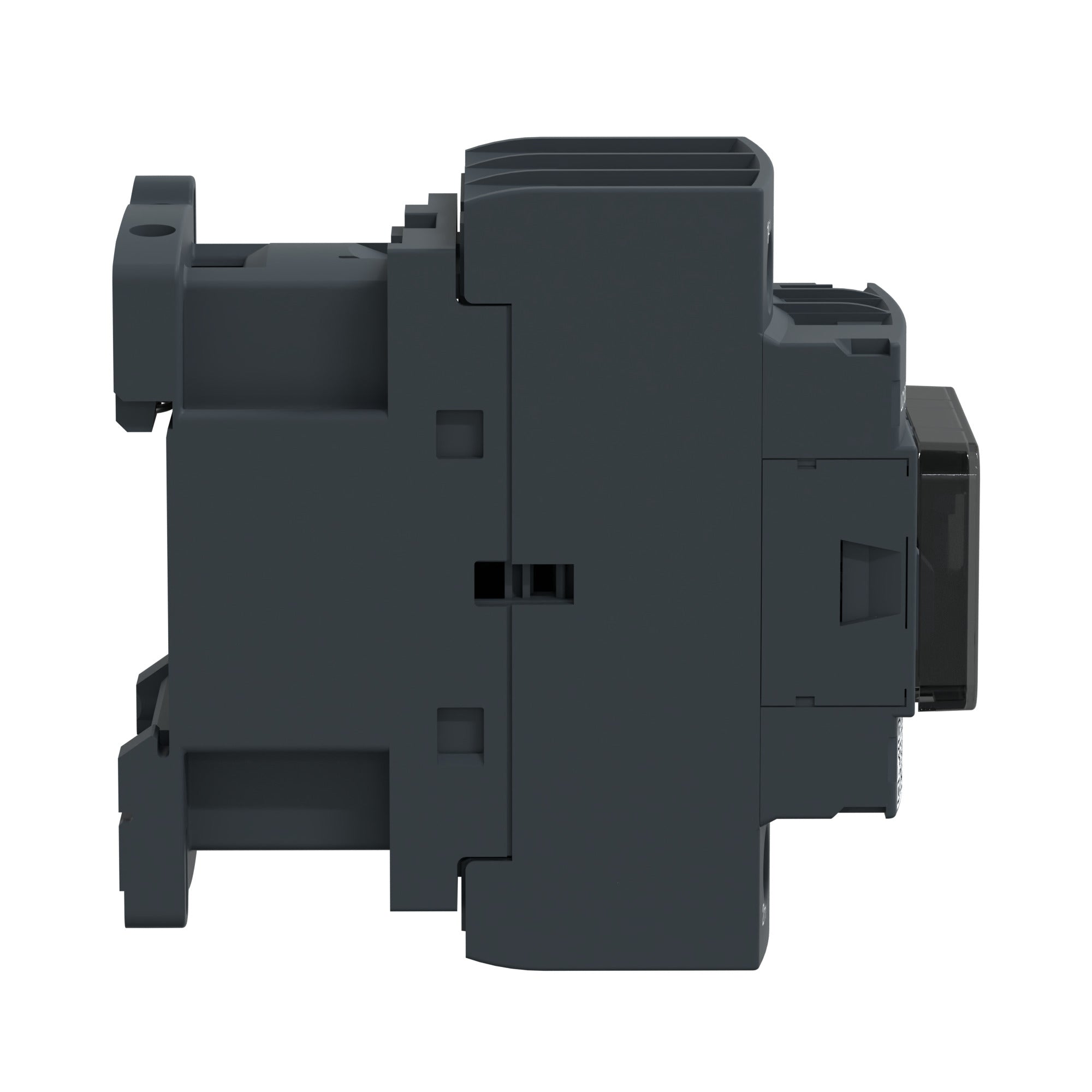

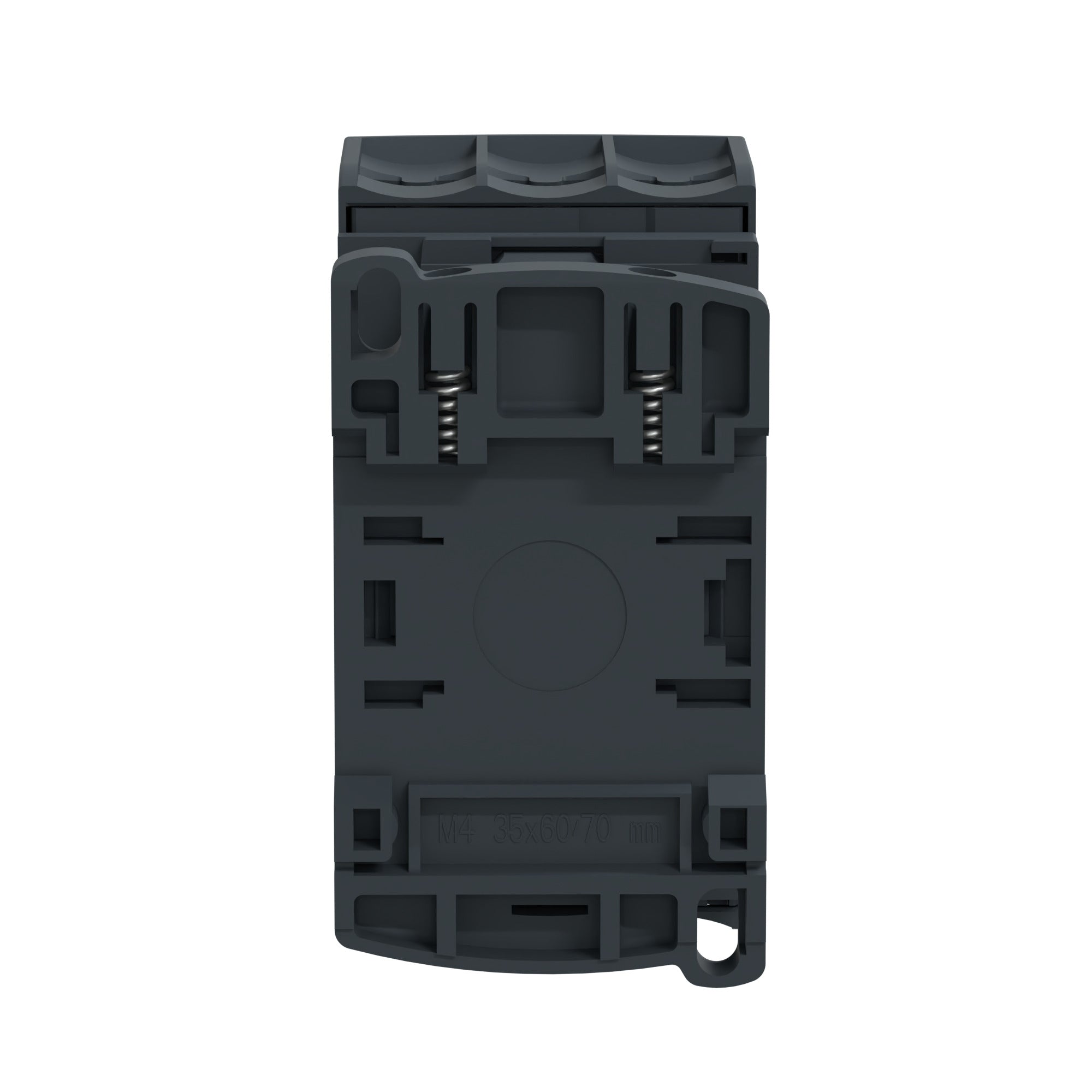

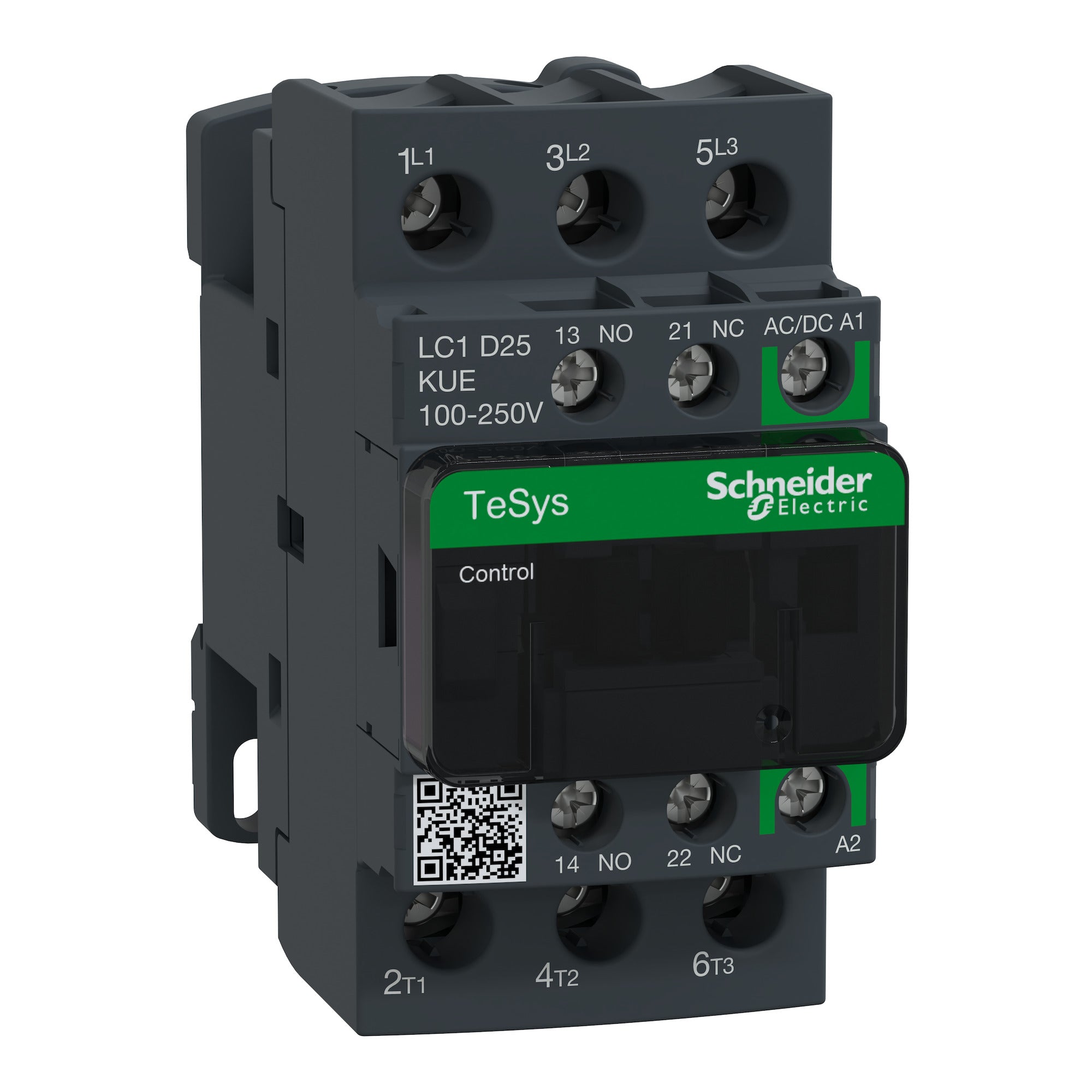

Schneider Electric LC1D25KUE IEC Contactor TeSys Deca Green Nonreversing 25A 15HP at 480VAC up to 100kA SCCR 3 Phase 3 NO 100/250VAC/VDC Coil

Product Description

The Schneider Electric LC1D25KUE is an IEC contactor designed for various motor control applications. This non-reversing contactor is rated for twenty-five amperes and supports fifteen horsepower at four hundred eighty volts AC. It is suitable for use in three-phase systems with a ten thousand amp short-circuit current rating.

• Rated for thirty-five horsepower at six hundred volts AC
• Compatibility with a wide range of control circuits with coil voltage of one hundred to two hundred fifty volts AC or DC
• One normally open and one normally closed auxiliary contact included

Product Highlights

This contactor allows for easy integration into control panels and motor starter configurations. Its design supports a variety of applications, ensuring reliability in demanding environments.

Product Information

Standard Information

• Brand: Schneider Electric
• Part Number: LC1D25KUE

Technical Specifications

• Catalog Number: LC1D25KUE
• Manufacturer: Schneider Electric
• Coil Voltage: 100...250 V AC 50/60 Hz; 100...250 V DC
• Contact Configuration: 1 NO + 1 NC; 3 NO
• Mounting: Rail Plate
• Operating Cycles: 25...400 Hz
• Special Features: Built-in bidirectional peak limiting
• Country of Origin: France
• Warranty Description: Contractual Warranty: 18 months
• Item Type: Contactor
