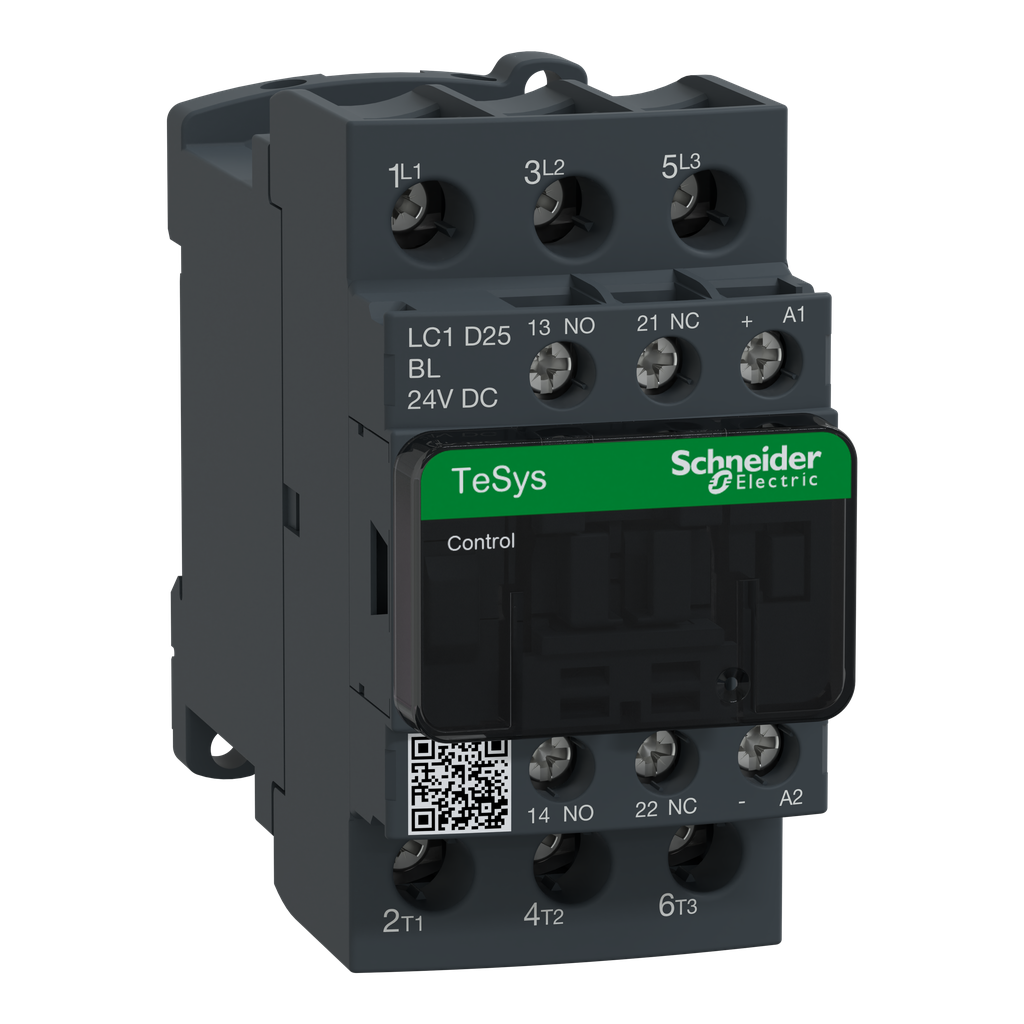

Schneider Electric LC1D25BL Square D 600 VAC 25 Amp 3-Pole 1NO 1NC Screw Terminal Full Voltage Non-Reversing IEC Contactor

Product Description

Schneider Electric presents the LC1D25BL, a 25-amp IEC contactor suitable for full voltage applications. This contactor integrates well into control systems and supports the creation of motor starters for a variety of applications. It is ideal for inductive motor control and resistive loads. The LC1D25BL can handle motor ratings of up to 7.5 horsepower at 240 volts and 15 horsepower at 480 volts. This versatile contactor features a low consumption 24 VDC coil for efficient operation, auxiliary contacts, and a robust design suitable for DIN rail mounting.

• Rated for multiple horsepower at different voltages.
• Includes both normally open and normally closed auxiliary contacts.
• Complies with various safety and environmental standards.

Product Highlights

This IEC contactor is designed for reliability and performance in motor control circuits.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D

Technical Specifications

• Catalog Number: LC1D25BL
• Voltage Rating: 600 VAC
• Current Rating: 25 A
• Number of Poles: 3
• Auxiliary Contacts: 1 NO + 1 NC
• Dimensions: 3.35 inches height, 1.77 inches width, 3.62 inches depth
• Weight: 0.82 lbs
• Coil Voltage: 24 VDC
