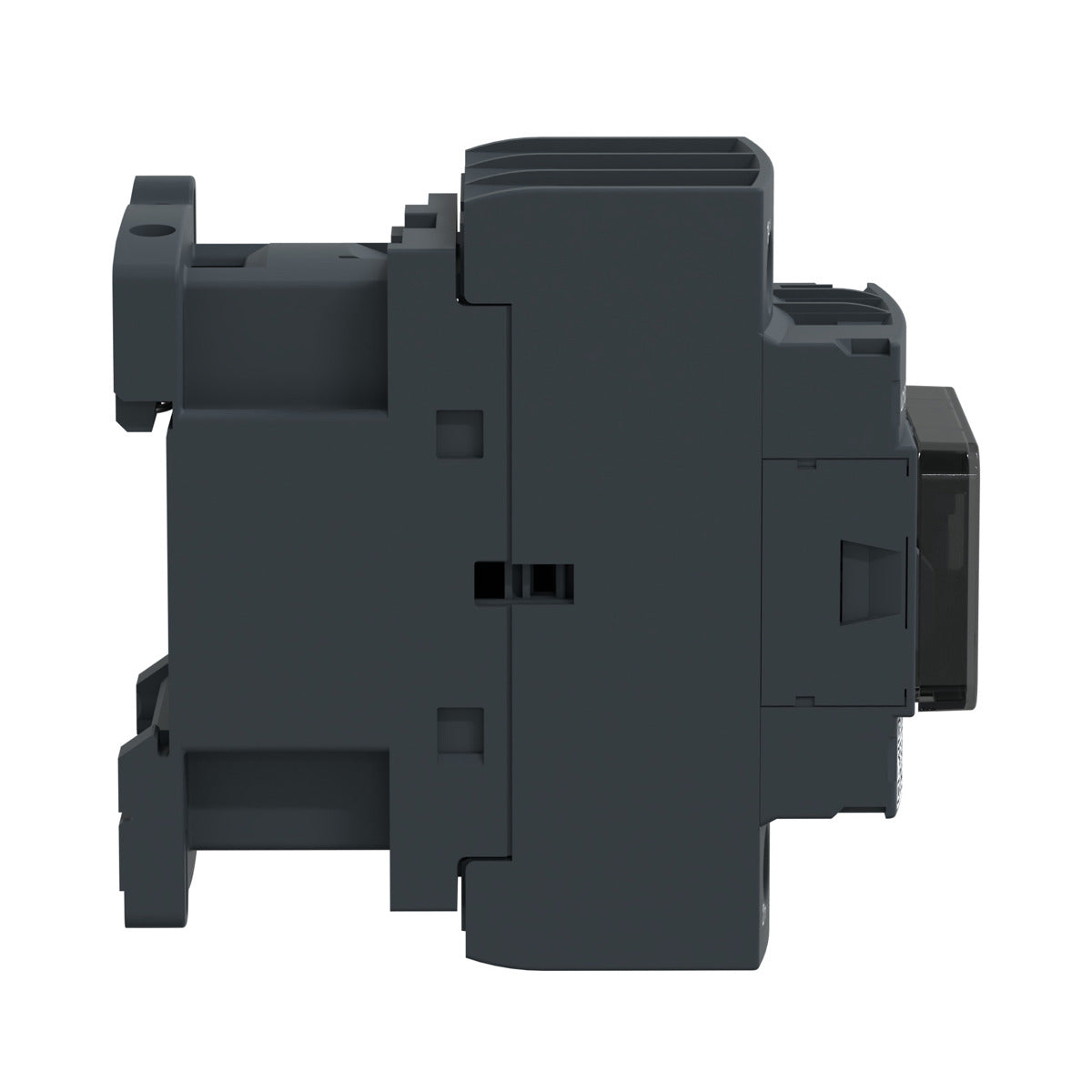

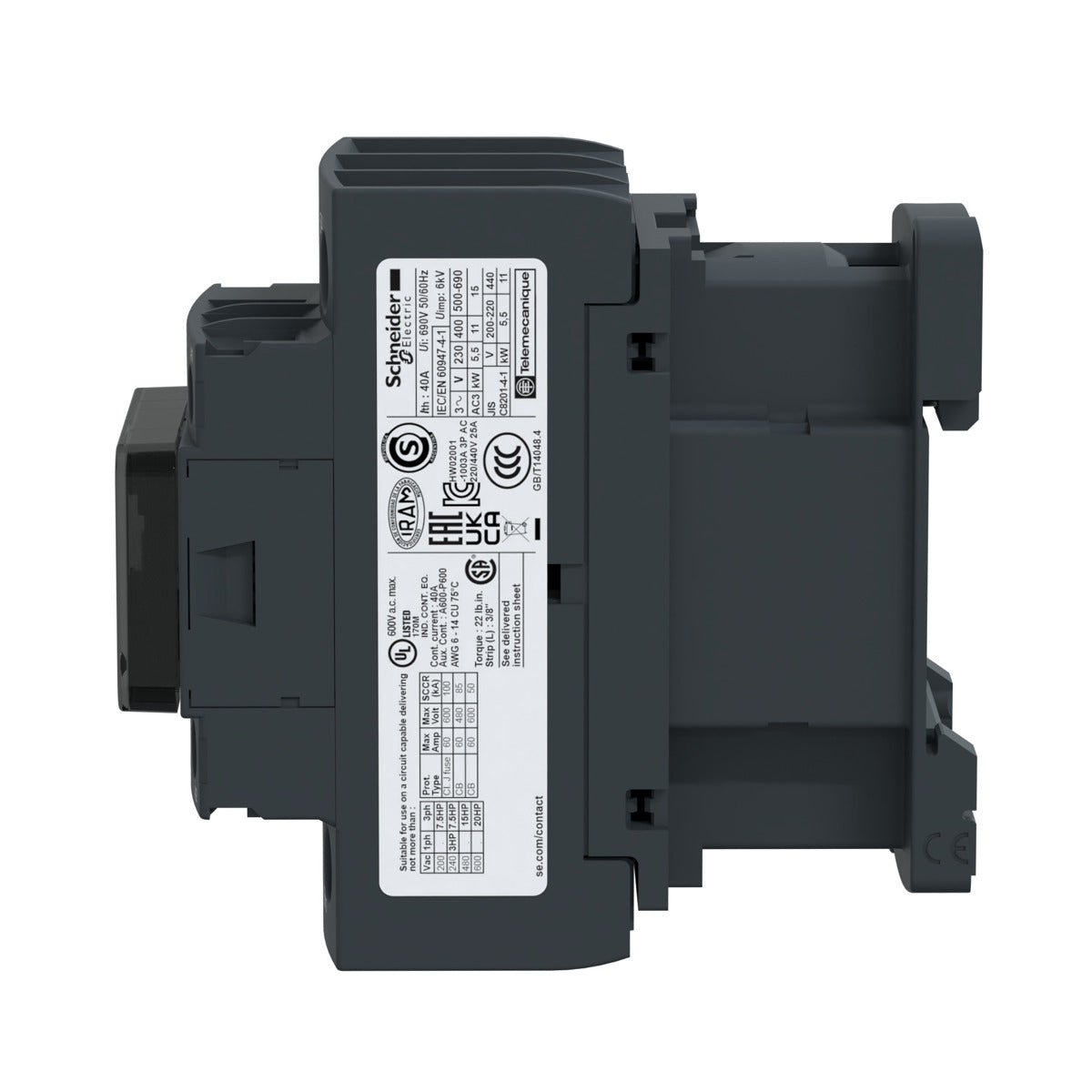

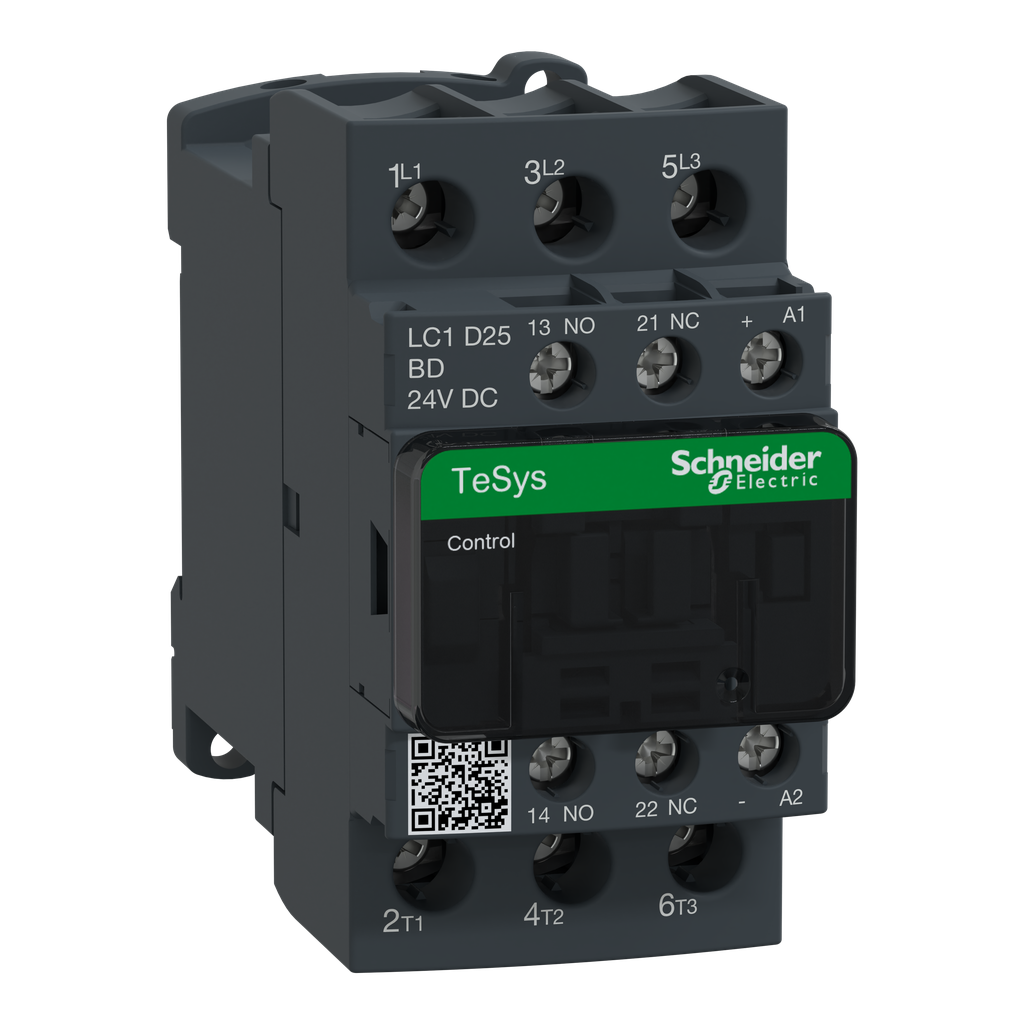

Schneider Electric LC1D25BD 600 VAC 25 Amp 3-Pole 1NO 1NC Screw Terminal Full Voltage Non-Reversing IEC Contactor

Product Description

Schneider Electric LC1D25BD is a 600 VAC rated, 25 Amp contactor designed for motor control applications. This 3-pole, full voltage, non-reversing contactor is ideal for various electrical systems. The unit can handle inductive motor ratings and resistive loads efficiently. It is suitable for integration in standard control systems and can be mounted on DIN rails or directly to panels.

• Rated for 7.5 HP at 200-208 VAC and 20 HP at 600 VAC.
• Includes one normally open and one normally closed auxiliary contact.
• Coil voltage of 24 VDC with a transient suppressor module.

Product Highlights

This contactor is equipped with screw clamp terminals for load and auxiliary connections, ensuring reliable operation. It meets several international standards, making it suitable for various global applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Catalog Number: LC1D25BD

Technical Specifications

• Voltage Rating: 600 VAC
• Current Rating: 25 A
• Number of Poles: 3
• Coil Voltage: 24 V DC

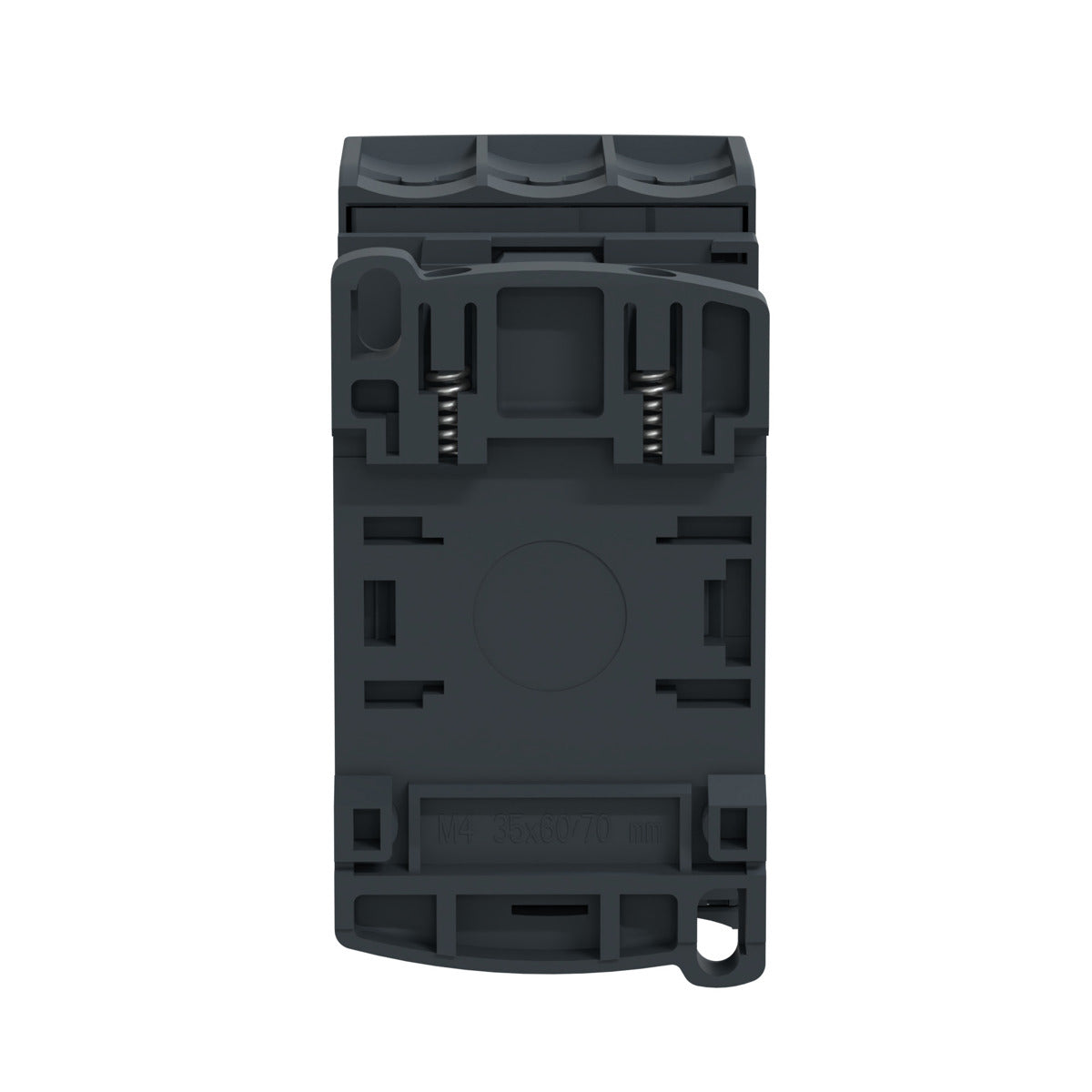

• Mounting Type: DIN Rail or Panel
• Weight: 0.82 lb
• Height: 3.35 inches
• Width: 1.77 inches
• Depth: 3.62 inches
• Certifications: UL, CSA, IEC, CCC, EAC, Marine
• Applications: Motor control; resistive load
• Operating Temperature: -40 to 70 degrees C
• Warranty: 18 months
